Aperçu
Description du produit
Overview

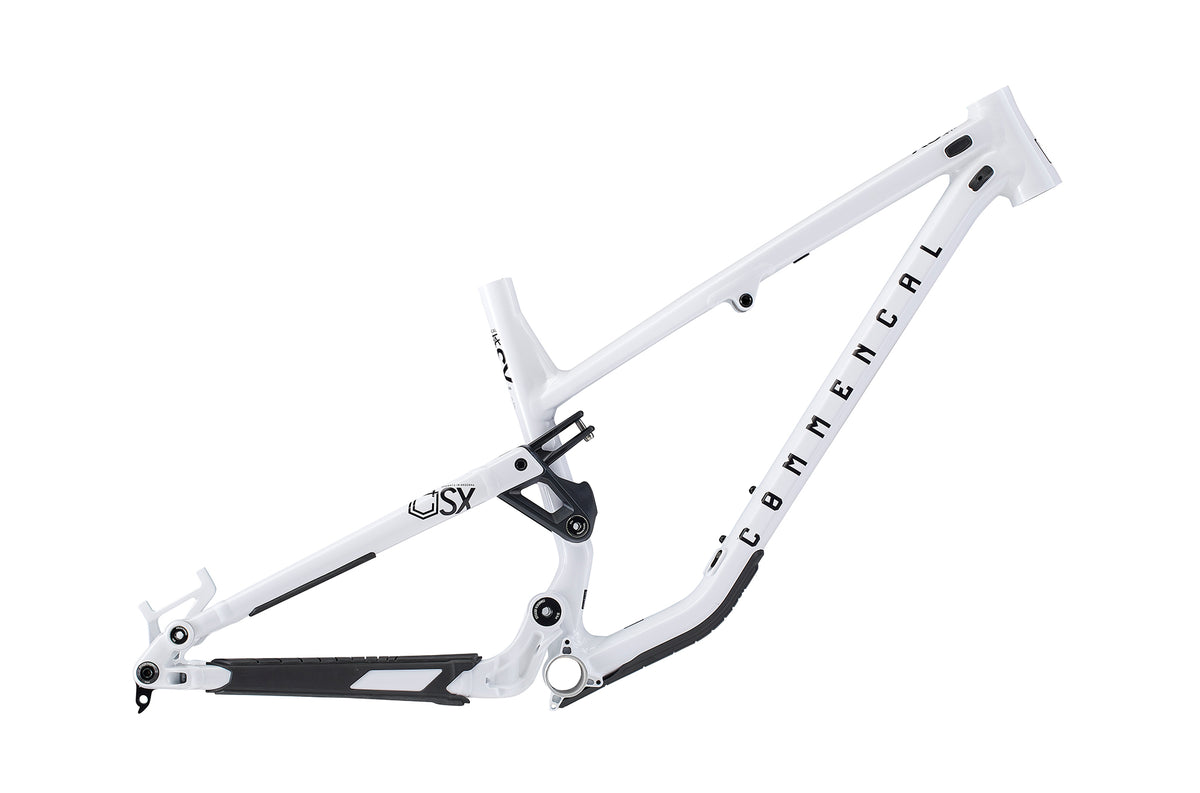

Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
Specs
TECHNICAL INFORMATION
SPECIFICATION
DETAIL
BICYCLE TYPE
Enduro / Freeride
FRAME MATERIAL
AL 6066 T4, T6
FRAME WEIGHT
3,9 kg / 8.59 lb
REAR TRAVEL
160mm
SHOCK LENGTH/STROKE
230x62.5mm
RECOMMENDED SAG
26-30% / 16-19mm
PIGGY BACK SHOCK COMPATIBLE
Yes
SHOCK BUSHINGS
20x10mm / no bushing needed on clevis
RECOMMENDED/MAX. FORK HEIGHT
586mm / 596mm
HEADSET TYPE
ZS44 / ZS56
ICR COMPATIBLE
No
WHEELS SIZE
29’’ - 27.5’’
MAX. REAR TYRE DIMENSION - ETRTO
65mm - Ø584mm
REAR BRAKE MOUNTING TYPE
Postmount 200mm
REAR BRAKE ROTOR MAX. SIZE
220mm
SEATPOST/SEAT CLAMP DIAMETER
34,9mm / 38,5mm
SEATPOST INSERTION MAX.
S : 228mm / M : 268mm / L : 288mm / XL : 308mm
BOTTOM BRACKET TYPE
Press Fit BB 92mm
CHAIN GUIDE
ISCG 05
RECOMMENDED/MAX. CHAINRING TEETH
32T / 34T
CHAIN LINE
55
REAR HUB DIMENSION
148x12mm
REAR AXLE DIMENSION
Maxle standard, 180mm, M12, P1.75mm
UDH HANGER
No
SHOCK ANCHOR ADJUSTMENT
2 positions
Geometry
GEOMETRY
MEASUREMENT
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
78° / 78,4°
78° / 78,4°
78° / 78,4°
78° / 78,4°
3 - HEAD TUBE ANGLE
63,6° / 64°
63,6° / 64°
63,6° / 64°
63,6° / 64°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1233 / 1232
1255 / 1254
1287 / 1286
1314 / 1313
6 - TOP TUBE LENGTH
570 / 569
591 / 590
617 / 616
644 / 643
7 - CHAIN STAY LENGTH
444 / 443
444 / 443
449 / 448
449 / 448
8 - BOTTOM BRACKET HEIGHT
4 / 0.1
4 / 0.1
4 / 0.1
4 / 0.1
9 - FORK LENGTH
586
586
586
586
10 - REACH
436 / 440
456 / 460
481 / 485
506 / 510
11 - STACK
633 / 630
637 / 634
642 / 639
647 / 643
Besoin d'aide pour choisir le bon produit?
Notre équipe de riders et d'experts se fera un plaisir de t'aider.
Specs
Taille
Métrique
Impérial
Voici un tableau des tailles.
Géo
Métrique
Impérial
Géométrie de ce vélo.
Reach
longueur à l'horizontal entre le milieux du BB et le milieux du dessus headtube.
Stack
Hauteur a la vertical entre le BB et le dessus du headtube.
Effective Top Tube
Longueur à l'horizontal entre le milieux du seatube et milieux du dessus du headtube.
Actual Top Tube
Longueur réel du entre le milieux du headtube et le milieux du seat tube.
Standover Height
la hauteur du centre du toptube vs du sol.
Seat Tube Angle
Angle du seat tube.
Seat Tube Length
Longueur du seat tube prise du BB (Bottom Bracket) jusqu'au sommet du seat tube (la mesure est prise parallèlement au seat tube)
Headtube Angle
Angle du headtube.
Headtube
La longueur du headtube.
Chainstay
Longueur entre l'axe de roue arr. et du BB (Bottom Bracket).
Wheelbase
Longueur à l'horizontal entre les deux axes de roues.
BB Height
Hauteur entre le sol et le BB (Bottom Bracket).
BB Drop
Longueur à la vertical entre la hauteur moyenne des axes de roue et la hauteur du BB.
