FRAME

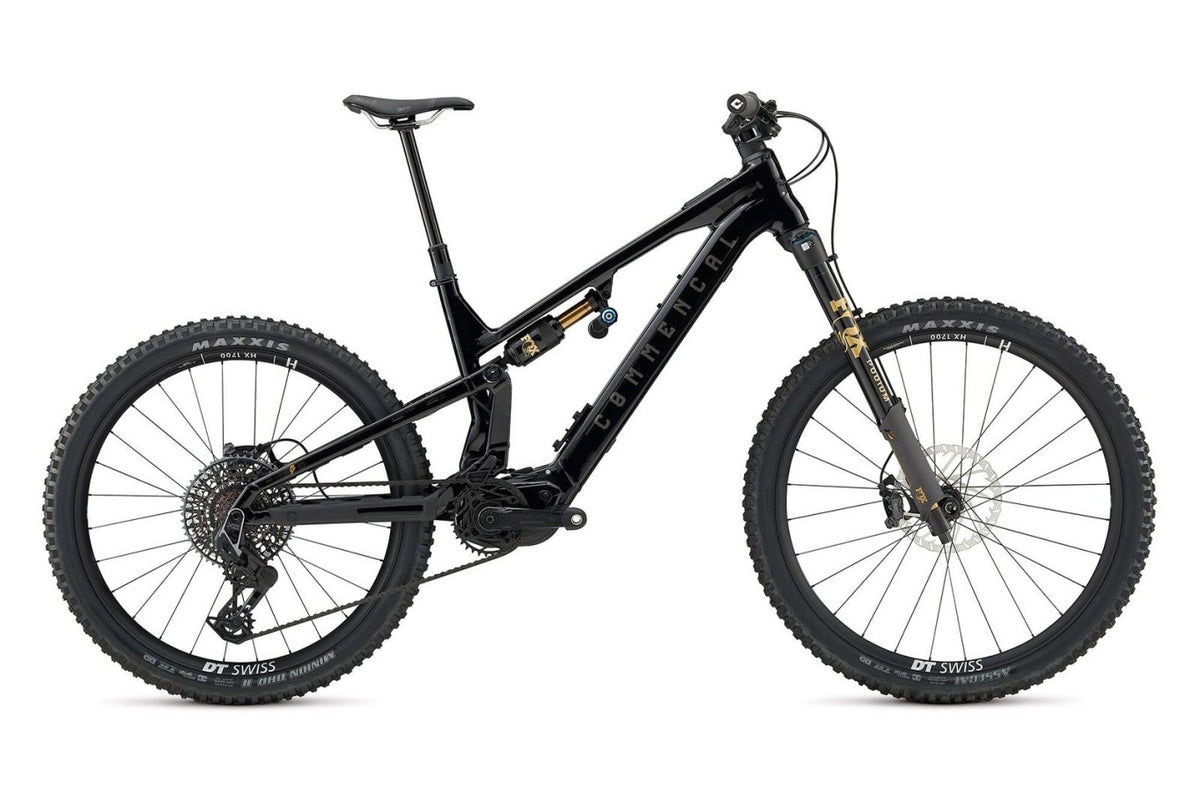

META POWER SX AVINOX, 160 mm travel — 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
MOTOR
AVINOX M2S — 150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation
BATTERY
AVINOX — 600 Wh on S, 800 Wh on M / L / XL, Fully integrated main battery — AVINOX 508w Fast Battery charger
DISPLAY
AVINOX DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system. — Switch: AVINOX BC100, Wireless controller.
SHOCK
FOX Float X2 Factory — 230 x 60 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR
FORK
FOX PODIUM Factory 160 mm — 29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (20 x 110 mm), 44 mm offset
HEADSET
ACROS ZS56 / ZS66 — Alloy cups, stainless steel & sealed bearings
STEM
RIDE ALPHA 40 — 40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL — 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI LONGNECK V2.1 — Soft compound, single clamp, black
BRAKES
SHIMANO XT, 4 pistons — Rotors: GALFER SHARK, 6-bolt, 203 mm
SHIFTERS
SRAM AXS POD — 12s
CHAIN GUIDE
RIDE ALPHA — 32t-34t
REAR DERAILLEUR
SRAM X0 EAGLE T-TYPE — 12s, T-TYPE
CRANKSET
E13 HELIX RACE, 155 mm crank arms — Chainring: SRAM CR T-TYPE, 34t, BCD 104
CHAIN
SRAM X0 EAGLE T-TYPE — 12s, Flat Top
CASSETTE
SRAM X0 EAGLE T-TYPE — 12s, 10-52t
RIMS
DT SWISS HX 1700 — Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
HUBS
DT SWISS 350 Hybrid — Rear: 28h, sealed bearings, 12x148mm, DEG DF, Sram XD - Front: 28h, sealed bearings, 20 x 110 mm
SPOKES/NIPPLES
DT SWISS Hybrid 1 — Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
TYRES
Rear: MAXXIS Minion DHRII - Front: MAXXIS Assegai — Rear: 27.5x2.50WT 3C MaxxGrip / Double Down Casing / TR - Front: 29x2.50WT 3C MaxxGrip / Double Down Casing / TR
SEAT POST
ONE UP V3 — 34.9 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL
SADDLE
WTB SOLANO — 142 x 240 mm, Medium
WEIGHT
25 kg / 55.12 lbs — Minimum weight for M size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED
CRANKBROTHERS Stamp 1
COLOUR
Pure Black — Shiny Finish
ACCESSORIES
RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, FIDLOCK base.
