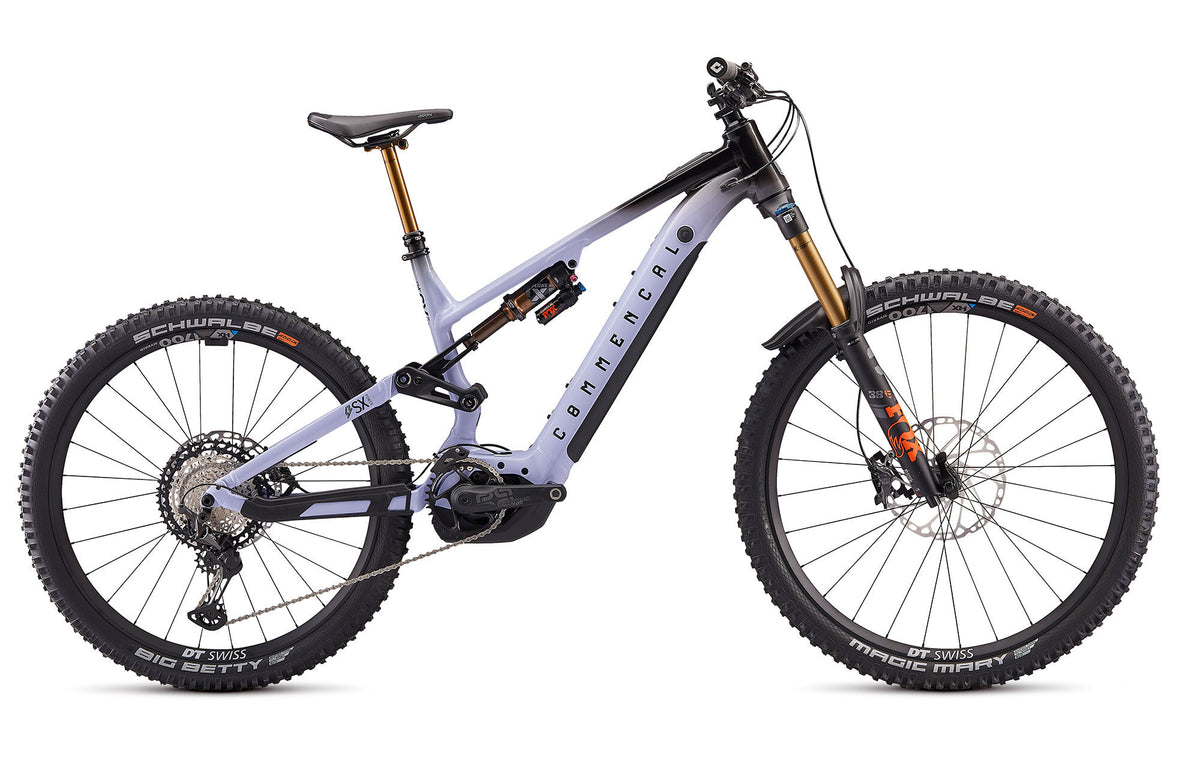

FRAME
META POWER SX V4, 165 mm travel29"-27.5", Alloy 6066, triple butted tubes, T4, T6.
MOTOR
BOSCH Performance Line CXMax. torque: 85N.m, 250W
BATTERY
BOSCH PowerTube 625, 625WhBOSCH 4A Charger, Compact size & lightweightCompatible w/BOSCH PowerMore 250 for extra range
DISPLAY
BOSCH System ControllerBOSCH Mini Remote currently not available in the USA
SHOCK
FOX Float X Factory230 x 65 mm, LSC, LSR, 2-position (open/firm) lever, 0.6 spacer
FORK
FOX 38 Factory E-Bike, 170 mm travel29", Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers
HEADSET
ACROS ZS56 / ZS66Alloy cups, sealed bearings
STEM
RIDE ALPHA 40 EXTERNAL40 mm extension, 31,8 mm
HANDLEBAR
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XLInternal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI Elite MotionSoft pro compound, single clamp, black
BRAKES
SHIMANO XT, 4 pistons, I-Spec EV compatibleRotors: SHIMANO SM-RT66 220 mm, 6-bolt
SHIFTERS
SHIMANO Deore XT12s
CHAIN GUIDE
RIDE ALPHA Upper Guide32-34t
REAR DERAILLEUR
SHIMANO Deore XT12s
CRANKSET
E13 E*Spec Plus BOSCH CX, 160 mm crank armsChainring: E13 E*Spec Plus BOSCH CX, 34t, direct mount
CHAIN
SHIMANO Deore XT12s
CASSETTE
SHIMANO Deore XT12s, 10-51t
RIMS
Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 SplineRear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
HUBS
Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, SHIMANO Micro Spline - Front: 28h, 15 x 110 mm, sealed bearings
SPOKES/NIPPLES
DT SWISS Hybrid 1Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
TYRES
Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic MaryRear: 27.5"x2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy
SEAT POST
Fox Transfer Factory31.6 mm, travel: 125 mm on S, 175 mm on M/L & 200 mm on XL, SHIMANO SL-MT500 remote
SADDLE
FIZIK Terra Aidon X3145 mm width, Kium Mobius rails
WEIGHT
24.2 kg / 53.35 lbsAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PEDALS INCLUDED
RIDE ALPHA CNC
COLOUR
Light Purple / BlackShiny Finish
ACCESSORIES
Fork fender, motor protector, chainstay protector, seatstay protector
