FRAME

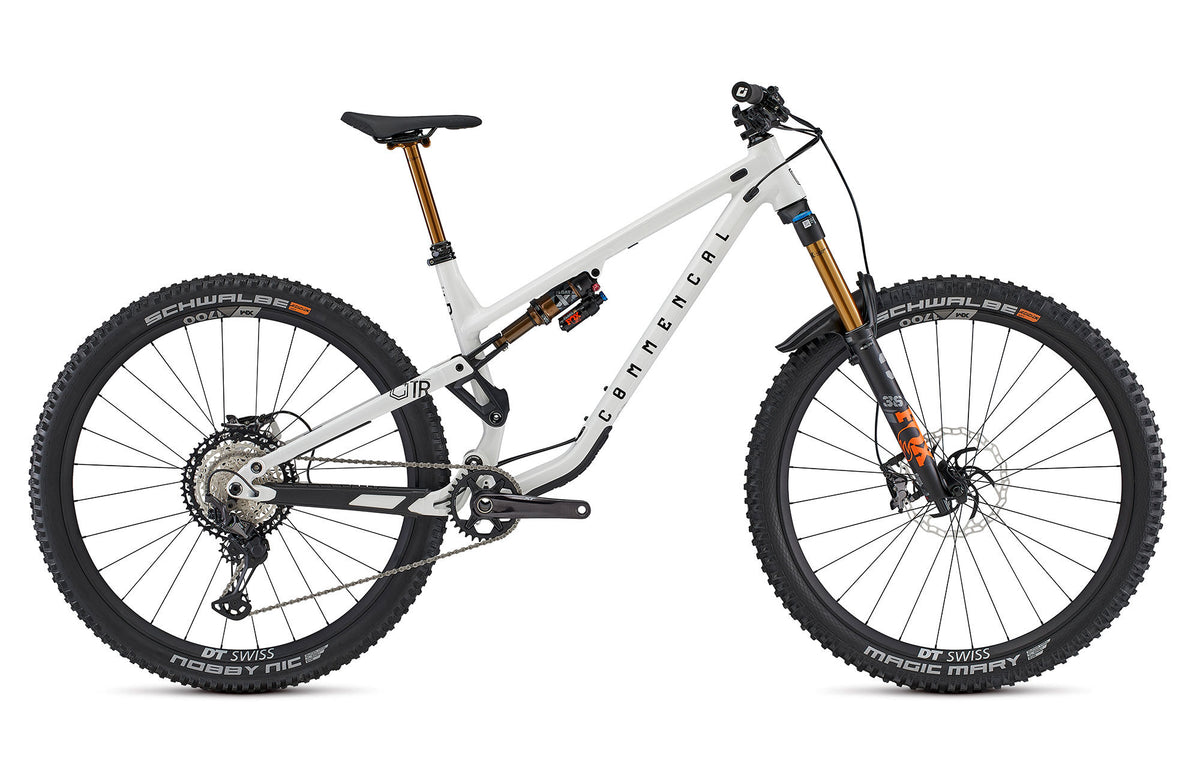

META TR V4, 140 mm travel29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
SHOCK
FOX Float X Factory210 x 55 mm, LSC, LSR, 2-position adjustment
FORK
FOX 36 Factory, 160 mm travel29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 Token
HEADSET
ACROS ZS44 / ZS56Alloy cups, sealed bearings
STEM
RIDE ALPHA Freeride 4040 mm extension, 31,8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI Elite MotionSoft pro compound, single clamp, black
BRAKES
SHIMANO XT, 4 pistons, I-Spec EV compatibleRotors: Galfer Disc Wave 203mm, 6-bolt
REAR DERAILLEUR
SHIMANO XT12s
BOTTOM BRACKET
SHIMANO BBMT800Pressfit
CRANKSET
SHIMANO XT, 170 mm crank arms, BoostChainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
CASSETTE
SHIMANO XT12s, 10-51t
RIMS
DT SWISS XM 170029'', 28h, 30mm inner width
HUBS
Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
SPOKES/NIPPLES
DT SWISS CompetitionStraightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
TYRES
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic MaryRear: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy
SEAT POST
FOX Transfer Factory31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm
SADDLE
FIZIK Terra Alpaca X5145 mm width, S-alloy rails
WEIGHT
15,2 kg / 33.51 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Pure WhiteShiny Finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector, FOX 36 Specific Fender
