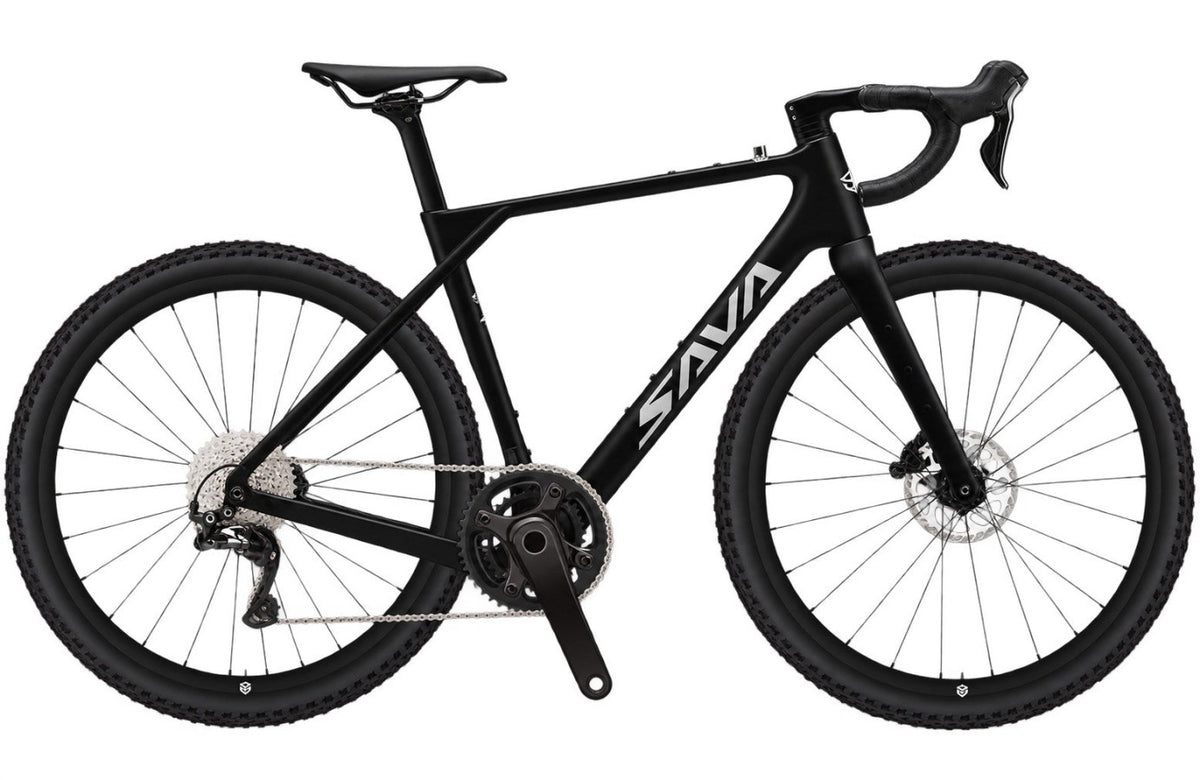

SAVA Voyager G9

The VOYAGER is SAVA's go anywhere carbon gravel platform, built around a 100% T800 carbon fibre frame and fork with 12 mm thru axles, multiple mounting points for bikepacking and a neutral, confidence inspiring handling profile on any surface.

The G9 brings electronic shifting to the Voyager range: Shimano GRX RX825 Di2 1x12 with a 10-51T cassette, GRX RX820 hydraulic disc brakes and SAVA G38 carbon wheels. Lower maintenance and lower weight mean more time riding.

Available in Black, sizes 47 to 55 cm.

Frame	SAVA T800 carbon fibre, 12x142mm thru axle
Fork	SAVA T800 carbon fibre, tapered steerer, 12x100mm thru axle
Shifters	Shimano GRX Di2 ST-RX825 / BL-RX825
Rear derailleur	Shimano GRX Di2 RD-RX827, 12 speed
Crankset	Shimano GRX FC-RX820-1, 1x, 42T
Bottom bracket	BB-T47
Cassette	Shimano CS-M8100-12, 10-51T
Chain	Shimano M8100
Brakes	Shimano GRX BR-RX820 hydraulic disc
Wheels	SAVA G38 carbon
Tires	Continental Terra Speed ProTection 700x40C
Seatpost	SAVA carbon, 31.6mm
Cockpit	SAVA 2 piece: alloy stem, carbon bar
Saddle	Fizik
Sizes	47cm / 49cm / 51cm / 53.5cm / 55cm
Colours	Black

Geometry (mm)	47 cm	49 cm	51 cm	53.5 cm	56 cm	58 cm
Alpha Size	XS	S	M	L	XL	XXL
Stack	534	562	581	609	628	637
Reach	360	369	380	390	400	410
Top Tube Length	512	530	558	576	592	605
Head Tube Angle	70.3°	70.3°	70.3°	70.3°	70.3°	70.3°
Seat Tube Length	470	490	510	535	560	580
Seat Tube Angle	74°	74°	73°	73°	73°	73°
BB Drop	75	75	75	75	75	75
Stand Over Height	770	792	811	838	852	870
Front Centre	582	601	618	638	655	664
Chainstay Length	435	435	435	435	435	435
Fork Offset	50	50	50	50	50	50
Trail (40mm tire)	74.7	74.7	74.7	74.7	74.7	74.7
Tire Room	62	62	62	62	62	62
Max Tire Size	45	45	45	45	45	45
Wheelbase	1001	1020	1038	1058	1074	1088
Handlebar Width	380	380	400	400	420	420
Stem Length	80	80	90	100	100	110
Crank Length	170	170	170	170	175	175
