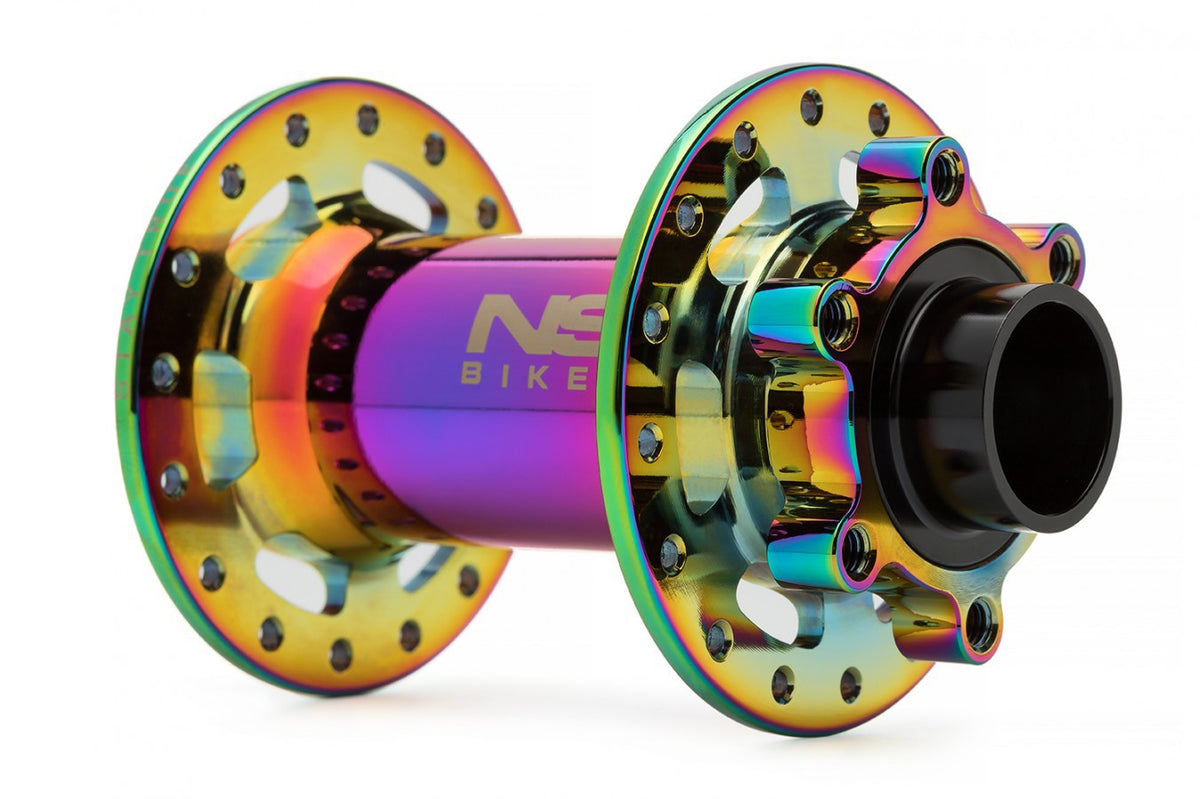

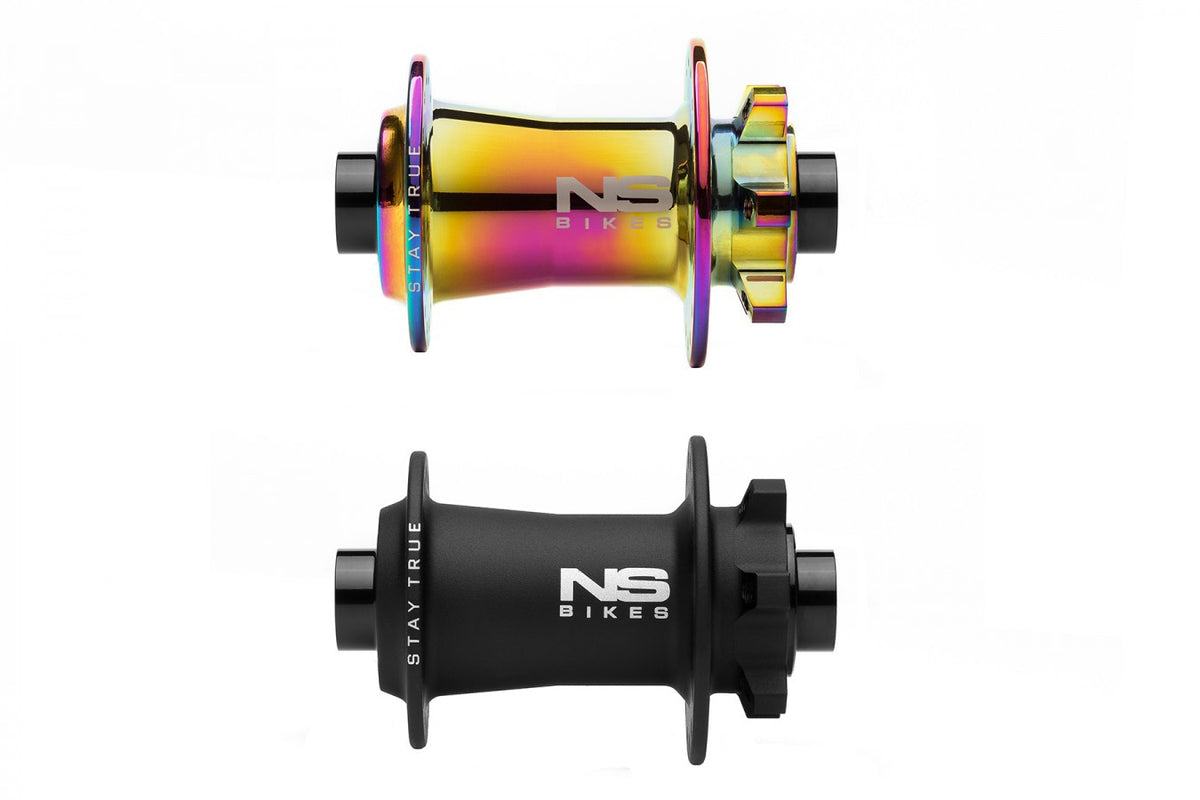

ROTARY 15/15Boost
The Rotary 15/Rotary 15 boost front hubs run on smooth sealed bearings. Disc brake compatible. Lightweight & strong AL7075-T6 hardware guarantee that your hub won't fail & will run smoothly for years. From riders for riders. Black hardware makes it invisible to the radar.
ROTARY 20
This 20mm front hub is designed for suspension fork users. No gimmicks. Low flanges, lightweight & strong AL7075-T6 hardware guarantee that your hub won't fail & will run smoothly. From riders for riders. Black hardware makes it invisible to the radar.
ROTARY 20 Boost
The Rotary 20mm Boost front hubs run on smooth sealed bearings. Disc brake compatible. Lightweight & strong AL7075-T6 hardware guarantee that your hubs won't fail & will run smoothly for years. From riders for riders. Black hardware makes them invisible to the radar.
Specs
Rotary 15
material: AL6061-T6 body, AL7075-T6 hardware
compatibility: compatible with 15x100mm forks
bearings: 2x #6902 sealed bearings
disc brake mount: IS (International Standard / 6-bolts)
spoke count: available in 32h version only
weight: 178 grams
Rotary 15 boost
material: AL6061-T6 body, AL7075-T6 hardware
compatibility: compatible with BOOST 15x110mm forks<
bearings: 2x #6902 sealed bearings
disc brake mount: IS (International Standard / 6-bolts)
spoke count: available in 32h version only
weight: 175 grams
ROTARY 20
Material: AL6061-T6 body, AL7075-T6 axle & cones
O.L.D: 110mm
Compatibility: compatible with NON BOOST 20x110mm forks
Bearings: 2x #6804 sealed bearings
Rotor mount: IS (International Standard / 6-bolts)
Spoke count: in 32h version only
Weight: ~195g
***Conversion kit 20mm to 15mm (110x20 to 100x15) available separately as an upgrade for 110x20mm (NON BOOST) front hub***
***Not compatible with NS replacement parts prior 2018***
ROTARY 20 Boost
Material: AL6061-T6 body, AL7075-T6 axle & cones
O.L.D: 110mm
Compatibility: compatible with Boost DH 20x110mm forks
Body: wider flanges and disk brake mount position
Bearings: 2x #6804 sealed bearings
Rotor mount: disc brake mount IS (International Standard / 6-bolts)
Spoke count: available in 32h version only
Weight: 178g
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
