Overview

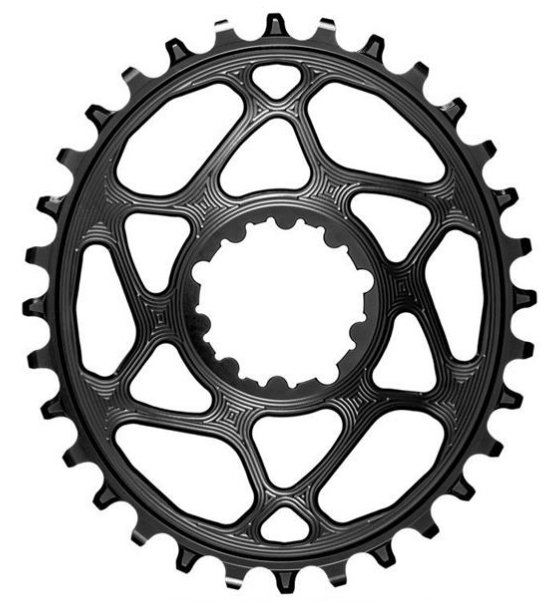

This particular chainring will ONLY work with CN-M9100, 8100 & 7100 Shimano Hyperglide+ 12spd chain due to different thickness & shape of the teeth. The Original one and only absoluteBLACK premium Sram compatible Direct mount BOOST148 1X Oval narrow wide chainrings are designed for GXP, DUB and Long BB30 spindle cranks. Chainring is dedicated for Boost148 bikes. 3mm offset.
Difference between Boost148 and non-boost chainrings is in the offset/dish of the chainring itself only. You would use same crank in both boost and non-boost bikes, but chainring offset has to be different to accommodate chainstay clearance. Boost chainrings have only 3mm offset while non-boost ones 6mm.
Advantages of our special Direct mount chainrings:
- Finest design to provide excellent weight to strength ratio
- One of a kind special oval shape (Patent Pending)
- Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
- They save weight because they don't need the spider and chainring bolts.
- The ability of installation of a smaller ring sizes that can't be mounted on regular spider.
- Superb quality and great look.
- You will ride faster using ovals. If you keep using round ring then others will get quicker.
- You will not "feel" the oval shape at all
- Reduces stress on knees
Specs
Size (Mass +/-1g): 30T (55g), 32T (59g), 34 (66g)
Color: Black,
Compatibility: SRAM XX1, XX1 Eagle, X01, X01 Eagle, GX Eagle, NX Eagle, SX Eagle, X1, X0, X9, X7, S2210, S1400, Descendant, Stylo, Truvativ AKA and all DUB cranks.Cane Creek eeWings. GXP and Long spindle BB30. BOOST148 bikes. Works ONLY with 12spd Shimano Hyperglide+ chain (HG+)
Material: cnc machined 7075 Txxx Aluminum. Long-lasting construction
Finish: type II anodizing
Chainline: 52mm BOOST148 specific chainline. 3mm offset
Ovality: Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
30T: 134mm ; 32T: 143mm ; 34T: 151mm
Difference between Boost148 and non-boost chainrings is in the offset/dish of the chainring itself only. You would use same crank in both boost and non-boost bikes, but chainring offset has to be different to accommodate chainstay clearance. Boost chainrings have only 3mm offset while non-boost ones 6mm.
