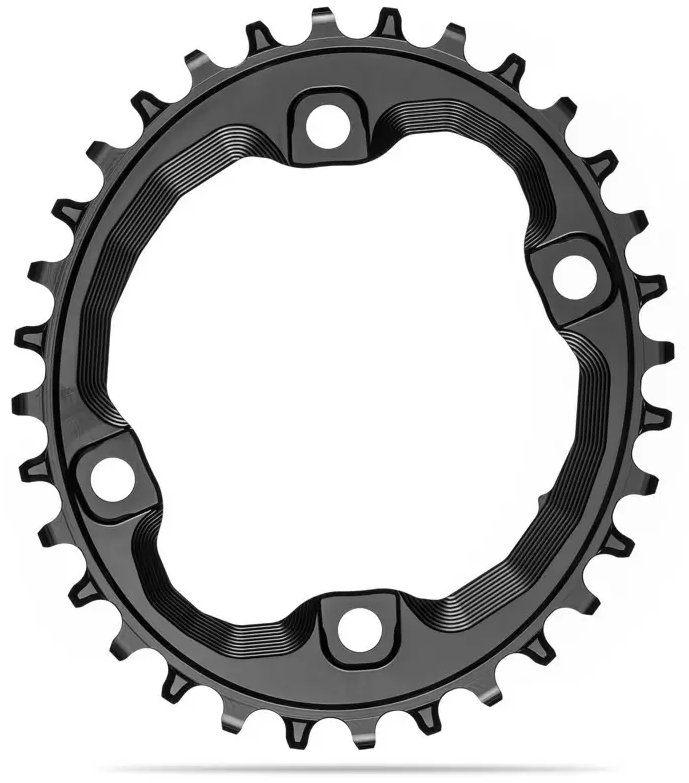

Absolute Black OVAL XT M8000/MT700 chainring for Shimano HG+ 12spd
SKU : OVXT8000SH/32BK
on $149+ orders
Tested & approved
by our riders
so you can ride asap
Share on :
This particular chainring will ONLY work with CN-M9100, 8100 & 7100 12spd Hyperglide+ chain due to different thickness & shape of the teeth. Our Premium 1X Oval 96BCD narrow wide chainring is designed for Shimano XT M8000, SLX M7000 and MT700 1x or 2x cranks Only. These chainrings fit Boost and non-boost bikes as correct offset is realized by the crank spider itself, not chainring. Bolts included.
Size (Mass +/-1g): 30T (44g), 32T (50g), 34T (60g), 36T (69g)
Compatibility: Fits Shimano XT M8000, SLX M7000 and MT700 cranksets 1X and 2X only. Boost and non-boost. ONLY Shimano 12spd HG+ chain
Material: cnc machined 7075 Txxx Aluminum. Long-lasting construction! Type II anodizing
Chainline: perfect 49mmMounting holes: 4 x 96mm BCD Asymmetrical design. Use stock boltsOvality: Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending
All 4 sizes have built-in standoffs to provide the ideal 1X chainline.
IMPORTANT - Use provided bolts to mount the chainring
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth): 30T: 134mm ; 32T: 143mm ; 34T: 151mm
Advantages of our special Direct mount chainrings:
- Finest design to provide excellent weight to strength ratio
- One of a kind special oval shape (Patent Pending)
- Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
- They save weight because they don't need the spider and chainring bolts.
- The ability of installation of a smaller ring sizes that can't be mounted on regular spider.
- Superb quality and great look.
- You will ride faster using ovals. If you keep using round ring then others will get quicker.
- You will not "feel" the oval shape at all
- Reduces stress on knees
Size (Mass +/-1g): 30T (58g), 32T (62g), 34 (69g)
Compatibility: RaceFace Cinch system cranks. RF Next SL G4, Next SL, Next R, RF SIXC, RF Turbine, RF Atlas, AEFFECT, RIDE CINCH cranks. Shimano 12spd Hyperglide+ chain only
Material: cnc machined 7075 Txxx Aluminum. Long-lasting construction
Finish: type II anodizing
Chainline: 52mm, 3mm offset
Ovality: Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
30T: 134mm ; 32T: 143mm ; 34T: 151mm
Difference between Boost148 and non-boost chainrings is in the offset/dish of the chainring itself only. You would use same crank in both boost and non-boost bikes, but chainring offset has to be different to accommodate chainstay clearance. Boost chainrings have only 3mm offset while non-boost ones 6mm.
