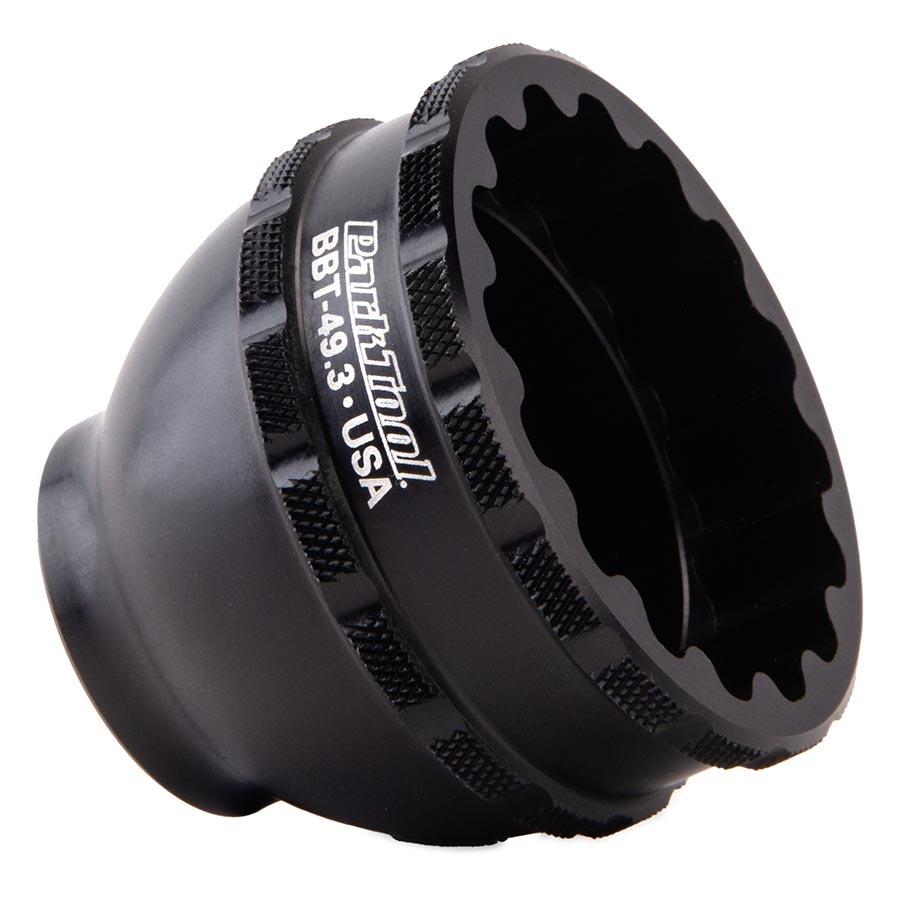

Park Tool, BBT-49.3, Bottom Bracket Tool, 39mm/16 notch
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description
Bottom Bracket Tool — 16-Notch
Precision CNC-machined aluminum tool for the installation and removal of select threaded bottom brackets with 16-notch tool fittings, including Shimano® XTR® BB93, Dura-Ace® BB9000, and Token® bottom brackets.
Features integrated threads for full compatibility with the Park Tool BBT-RS Bottom Bracket Tool Retaining System (sold separately). The BBT-RS uses an adjustable spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage.
Fits 16-notch threaded bottom bracket tool fittings with a major diameter (outside of notches) of 39-40 mm and a minor diameter (inside of notches) of 37.6 mm.
Also fits chainring lockrings on Shimano® STEPS square spindle e-bike systems including:
Attributes
Bottom Bracket Type
39mm/16 notch
