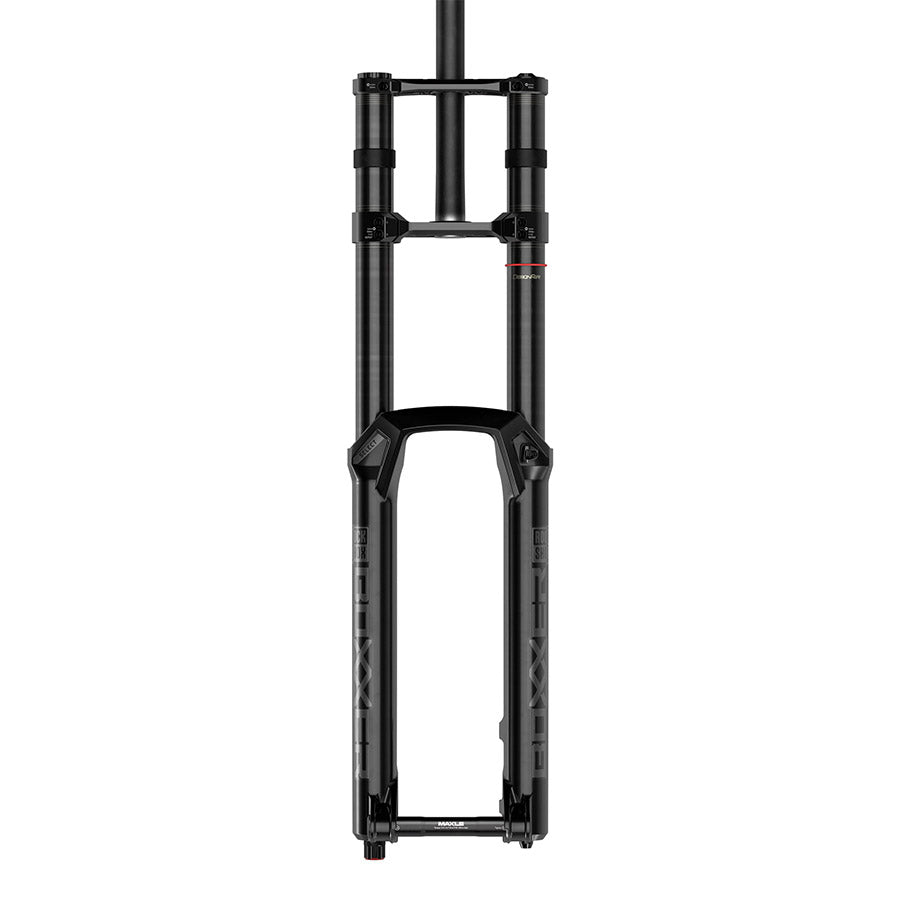

27.5'', DebonAir+, 200mm, 1-1/8'', 20x110mm Boost TA, Rake: 48mm, Black
27.5'', DebonAir+, 200mm, 1-1/8'', 20x110mm Boost TA, Rake: 44mm, Black
29'', Linear XL, 200mm, 1-1/8'', 20x110mm Boost TA, Rake: 52mm, Black
29'', Linear XL, 200mm, 1-1/8'', 20x110mm Boost TA, Rake: 48mm, Black
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description
LinearXL air spring delivers a consistent and predictable ride feel backed by a jounce bottom-out bumper for end-stroke control
Delta RC damper with easy-to-adjust Compression and independent Rebound features intuitive controls and virtually silent performance, keeping riders focused on the trail
Low-grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
SRAM Model ID: FS-BXR-SEL-D2
Attributes
Brake Type
Disc
Damping
Charger 3.2
Damping Adjustments
Extl begin stroke rebnd, low speed comp
Crown Material
Aluminum
Maximum Rotor Size
220mm
Maximum Tire Width
81mm
Primary Color
Black
Spring Adjustments
Air pressure, Bottomless tokens
Steerer Tube
1-1/8''
Steerer Tube Material
Aluminum
Lower Tubes Material
Magnesium
Stanchions Material
Aluminum
Travel
200mm
Stanchions Diameter
38mm
Axle/Hub spacing
20x110mm Boost TA
e-Bike approved
Yes
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
