FRAME

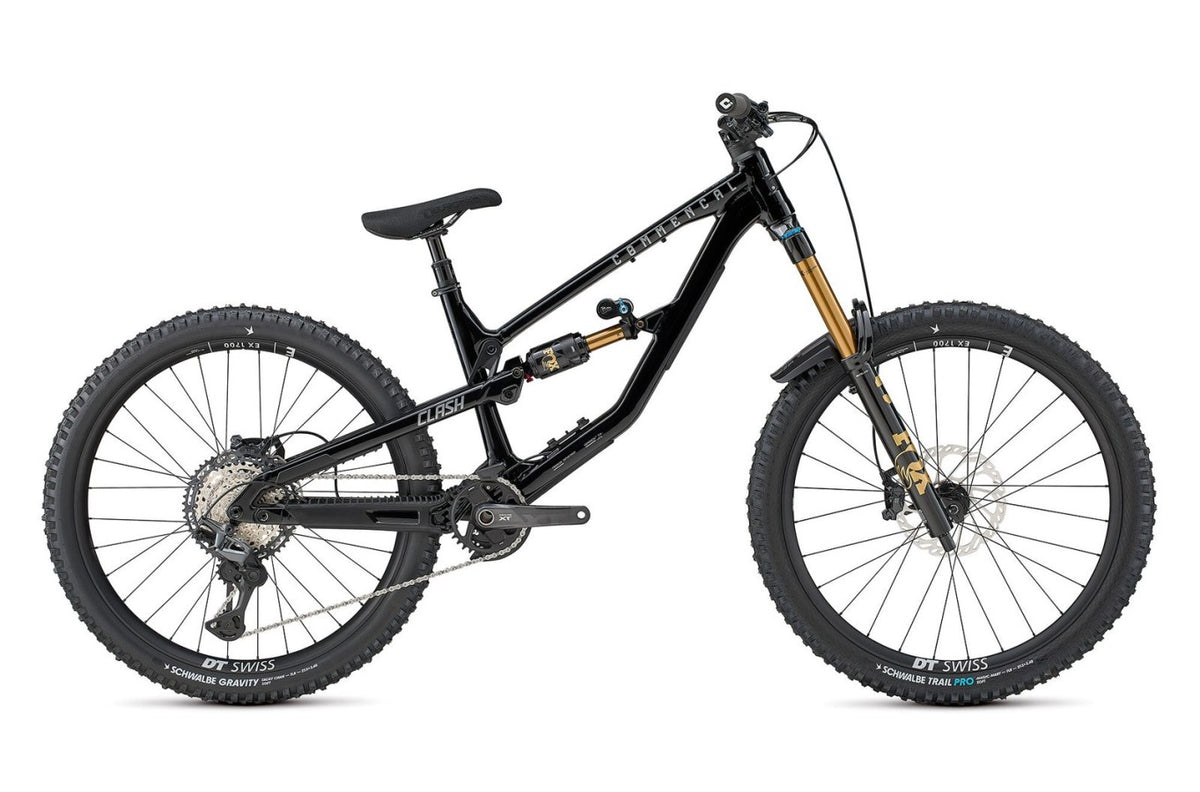

CLASH V3, 170 mm travel — 27.5'', Alloy 6066, triple butted tubes, T4, T6
SHOCK
FOX Float X2 Factory — 230 x 65 mm, 2-pos adjustment, HSC, LSC, HSR, LSR
FORK
FOX 38 Factory, 180 mm — 27.5'', Grip X2, HSC, LSC, HSR, LSR, Boost (15 x 110), 2 Tokens
HEADSET
ACROS ZS56 / ZS56 — Alloy cups, sealed bearings
STEM
RIDE ALPHA 40 — 40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL — 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL
GRIPS
ODI Longneck V2.1 — Single clamp, black
BRAKES
SHIMANO XT, 4 pistons, resin pads — Rotors : SHIMANO RT 6B750 200 mm, 6-bolts
SHIFTERS
SHIMANO XT — 12s
REAR DERAILLEUR
SHIMANO XT — 12s
BOTTOM BRACKET
SHIMANO MT801 — BSA 73
CRANKSET
SHIMANO XT, 165 mm crank arms — Chainring : SHIMANO XT, 34t
CASSETTE
SHIMANO XT — 12s, 10-51t
RIMS
DT SWISS EX1700 Classic — 27.5'', 32h, 30 mm inner width
HUBS
DT SWISS 350 — Rear : 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline, DEG DF - Front : 32h, sealed bearings, 15 x 110 mm
SPOKES/NIPPLES
DT SWISS Competition — J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
TYRES
Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary — Rear : 27.5x2.50, Gravity, Soft, Tubeless ready - Front : 27.5x2.50, Trail Pro, Soft, Tubeless ready
SEAT POST
ONE UP Dropper V3 — 34.9 mm, 150 mm on S, 180 mm on M, 210 mm on L
SADDLE
BURGTEC The Cloud Boost — Alloy rails, Black
WEIGHT
17,5 kg / 38.58 lb — Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Pure Black — Shiny Finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork mud guard, FIDLOCK base
