Overview
Product Description
Overview

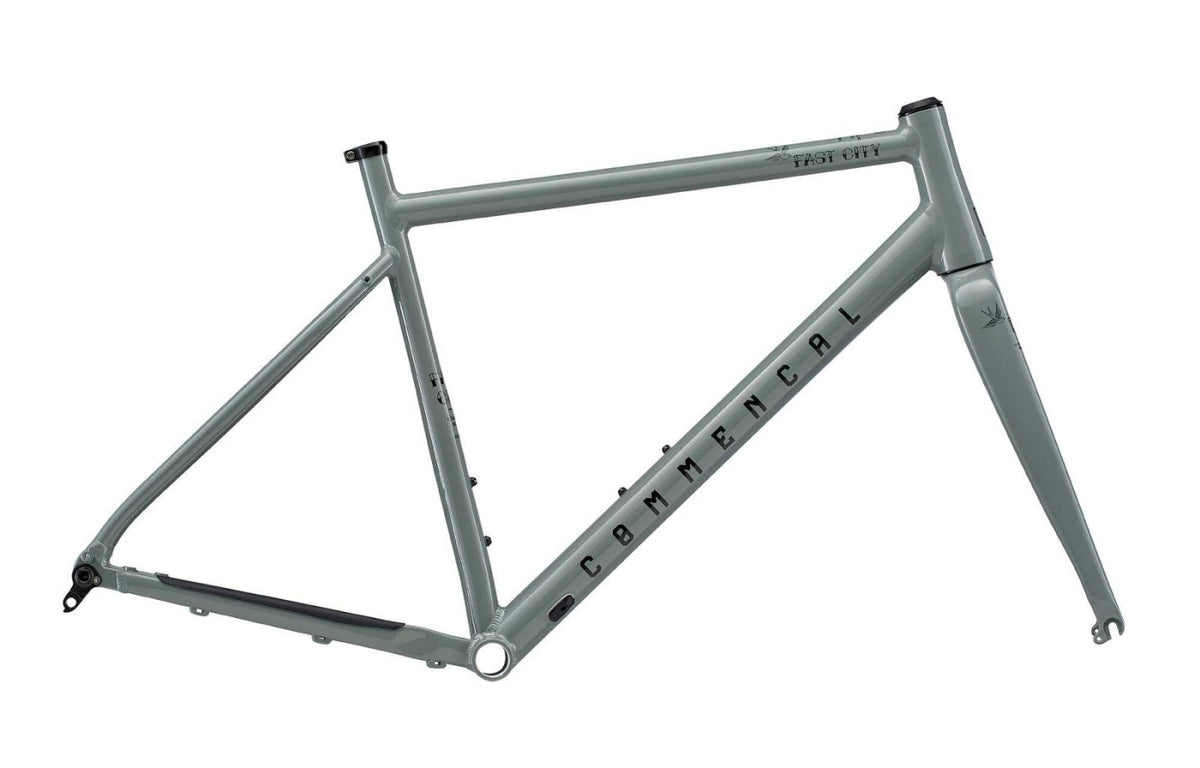

At the crossroads of mountain biking and road riding, the FCB is your everyday companion. Whether commuting to work or venturing out on more active all-day excursions, a whole state of mind.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
Specs
TECHNICAL INFORMATION
SPECIFICATION
DETAIL
BICYCLE TYPE
City
FRAME MATERIAL
AL 6061 T4, T6
FRAME WEIGHT
NC
RECOMMENDED/MAX. FORK HEIGHT
410mm
HEADSET TYPE
ZS44 / ZS56
ICR COMPATIBLE
No
WHEELS SIZE
700C
MAX. TYRE DIMENSION - ETRTO
47mm - Ø622mm
REAR BRAKE MOUNTING TYPE
Flatmount 160mm
REAR BRAKE ROTOR MAX. SIZE
160mm
SEATPOST/SEAT CLAMP DIAMETER
27,2mm - 30,6mm
SEATPOST INSERTION MAX.
S : 300mm / M : 340mm / L : 360mm / XL : 386mm
BOTTOM BRACKET TYPE
BSA 68mm
RECOMMENDED/MAX. CHAINRING TEETH
40T / 42T
CHAIN LINE
47,5
REAR HUB DIMENSION
142x12mm
REAR AXLE DIMENSION
Maxle standard, 170mm, M12, P1.75mm
UDH HANGER
No
Geometry
GEOMETRY
MEASUREMENT
S
M
L
XL
1 - SEAT TUBE LENGTH
510
530
550
570
2 - SEAT TUBE ANGLE
73,5°
73,5°
73,5°
73,5°
3 - HEAD TUBE ANGLE
71,5°
71,5°
71,5°
71,5°
4 - HEAD TUBE LENGTH
160
165
170
175
5 - WHEELBASE
1010
1036
1066
1101
6 - TOP TUBE LENGTH
559
579
599
634
7 - CHAIN STAY LENGTH
425
425
425
425
8 - BOTTOM BRACKET HEIGHT
-65
-65
-65
-65
9 - FORK LENGTH
400
400
400
400
10 - FORK OFFSET
45
45
45
45
11 - REACH
386
405
423
457
12 - STACK
584
589
593
598
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
