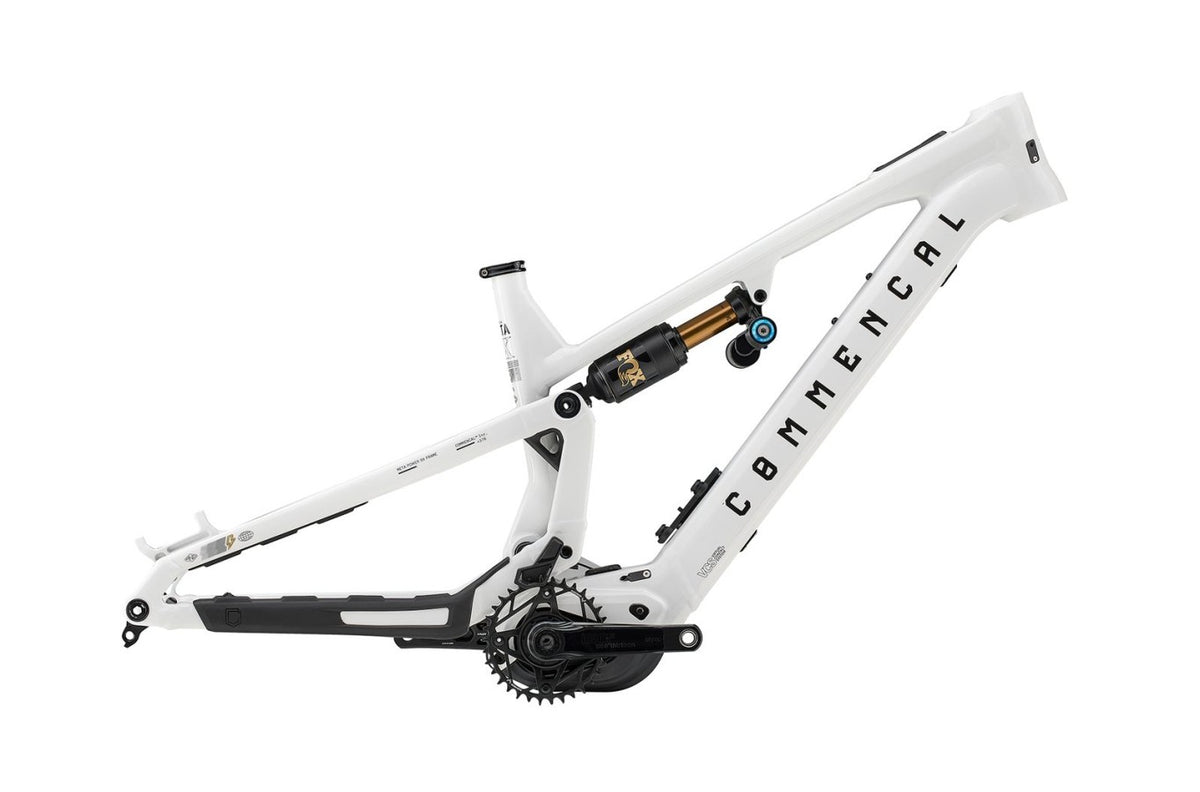

COMMENCAL FRAME META POWER SX AVINOX PURE WHITE 2027
SKU : VT6MSXPWAXUS2S
$6,080.00
Stock
Size - Bikes
S
M
L
XL
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description
Overview
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
Specs
TECHNICAL INFORMATION
SPECIFICATION
DETAIL
BICYCLE TYPE
E-bike - Enduro / Freeride
FRAME MATERIAL
AL 6066 T6
FRAME WEIGHT
4,795 kg / 10,57 lb
REAR TRAVEL
160mm
SHOCK LENGTH/STROKE
230x60mm
RECOMMENDED SAG
29-32% / 17,5-19mm
PIGGY BACK SHOCK COMPATIBLE
Yes
SHOCK BUSHINGS
20x10mm / no bushing needed on clevis
RECOMMENDED/MAX. FORK HEIGHT
576mm / 586mm
HEADSET TYPE
ZS56 / ZS66
ICR COMPATIBLE
Yes
WHEELS SIZE
29’’ - 27.5’’
MAX. REAR TYRE DIMENSION - ETRTO
65mm - Ø584mm
REAR BRAKE MOUNTING TYPE
Postmount 200mm
REAR BRAKE ROTOR MAX. SIZE
223mm
SEATPOST/SEAT CLAMP DIAMETER
34,9mm / 38,5mm
SEATPOST INSERTION MAX.
S : 180mm / M : 220mm / L : 240mm / XL : 260mm
MOTOR CRANKARMS INTERFACE
AVINOX
CHAIN GUIDE
Custom upper guide
RECOMMENDED/MAX. CHAINRING TEETH
34T / 36T
CHAIN LINE
55
REAR HUB DIMENSION
148x12mm
REAR AXLE DIMENSION
UDH standard, 180mm, M12, P1.0mm
UDH HANGER
yes
Geometry
GEOMETRY
MEASUREMENT
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,9°
77,9°
77,9°
77,9°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
130
134,5
140
140
5 - WHEELBASE
1236
1258
1290,4
1315,4
6 - TOP TUBE LENGTH
576,6
597,7
624,1
649,1
7 - CHAIN STAY LENGTH
445
445
450
450
8 - BOTTOM BRACKET HEIGHT
0
0
0
0
9 - FORK LENGTH
576
576
576
576
10 - FORK OFFSET
44
44
44
44
11 - REACH
440
460
485
510
12 - STACK
638,3
642,3
647,3
647,3
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
