Overview
Product Description
Overview

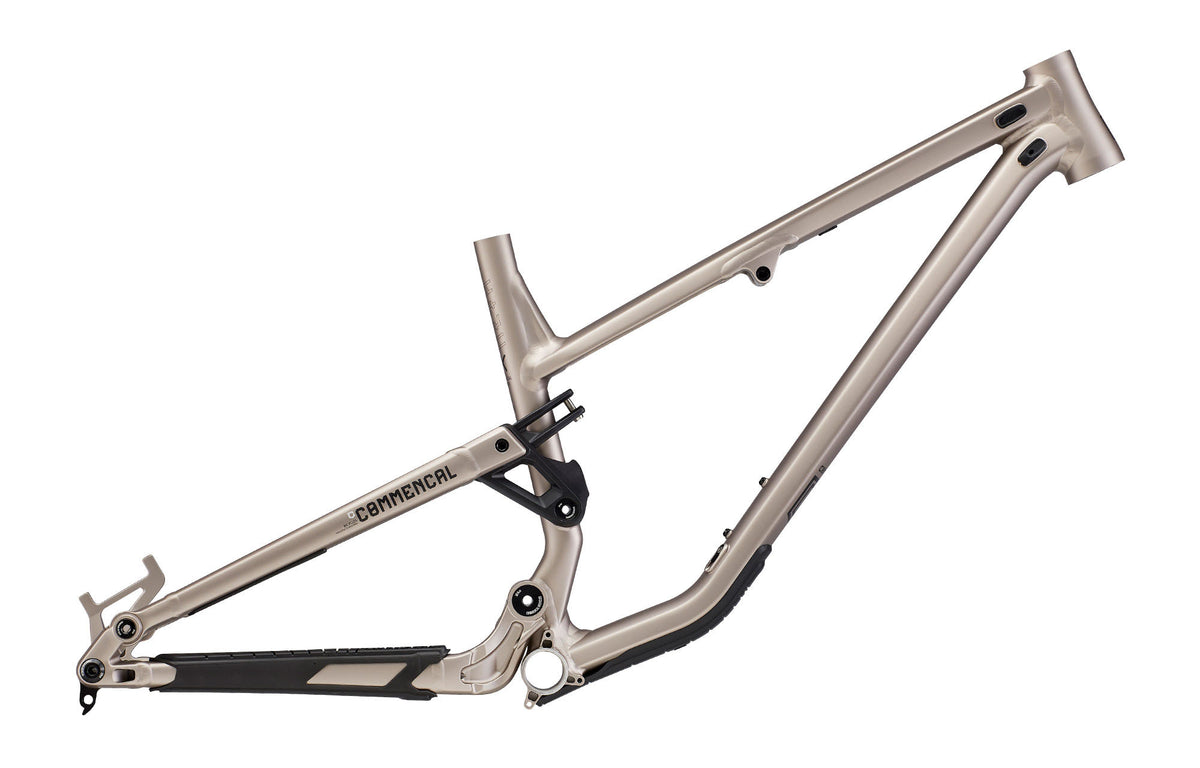

Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
Specs
TECHNICAL INFORMATION
SPECIFICATION
DETAIL
BICYCLE TYPE
Enduro / Freeride
FRAME MATERIAL
AL 6066 T4, T6
FRAME WEIGHT
3,9 kg / 8.59 lb
REAR TRAVEL
160mm
SHOCK LENGTH/STROKE
230x62.5mm
RECOMMENDED SAG
26-30% / 16-19mm
PIGGY BACK SHOCK COMPATIBLE
Yes
SHOCK BUSHINGS
20x10mm / no bushing needed on clevis
RECOMMENDED/MAX. FORK HEIGHT
586mm / 596mm
HEADSET TYPE
ZS44 / ZS56
ICR COMPATIBLE
No
WHEELS SIZE
29’’ - 27.5’’
MAX. REAR TYRE DIMENSION - ETRTO
65mm - Ø584mm
REAR BRAKE MOUNTING TYPE
Postmount 200mm
REAR BRAKE ROTOR MAX. SIZE
220mm
SEATPOST/SEAT CLAMP DIAMETER
34,9mm / 38,5mm
SEATPOST INSERTION MAX.
S : 228mm / M : 268mm / L : 288mm / XL : 308mm
BOTTOM BRACKET TYPE
Press Fit BB 92mm
CHAIN GUIDE
ISCG 05
RECOMMENDED/MAX. CHAINRING TEETH
32T / 34T
CHAIN LINE
55
REAR HUB DIMENSION
148x12mm
REAR AXLE DIMENSION
Maxle standard, 180mm, M12, P1.75mm
UDH HANGER
No
SHOCK ANCHOR ADJUSTMENT
2 positions
Geometry
GEOMETRY
MEASUREMENT
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
78° / 78,4°
78° / 78,4°
78° / 78,4°
78° / 78,4°
3 - HEAD TUBE ANGLE
63,6° / 64°
63,6° / 64°
63,6° / 64°
63,6° / 64°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1233 / 1232
1255 / 1254
1287 / 1286
1314 / 1313
6 - TOP TUBE LENGTH
570 / 569
591 / 590
617 / 616
644 / 643
7 - CHAIN STAY LENGTH
444 / 443
444 / 443
449 / 448
449 / 448
8 - BOTTOM BRACKET HEIGHT
4 / 0.1
4 / 0.1
4 / 0.1
4 / 0.1
9 - FORK LENGTH
586
586
586
586
10 - REACH
436 / 440
456 / 460
481 / 485
506 / 510
11 - STACK
633 / 630
637 / 634
642 / 639
647 / 643
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
