Overview
Product Description
Overview

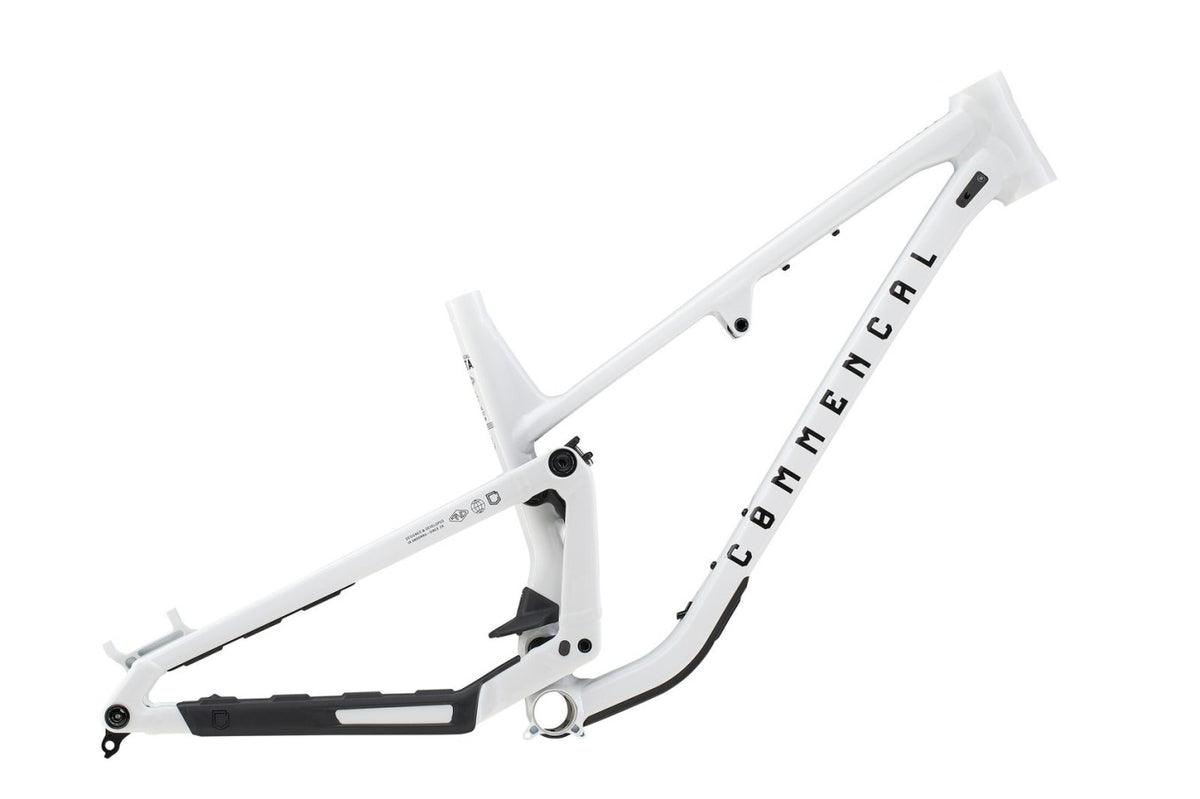

Our META V5 and META SX V5 share the same playing field but have their own style and behaviour. Whether racing or adventuring, the META V5 loves long rides and wild trails. The META SX V5 prefers the slope, jumps or secret trail features, and the bike park. Their common denominator: Enduro
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
Specs
TECHNICAL INFORMATION
SPECIFICATION
DETAIL
BICYCLE TYPE
Enduro / All Mountain
FRAME MATERIAL
AL 6066 T4, T6
FRAME WEIGHT
4,06 kg / 8,95 lb
REAR TRAVEL
150mm
SHOCK LENGTH/STROKE
210x55mm
RECOMMENDED SAG
27-30% / 15-19mm
PIGGY BACK SHOCK COMPATIBLE
Yes
SHOCK BUSHINGS
20x10mm / no bushing needed on clevis
RECOMMENDED/MAX. FORK HEIGHT
571mm / 586mm
HEADSET TYPE
ZS56 / ZS56
ICR COMPATIBLE
Yes
WHEELS SIZE
29’’ - 29’’
MAX. REAR TYRE DIMENSION - ETRTO
65mm - Ø622mm
REAR BRAKE MOUNTING TYPE
Postmount 200mm
REAR BRAKE ROTOR MAX. SIZE
223mm
SEATPOST/SEAT CLAMP DIAMETER
34,9mm / 38,5mm
SEATPOST INSERTION MAX.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
BOTTOM BRACKET TYPE
Press Fit BB 92mm
CHAIN GUIDE
ISCG 05 lower - Custom upper guide
RECOMMENDED/MAX. CHAINRING TEETH
32T / 34T
CHAIN LINE
55
REAR HUB DIMENSION
148x12mm
REAR AXLE DIMENSION
UDH standard, 180mm, M12, P1.0mm
UDH HANGER
Yes
SHOCK ANCHOR ADJUSTMENT
2 positions
Geometry
GEOMETRY
MEASUREMENT
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,7° / 78,2°
77,7° / 78,2°
77,7° / 78,2°
77,7° / 78,2°
3 - HEAD TUBE ANGLE
64,1° / 64,5°
64,1° / 64,5°
64,1° / 64,5°
64,1° / 64,5°
4 - HEAD TUBE LENGTH
120
125
130
135
5 - WHEELBASE
1215 / 1214
1237 / 1236
1271 / 1270
1293 / 1293
6 - TOP TUBE LENGTH
572,9 / 571,6
593,9 / 592,6
614,8 / 613,5
635,8 / 634,5
7 - CHAIN STAY LENGTH
436,8 / 435
436,8 / 435
441,8 / 440
441,8 / 440
8 - BOTTOM BRACKET HEIGHT
-25,7 / -20
-25,8 / -20
-25,8 / -20
-25,9 / -20
9 - FORK LENGTH
571
571
571
571
10 - REACH
435,4 / 440
455,4 / 460
475,5 / 480
495,4 / 500
11 - STACK
626,3 / 628,8
630,8 / 633,3
635,4 / 637,8
639,9 / 642,3
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
