Commencal

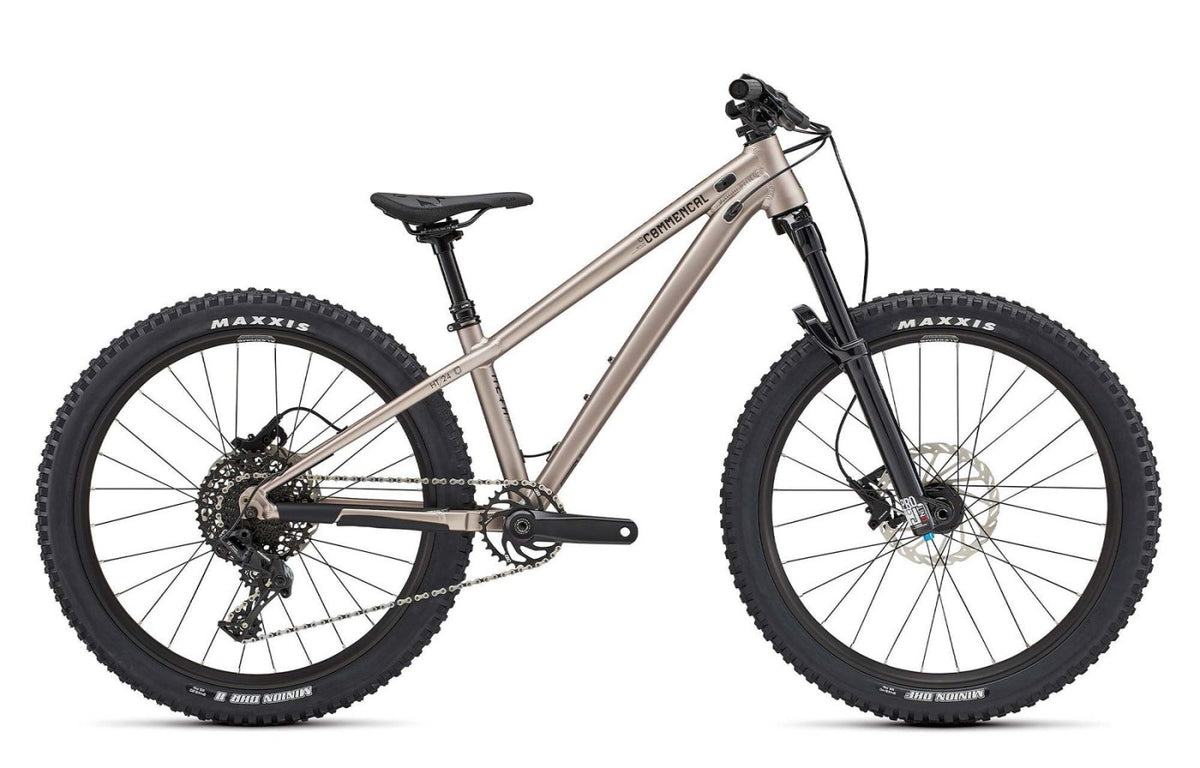

COMMENCAL META HT 24 CHAMPAGNE

SKU : 22METAHT2424

$1,950.00

Stock

Free & Fast Shipping

get it now

Tested & approved

by our riders

Easy returns

for peace of mind

Share on :

Overview

Product Description

Overview

The META HT 24 is perfect for children looking for a bike that can support them in their riding progress. With their fork specifically developed for featherweights and their disc brakes these bikes allow venturing to more technical terrain safely and being particularly efficient to ride.

Whatever your child's age or build, with our KIDS range, you're guaranteed to choose a mountain bike specifically designed for them. Here, the geometries, equipment and wheel sizes are conceived as a whole, to enable children to become experienced riders.

We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

Specs

TECHNICAL INFORMATION

SPECIFICATION

DETAIL

BICYCLE TYPE

Kids bike - All Mountain

FRAME MATERIAL

AL 6061 T4, T6

FRAME WEIGHT

RECOMMENDED/MAX. FORK HEIGHT

470mm / 480mm

HEADSET TYPE

ZS44 / ZS56

ICR COMPATIBLE

WHEELS SIZE

24’’ - 24’’

MAX. REAR TYRE DIMENSION - ETRTO

63mm - Ø507mm

REAR BRAKE MOUNTING TYPE

IS 160mm

REAR BRAKE ROTOR MAX. SIZE

180mm

SEATPOST/SEAT CLAMP DIAMETER

31,6mm / 34,9mm

SEATPOST INSERTION MAX.

225mm

BOTTOM BRACKET TYPE

BSA 68mm

CHAIN GUIDE

RECOMMENDED/MAX. CHAINRING TEETH

30T / 32T

CHAIN LINE

REAR HUB DIMENSION

135x9mm

REAR AXLE DIMENSION

UDH HANGER

Geometry

GEOMETRY

MEASUREMENT

1 - SEAT TUBE LENGTH

260

300

340

360

2 - SEAT TUBE ANGLE

73°

3 - HEAD TUBE ANGLE

67,5°

67°

65,5°

64°

4 - HEAD TUBE LENGTH

105

5 - WHEELBASE

893

983

1082

1119

6 - TOP TUBE LENGTH

452

506

536

543

7 - CHAIN STAY LENGTH

350

380

425

8 - BOTTOM BRACKET HEIGHT

-5

-25

-20

9 - FORK LENGTH

400

470

514

520

10 - FORK OFFSET

11 - REACH

310

340

360

383

12 - STACK

462

544

576

575

Build Specs

SPECIFICATIONS

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

COMPONENT

SPECIFICATION

FRAME

META HT 2424’’, Alloy 6061, triple butted tubes, T4, T6.

FORK

MANITOU Machete Junit Pro, 120 mm travel24", kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)

HEADSET

ACROS ZS44 / ZS56Alloy cups, sealed bearings

STEM

RIDE ALPHA Freeride 40 mm40 mm extension, 31,8 mm

HANDLEBAR

PROTAPER Junit Riser bar31,8 mm, 680 mm width, 25 mm rise

GRIPS

PROTAPER Junit IntermediateKids specific 27 mm diameter

BRAKES

SRAM Level, 2 pistons, Hydraulic disc brake, steel-backed organic padsRotors: SRAM G2 CleanSweep 180 / 160 mm, 6-bolt

SHIFTERS

SRAM NX11s

REAR DERAILLEUR

SRAM NX11s

BOTTOM BRACKET

AEROZINE BSA 30Threaded

CRANKSET

AEROZINE Xeon-A1, 145 mm crank arms, 30 mm axle, 7075 alloyChainring: AEROZINE Direct Mount 30t, Narrow-Wide, full CNC

CHAIN

KMC X1111s

CASSETTE

SRAM PG-113011s, 11-42t

RIMS

ALEXRIMS MD3024'', 28h, 30 mm inner width

HUBS

Front: FORMULA RX-26 - Rear: FORMULA DC-711Rear: 28h, sealed bearings, 9 x 135 mm (for QR axle), Shimano Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm

SPOKES/NIPPLES

SAPIM LeaderJ-Bend 2.0 mm, double butted, stainless, with Nylok, black

TYRES

Rear: MAXXIS DHR II - Front: MAXXIS DHFRear: 24'' x 2.30, Clincher - Front: 24'' x 2.40, Clincher

SEAT POST

KS Rage-I31,6 mm, travel: 75 mm, SouthPaw alloy remote

SADDLE

SDG Fly Jr122 mm width, kids specific, reinforced sides

WEIGHT

12,1 kg / 26.67 lbWithout pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

COLOUR

ChampagneMatte Finish

ACCESSORIES

Chainstay protector, seatstay protector

Warranty

COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
