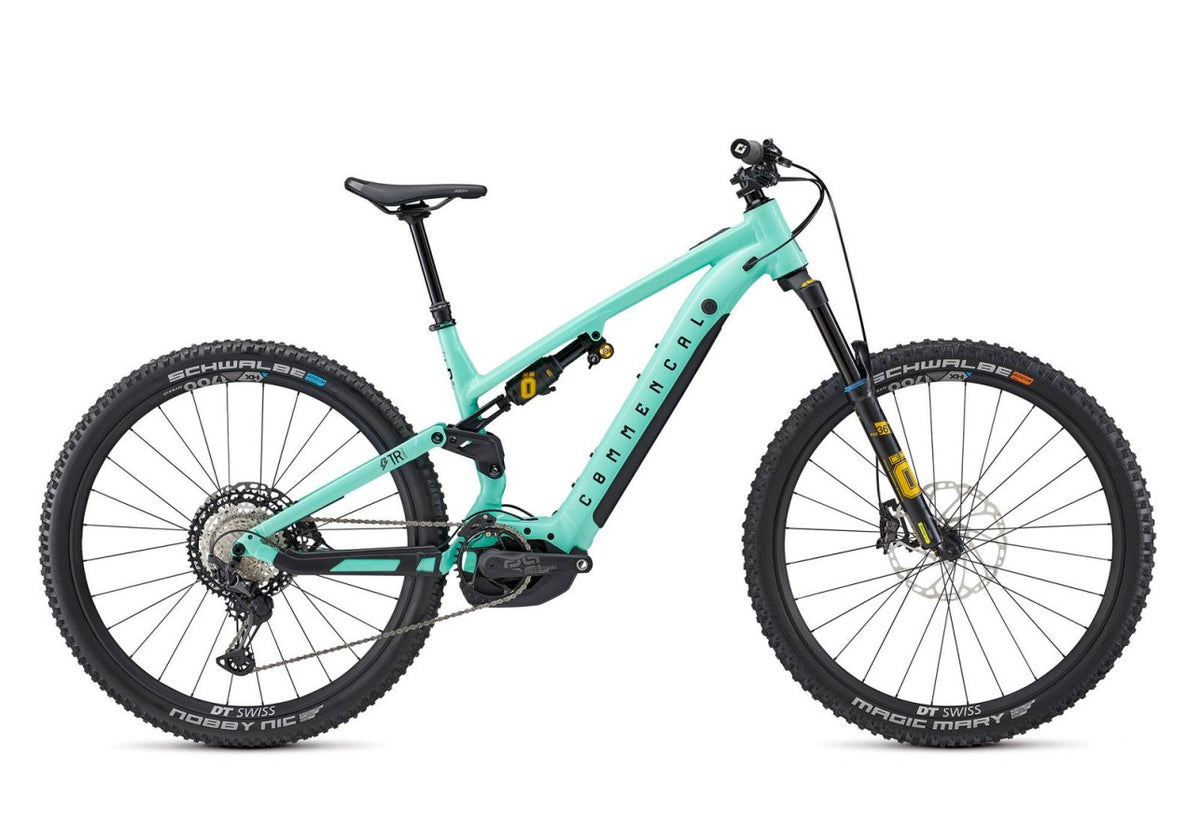

COMMENCAL META POWER TR BOSCH OHLINS EDITION EMERALD GREEN

SKU : 22METAPWTROHS

$9,900.00

Stock

Size - Bikes

Free & Fast Shipping

get it now

Tested & approved

by our riders

Easy returns

for peace of mind

Share on :

Overview

Product Description

Overview

The META POWER TR V4 BOSCH ÖHLINS EDITION showcases the performance of ÖHLINS suspension. • An RXF 36 Air fork features an air spring equipped with Ramp Up Chamber which allows for fine-tuning. The hydraulic cartridge offers high and low speed adjustments as well as rebound damping. The TTX Air shock is clean and dynamic. It has been designed to best adapt to our kinematics.• For a clean feel, stopping power is provided with SHIMANO XT 4-piston brakes and 220mm discs.• High-end DT SWISS HX1700 aluminium wheels are specifically designed for e-MTB use and hand-assembled by the Swiss brand. Strong and reliable.• A robust and reliable SHIMANO XT 12-speed drivetrain completes the buil

Specs

TECHNICAL INFORMATION

SPECIFICATION

DETAIL

BICYCLE TYPE

E-bike - All Mountain

FRAME MATERIAL

AL 6066 T4, T6

FRAME WEIGHT

4,1 kg / 9.03 lb

REAR TRAVEL

140mm

SHOCK LENGTH/STROKE

210x55mm

RECOMMENDED SAG

26-30% / 14-17mm

PIGGY BACK SHOCK COMPATIBLE

Yes

SHOCK BUSHINGS

20x10mm / no bushing needed on clevis

RECOMMENDED/MAX. FORK HEIGHT

566mm / 576mm

HEADSET TYPE

ZS56 / ZS66

ICR COMPATIBLE

Yes

WHEELS SIZE

29’’ - 29’’

MAX. REAR TYRE DIMENSION - ETRTO

65mm - Ø622mm

REAR BRAKE MOUNTING TYPE

Postmount 160mm

REAR BRAKE ROTOR MAX. SIZE

220mm

SEATPOST/SEAT CLAMP DIAMETER

31,6mm / 34,9mm

SEATPOST INSERTION MAX.

S : 220mm / M : 240mm / L : 270mm / XL : 280mm

MOTOR CRANKARMS INTERFACE

BOSCH CX Gen4

CHAIN GUIDE

Custom upper guide

RECOMMENDED/MAX. CHAINRING TEETH

34T / 36T

CHAIN LINE

REAR HUB DIMENSION

148x12mm

REAR AXLE DIMENSION

Maxle standard, 180mm, M12, P1.75mm

UDH HANGER

SHOCK ANCHOR ADJUSTMENT

2 positions

Geometry

GEOMETRY

MEASUREMENT

1 - SEAT TUBE LENGTH

380

420

440

460

2 - SEAT TUBE ANGLE

77,1° / 77,5°

3 - HEAD TUBE ANGLE

64,1° / 64,5°

4 - HEAD TUBE LENGTH

120

125

130

5 - WHEELBASE

1231 / 1230

1253 / 1252

1280 / 1279

1305 / 1304

6 - TOP TUBE LENGTH

580 / 579

601 / 600

627 / 626

652 / 651

7 - CHAIN STAY LENGTH

454 / 453

8 - BOTTOM BRACKET HEIGHT

-25,5 / -21

9 - FORK LENGTH

566

10 - FORK OFFSET

11 - REACH

436 / 440

456 / 460

481 / 485

506 / 510

12 - STACK

607 / 604

612 / 609

616 / 613

Build Specs

SPECIFICATIONS

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

COMPONENT

SPECIFICATION

FRAME

META POWER TR V4, 140 mm29", Alloy 6066, triple butted tubes, T4, T6.

MOTOR

BOSCH Performance Line CXMax. torque: 85N.m, 250W

BATTERY

BOSCH PowerTube 625, 625WhBOSCH 4A Charger, Compact size & lightweightCompatible w/BOSCH PowerMore 250 for extra range

DISPLAY

BOSCH System ControllerBOSCH Mini Remote currently not available in the USA

SHOCK

OHLINS TTX22 Air210 x 55 mm, climb mode, LSC, 3 positions HSC, rebound

FORK

OHLINS RXF36 m.2 Air, 150 mm travel29", TTX 18 damper, climb mode, LSC, 3 positions HSC, rebound, Boost (15 x 110 mm), 44 mm offset

HEADSET

ACROS ZS56 / ZS66Alloy cups, sealed bearings

STEM

RIDE ALPHA 40 EXTERNAL40 mm extension, 31,8 mm

HANDLEBAR

RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XLInternal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

GRIPS

ODI LONGNECKSoft compound, single clamp, black

BRAKES

SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatibleRotors: SHIMANO SM-RT66 220 mm, 6-bolt

SHIFTERS

SHIMANO Deore XT12s

CHAIN GUIDE

RIDE ALPHA Upper Guide32-34t

REAR DERAILLEUR

SHIMANO Deore XT12s

CRANKSET

E13 E*Spec Plus Bosch CX, 160 mm crank armsChainring: E13 E*Spec Plus Bosch CX, 34t, direct mount

CHAIN

SHIMANO SLX12s

CASSETTE

SHIMANO Deore XT12s, 10-51t

RIMS

Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 SplineRear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

HUBS

Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, Sram XD - Front: 28h, 15 x 110 mm, sealed bearings

SPOKES/NIPPLES

DT SWISS Hybrid 1Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

TYRES

Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic MaryRear: 29"x2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy

SEAT POST

KS Lev Integra31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remote

SADDLE

FIZIK Terra Aidon X3145 mm width, Kium Mobius rails

WEIGHT

23.8 kg / 52.5 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

RIDE ALPHA CNC

COLOUR

Emerald GreenShiny Finish

ACCESSORIES

Motor protector, chainstay protector, seatstay protector
