FRAME

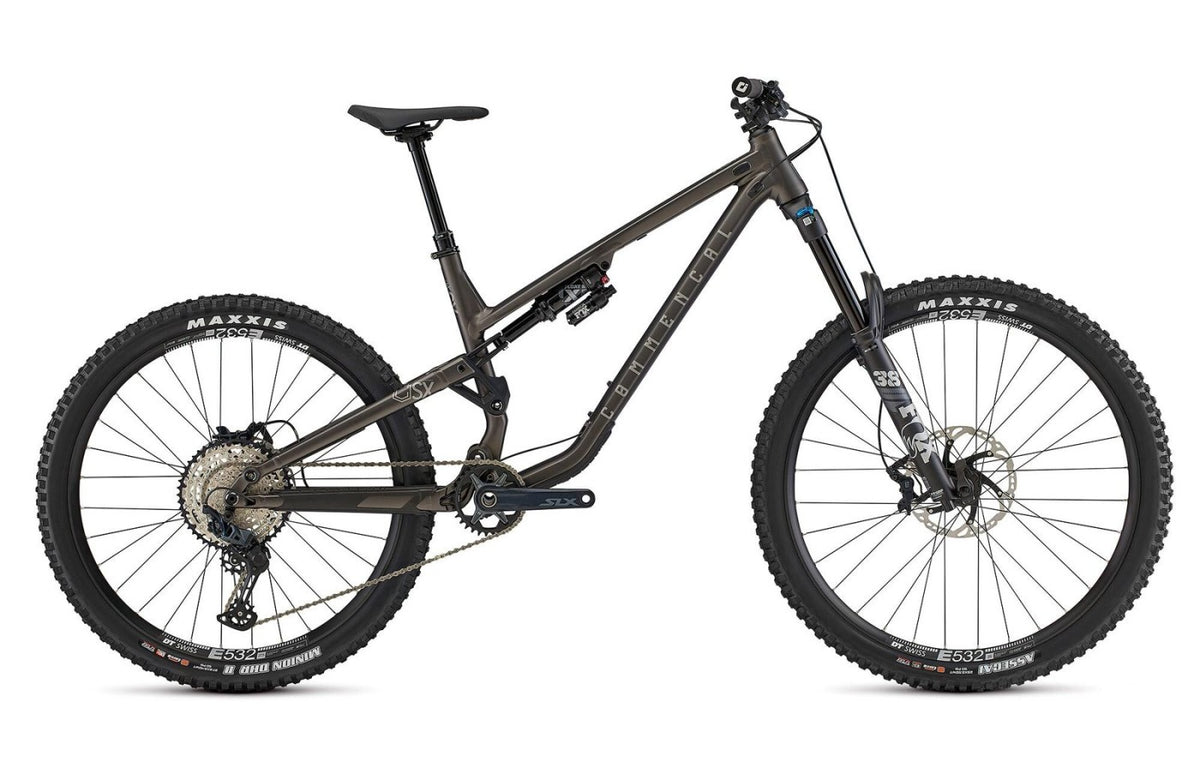

META SX V4, 160 mm travel29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
SHOCK
FOX Float X Performance230 x 62.5 mm, 2-pos lever, rebound
FORK
FOX 38 Performance, 170 mm travel29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 Tokens
HEADSET
ACROS ZS44/ZS56Alloy cups, sealed bearings
STEM
RIDE ALPHA Freeride 4040 mm extension, 31,8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI Elite MotionSoft pro compound, single clamp, black
BRAKES
SHIMANO SLX, 4 pistons, I-Spec EV compatibleRotors: SHIMANO SM-RT76 Deore XT 203MM , 6 bolts
REAR DERAILLEUR
SHIMANO SLX12s
BOTTOM BRACKET
SHIMANO BB71-41APressfit
CRANKSET
SHIMANO SLX, 170 mm crank arms, BoostChainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology
CASSETTE
SHIMANO SLX12s, 10-51t
RIMS
Rear: DT SWISS E532 27.5'' - Front: DT SWISS E532 29''Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
HUBS
Rear: FORMULA MSL-148A - Front: FORMULA DC-711Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearings
SPOKES/NIPPLES
SAPIM RaceJ-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
TYRES
Rear: MAXXIS DHR II - Front: MAXXIS AssegaiRear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless Ready
SEAT POST
KS Rage-I34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
SADDLE
FIZIK Terra Alpaca X5145 mm width, S-alloy rails
WEIGHT
15,9 kg / 35.05 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Dark SlateMatte Finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector*Please note that bike specs are subject to change without prior notice.
