FRAME

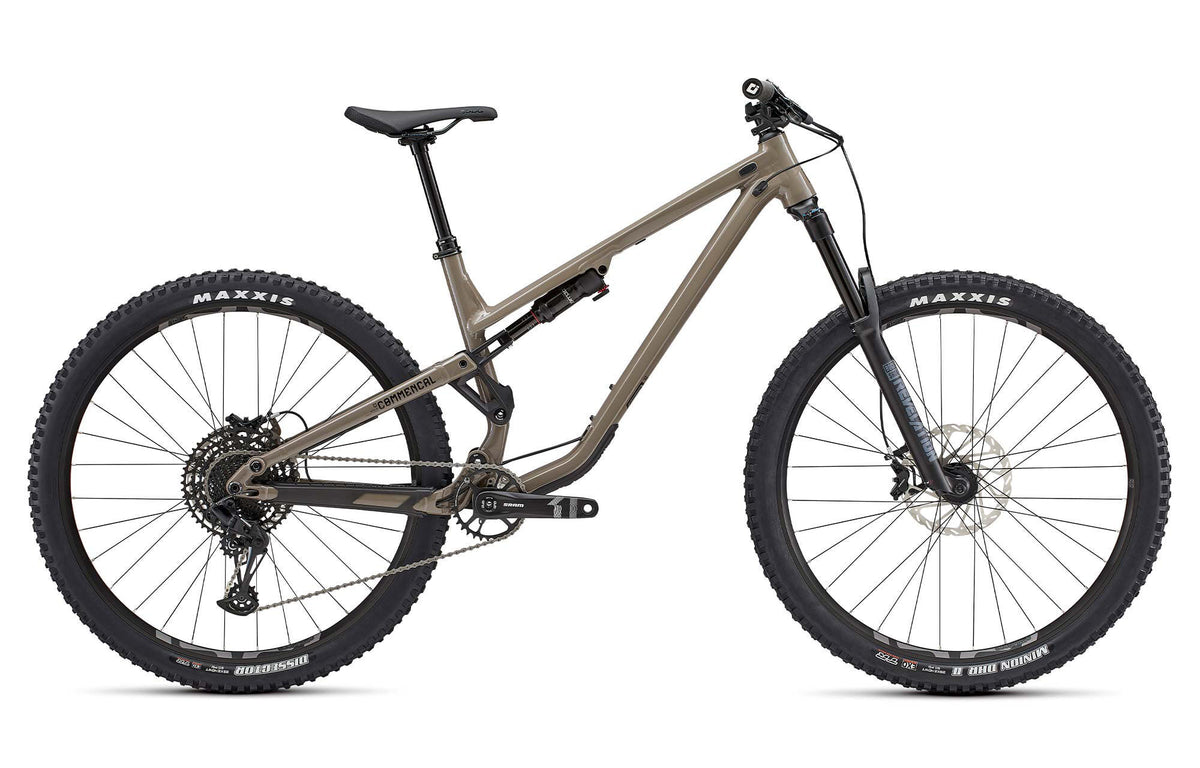

META TR V4, 140 mm travel29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
SHOCK
ROCKSHOX Deluxe Select +210 x 55 mm, RT damper, DebonAir Linear, rebound, 2 pos comp, 1 Token neg. 4 Tokens pos.
FORK
ROCKSHOX Revelation RC, 150 mm travel29", Motion Control RC damper, DebonAir, rebound, LSC, Boost (15 x 110 mm), 42 mm offset, 1 Token
HEADSET
ACROS ZS44 / ZS56Alloy cups, sealed bearings
STEM
RIDE ALPHA Freeride 4040 mm extension, 31,8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI Elite MotionSoft pro compound, single clamp, black
BRAKES
SRAM Guide T, 4 pistons, MatchMaker compatibleRotors: SRAM G2 CleanSweep 200 mm, 6-bolt
SHIFTERS
SRAM SX Eagle12s
REAR DERAILLEUR
SRAM SX Eagle12s
BOTTOM BRACKET
SRAM DUBPressfit
CRANKSET
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, BoostChainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide
CASSETTE
SRAM PG-121012s, 11-50t
RIMS
E13 LG1 EN Base29'', 32h, 30 mm inner width
HUBS
Rear: FORMULA DCL-348A - Front: FORMULA DC-711Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings
SPOKES/NIPPLES
SAPIM RaceJ-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black
TYRES
Rear: MAXXIS Dissector - Front: MAXXIS DHR IIRear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready
SEAT POST
KS Rage-I34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
SADDLE
SDG Bel Air V3140 mm width, Steel Rails
WEIGHT
15 kg / 33.06 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector
