Commencal

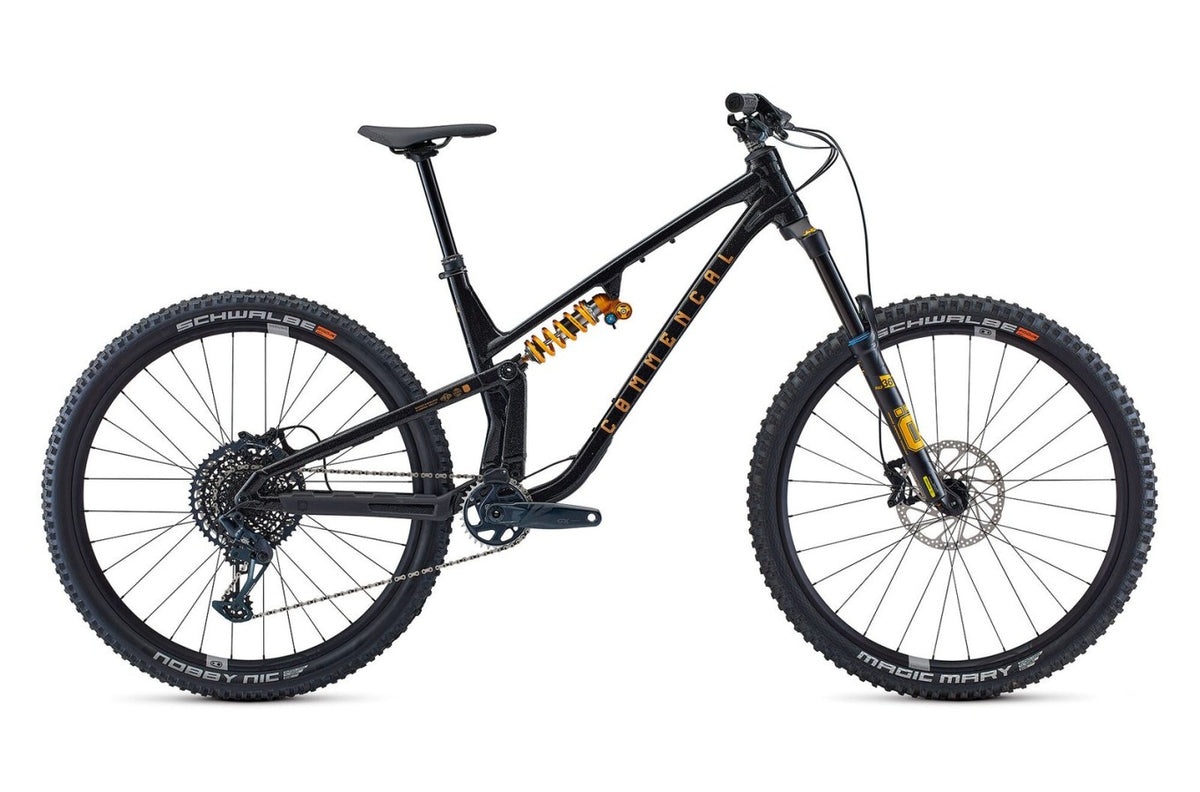

COMMENCAL META V5 OHLINS EDITION GLITTERY BLACK

SKU : 23METATRRS

$7,500.00

Stock

Size - Bikes

Free & Fast Shipping

get it now

Tested & approved

by our riders

Easy returns

for peace of mind

Share on :

Overview

Product Description

Overview

This META V5 ÖHLINS EDITION is a high-end build which enhances the qualities of the frame itself.• The RFX 36 Air fork has a spring rate that can be adjusted using the Ramp Up Chamber and the hydraulic cartridge allows for fine-tuning of high- and low-speed compression and rebound damping. The TTX 22M shock is specially adapted to our new Virtual Contact System kinematics for dynamic and comfortable handling.• TRP DH-R EVO 4-piston brakes with 203mm discs are progressive and consistent.• CRANKBROTHERS Synthesis Enduro aluminium wheels have differentiated stiffness between the front and rear.• The SRAM GX Eagle 12-speed drivetrain offers a 520% gear range, ideal for long days on the bike.

Specs

TECHNICAL INFORMATION

SPECIFICATION

DETAIL

BICYCLE TYPE

Enduro / All Mountain

FRAME MATERIAL

AL 6066 T4, T6

FRAME WEIGHT

4,06 kg / 8,95 lb

REAR TRAVEL

150mm

SHOCK LENGTH/STROKE

210x55mm

RECOMMENDED SAG

27-30% / 15-19mm

PIGGY BACK SHOCK COMPATIBLE

Yes

SHOCK BUSHINGS

20x10mm / no bushing needed on clevis

RECOMMENDED/MAX. FORK HEIGHT

571mm / 586mm

HEADSET TYPE

ZS56 / ZS56

ICR COMPATIBLE

Yes

WHEELS SIZE

29’’ - 29’’

MAX. REAR TYRE DIMENSION - ETRTO

65mm - Ø622mm

REAR BRAKE MOUNTING TYPE

Postmount 200mm

REAR BRAKE ROTOR MAX. SIZE

223mm

SEATPOST/SEAT CLAMP DIAMETER

34,9mm / 38,5mm

SEATPOST INSERTION MAX.

S : 230mm / M : 270mm / L : 290mm / XL : 310mm

BOTTOM BRACKET TYPE

Press Fit BB 92mm

CHAIN GUIDE

ISCG 05 lower - Custom upper guide

RECOMMENDED/MAX. CHAINRING TEETH

32T / 34T

CHAIN LINE

REAR HUB DIMENSION

148x12mm

REAR AXLE DIMENSION

UDH standard, 180mm, M12, P1.0mm

UDH HANGER

Yes

SHOCK ANCHOR ADJUSTMENT

2 positions

Geometry

GEOMETRY

MEASUREMENT

1 - SEAT TUBE LENGTH

380

420

440

460

2 - SEAT TUBE ANGLE

77,7° / 78,2°

3 - HEAD TUBE ANGLE

64,1° / 64,5°

4 - HEAD TUBE LENGTH

120

125

130

135

5 - WHEELBASE

1215 / 1214

1237 / 1236

1271 / 1270

1293 / 1293

6 - TOP TUBE LENGTH

572,9 / 571,6

593,9 / 592,6

614,8 / 613,5

635,8 / 634,5

7 - CHAIN STAY LENGTH

436,8 / 435

441,8 / 440

8 - BOTTOM BRACKET HEIGHT

-25,7 / -20

-25,8 / -20

-25,9 / -20

9 - FORK LENGTH

571

10 - REACH

435,4 / 440

455,4 / 460

475,5 / 480

495,4 / 500

11 - STACK

626,3 / 628,8

630,8 / 633,3

635,4 / 637,8

639,9 / 642,3

Build Specs

SPECIFICATIONS

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

COMPONENT

SPECIFICATION

FRAME

META V5, 150 mm travel29'', Alloy 6066, triple butted tubes, T4, T6

SHOCK

OHLINS TTX22 M.2 Coil210 x 55 mm, HSC, LSC, rebound, climb mode. Spring rates: 388 on S, 434 on M, 480 on L, 525 on XL

FORK

OHLINS RXF36 m.2 Air, 160 mm travel29", TTX 18 damper, LSC, HSC, LSR, climb mode, Boost (15 x 110 mm), 44 mm offset

HEADSET

ACROS ZS56 / ZS56Alloy cups, sealed bearings

STEM

BURGTEC ENDURO MK342,5 mm extension, 31.8 mm

HANDLEBAR

BURGTEC RIDE WIDEALLOY ENDURO 760 on S - BURGTEC RIDE WIDEALLOY ENDURO 780 on M / L - BURGTEC RIDE WIDEALLOY ENDURO 800 on XL31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 30 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on XL

GRIPS

ODI LongneckSoft compound, single clamp, black

BRAKES

TRP DH-R EVO, 4 pistons, resin pads, PostmountRotors: TRP R1 203 mm, 6 holes, 2.3mm thickness

SHIFTERS

SRAM GX Eagle12s

CHAIN GUIDE

RIDE ALPHA32t-34t

REAR DERAILLEUR

SRAM GX Eagle12s

BOTTOM BRACKET

SRAM DUB WIDEPressfit

CRANKSET

SRAM GX Eagle, 170 mm crank arms, DUB, BoostChainring: SRAM GX Eagle, 32t, Narrow-Wide

CHAIN

SRAM GX Eagle12s

CASSETTE

SRAM XG-1275 Eagle 12s, 10-52t

RIMS

CRANK BROTHERS Synthesis Alloy Enduro 3Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner width

HUBS

INDUSTRY NINE 1/1Rear: 32h, sealed bearings, 12 x 148 mm, 4°, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, black

SPOKES/NIPPLES

Rear: SAPIM Race - Front: SAPIM D-LightRear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

TYRES

Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic MaryRear: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy - Front: 29"x2.4", Evo, Super Trail, Addix Soft, Tubeless Easy

SEAT POST

KS Lev Integra34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remote

SADDLE

FIZIK Terra Alpaca X5145 mm width, S-alloy rails

WEIGHT

15,7 kg / 34.61 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

COLOUR

Glittery BlackShiny Finish

ACCESSORIES

Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender

Warranty

COMMENCAL CARE is our vision of customer service.
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

COMMENCAL products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase. Our products undergo a rigorous testing process, but we understand that unexpected issues can arise. We will handle each case individually to provide you with a fair solution and help you get back to your activities quickly.
