FRAME

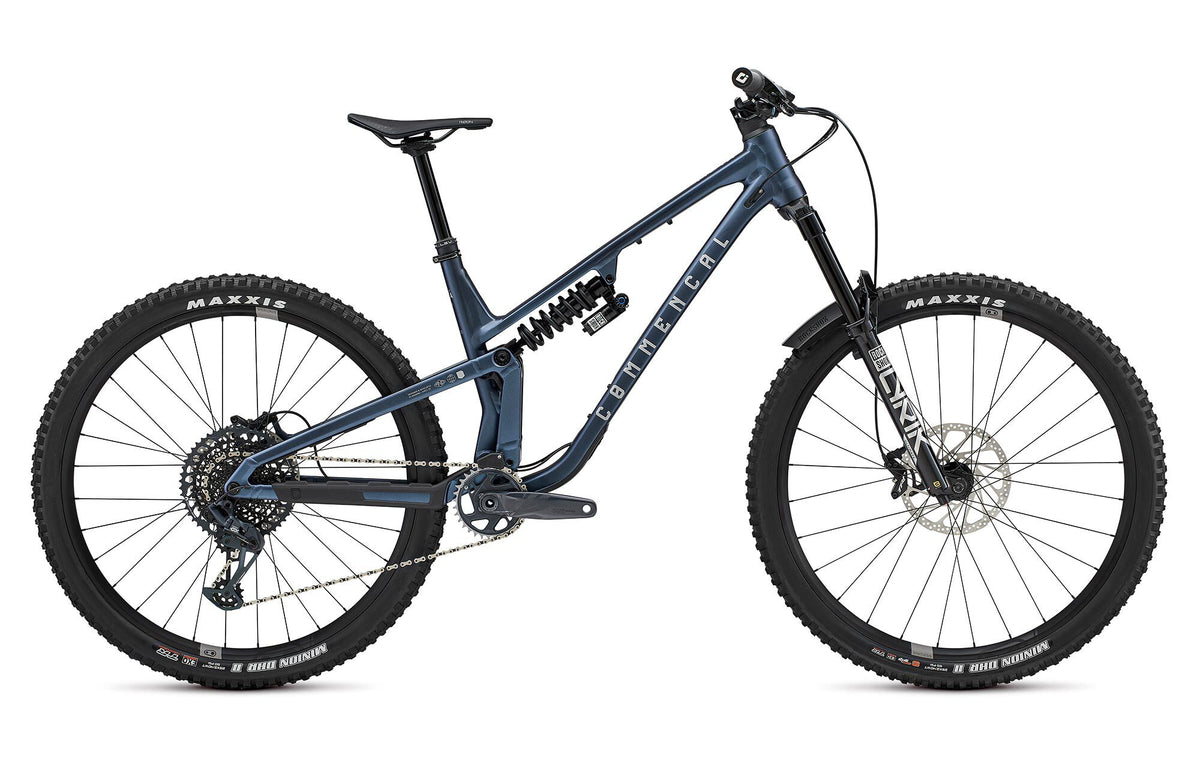

META V5, 150 mm travel29'', Alloy 6066, triple butted tubes, T4, T6
SHOCK
ROCKSHOX Super Deluxe Coil Ultimate210 x 55 mm, RC2T Adj. Hydraulic Bottom Out, 2 position compression, HSC, LSC, rebound. Spring rates: 350lbs on S, 400lbs on M, 450lbs on L, 500lbs on XL
FORK
ROCKSHOX Lyrik Ultimate, 160 mm travel29", Charger 3 RC2 W/ButterCups damper, DebonAir+ W/ButterCups, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token
HEADSET
ACROS ZS56 / ZS56Alloy cups, sealed bearings
STEM
RIDE ALPHA 4040 mm extension, 31,8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
ODI LongneckSoft compound, single clamp, black
BRAKES
TRP DH-R EVO, 4 pistons, resin pads, PostmountRotors: SHIMANO SM-RT86 ICE TECH 203MM
SHIFTERS
SRAM GX Eagle12s
CHAIN GUIDE
RIDE ALPHA32t-34t
REAR DERAILLEUR
SRAM GX Eagle12s
BOTTOM BRACKET
SRAM DUB WIDEPressfit
CRANKSET
SRAM GX Eagle, 170 mm crank arms, DUB, BoostChainring: SRAM Eagle, 32t, Narrow-Wide
CASSETTE
SRAM XG-1275 Eagle 12s, 10-52t
RIMS
CRANK BROTHERS Synthesis Alloy Enduro 3Rear: 29'', 32h, 29.5 mm inner width - Front: 29'', 28h, 31.5 mm inner width
HUBS
INDUSTRY NINE 1/1Rear: 32h, sealed bearings, 12 x 148 mm, 4º, XD driver, black - Front: 28h, sealed bearings, 15 x 110 mm, black
SPOKES/NIPPLES
Rear: SAPIM Race - Front: SAPIM D-LightRear: J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black - Front: J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black
TYRES
Rear: MAXXIS DHR II - Front: MAXXIS DHR IIRear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready
SEAT POST
KS Lev Integra34.9 mm, travel: 125 mm on S, 175 mm on M/L and 200 mm on XL, SouthPaw alloy remote
SADDLE
FIZIK Terra Ridon X5145 mm width, S-Alloy rails
WEIGHT
15,7 kg / 34.61 lbAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
SPARKLY BLUEMatt finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
