FRAME

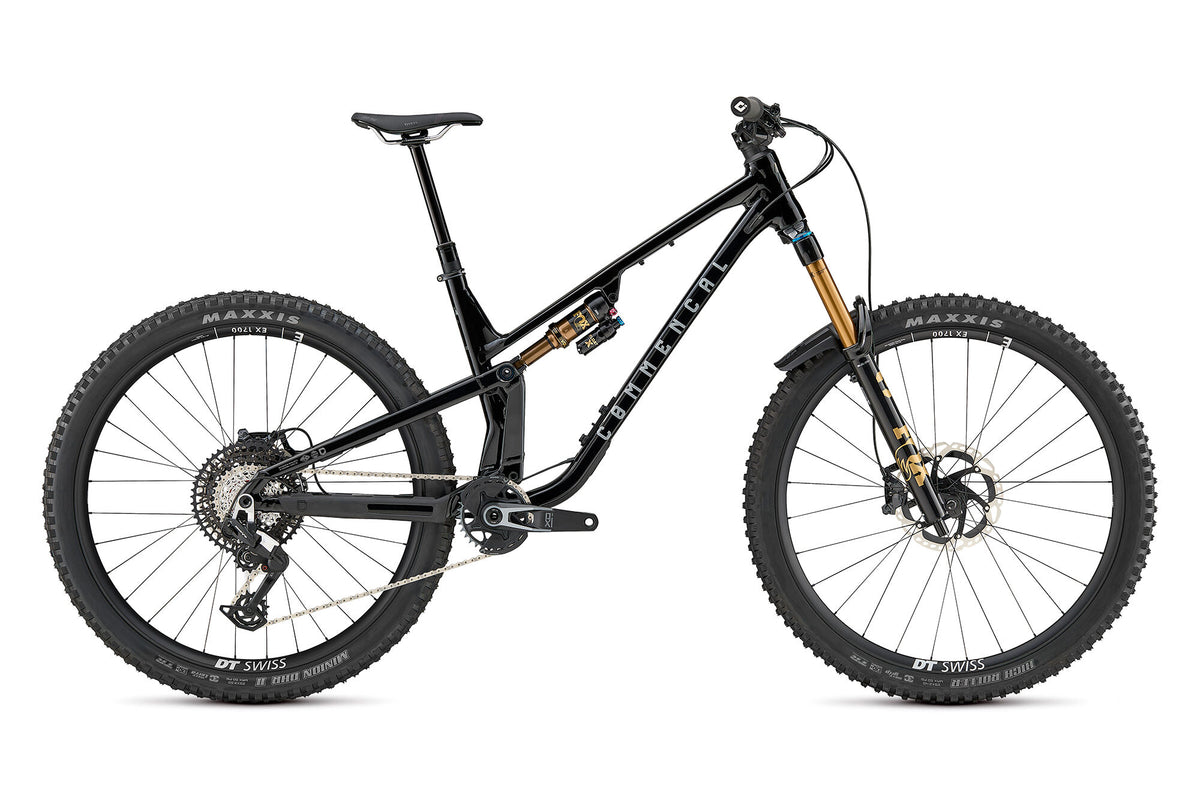

META V5, 150 mm travel — 29'', Alloy 6066, triple butted tubes, T4, T6.
SHOCK
FOX Float X Factory 2027 — 210 x 55 mm, 2-pos lever, HSC, LSC HSR, LSR, 0.6ci spacers
FORK
FOX 36 Factory, 160 mm travel — 29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 token
HEADSET
ACROS ZS56/ZS56 — Alloy cups, sealed bearings
STEM
RIDE ALPHA 40 — 40 mm extension, 31.8 mm
HANDLEBAR
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R35 800 on XL — 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 6061 on XL
GRIPS
ODI Longneck V2.1 — Black clamp
BRAKES
SHIMANO XT, 4 pistons, resin pads — Rotors : SHIMANO MT905 203mm, 6-bolts
SHIFTERS
SRAM Eagle 90 — 12s
CHAIN GUIDE
RIDE ALPHA — 32t-34t
REAR DERAILLEUR
SRAM Eagle 90 — 12s
BOTTOM BRACKET
SRAM DUB92 — MTB WIDE, Pressfit
CRANKSET
SRAM X0 T-Type, 170 mm crank arms — Chainring : SRAM X0 T-Type, 32t
CHAIN
SRAM GX T-Type — 12s
CASSETTE
SRAM XS 1275 — 12s, 10-52t
RIMS
DT SWISS EX1700 — 29'', 32h, 28 mm inner width
HUBS
DT SWISS 350 — Rear : 32h, sealed bearings, 12 x 148 mm, SRAM XD, DEG DF - Front : 32h, sealed bearings, 15 x 110 mm
SPOKES/NIPPLES
DT SWISS Competition — J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
TYRES
Rear : MAXXIS DHR II - Front : MAXXIS HIGH ROLLER II — Rear : 29''x2.5'' WT, 3C MaxxTerra, New EXO+, Tubeless Ready - Front : 29"x2.5" WT, 3C MaxxGrip, New EXO+, Tubeless Ready
SEAT POST
ONE UP V3 — 34.9 mm, travel: 150 mm on S, 180 mm on M and 210 mm on L/XL, I-SPEC EV Remote
SADDLE
WTB Solano SL Crmo — Crmo rails, 142 x 240 mm
WEIGHT
15,7 kg / 34,61 lbs — Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Pure Black — Shiny Finish
ACCESSORIES
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, FIDLOCK base
