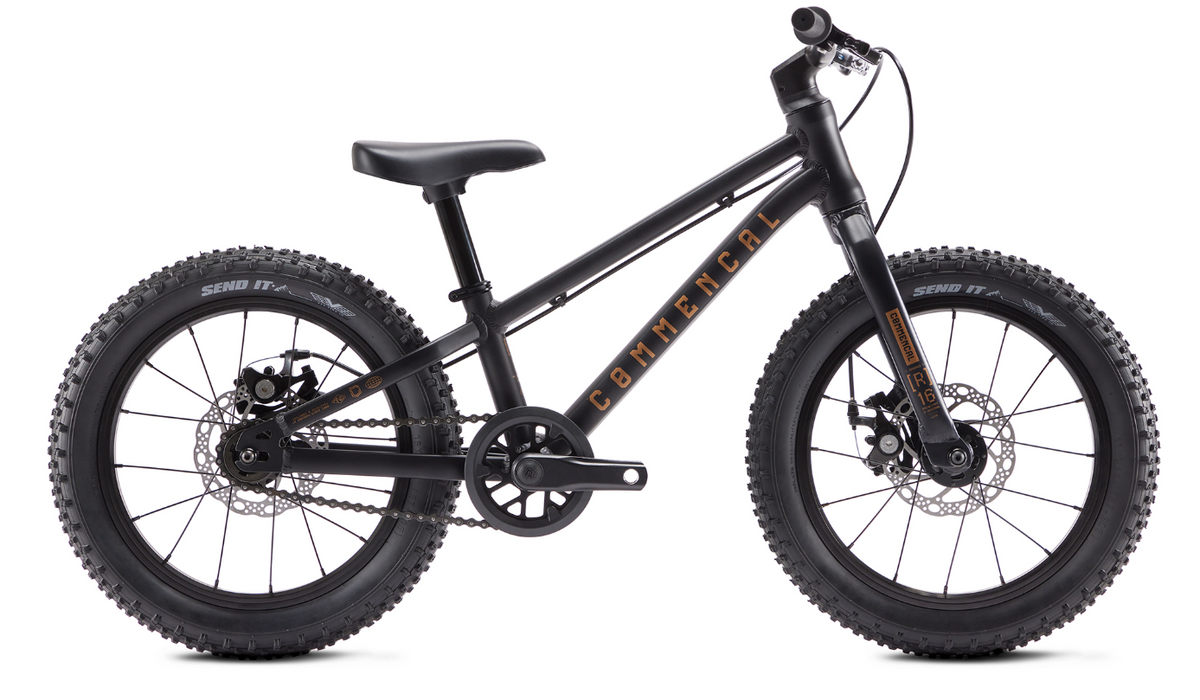

COMMENCAL RAMONES 16 BLACK 2027

SKU : BT5RMN16EU216

$600.00

Stock Available (SHIPS FROM SUPPLIER WAREHOUSE 2-5 DAYS)

Free & Fast Shipping

get it now

Tested & approved

by our riders

Easy returns

for peace of mind

Share on :

Overview

Product Description

Overview

The RAMONES 16 delivers unmatched performance and style. Thanks to its geometry and high-performance components, it is perfect for boosting confidence and giving kids their first real bike riding sensations.• Lightweight, ergonomic RIDE ALPHA bar/stem combo in aluminium, with a reduced diameter at the grips.• Cranks adapted to short legs and kid’s body shapes. Single speed drivetrain for easy maintenance and use.• TEKTRO Aries disc brakes with 140mm rotors front and rear for maximum safety.• 2.25 VEE TIRE CrownGem tyres for fun on any terrain.

Specs

TECHNICAL INFORMATION

SPECIFICATION

DETAIL

BICYCLE TYPE

Kids bike - All Terrain

FRAME MATERIAL

AL 6061 T4, T6

FRAME WEIGHT

RECOMMENDED/MAX. FORK HEIGHT

270mm

HEADSET TYPE

ZS44 / ZS44

WHEELS SIZE

16’’ - 16’’

MAX. REAR TYRE DIMENSION - ETRTO

58mm - Ø305mm

REAR BRAKE MOUNTING TYPE

IS 140mm

REAR BRAKE ROTOR MAX. SIZE

160mm

SEATPOST/SEAT CLAMP DIAMETER

27,2mm - 31,8mm

SEATPOST INSERTION MAX.

180mm

SEAT HEIGHT MAX./MIN.

533mm / 615mm

BOTTOM BRACKET TYPE

BSA 68mm

CHAIN GUIDE

RECOMMENDED/MAX. CHAINRING TEETH

28T / 28T

REAR HUB DIMENSION

3/8’’x114mm

REAR AXLE DIMENSION

155mm Threaded rod

UDH HANGER

Geometry

GEOMETRY

MEASUREMENT

1 - SEAT TUBE LENGTH

175

190

240

280

2 - SEAT TUBE ANGLE

73°

73,5°

3 - HEAD TUBE ANGLE

70°

68°

4 - HEAD TUBE LENGTH

105

5 - WHEELBASE

620

699

848

947

6 - TOP TUBE LENGTH

342

378

444

489

7 - CHAIN STAY LENGTH

240

280

335

380

8 - BOTTOM BRACKET HEIGHT

-35

-40

9 - FORK LENGTH

240

270

330

380

10 - FORK OFFSET

11 - REACH

247

272

315

350

12 - STACK

311

349

378

429,6

Build Specs

SPECIFICATIONS

SPEC AND PRICE BEING SUBJECT TO CHANGE WITHOUT NOTIFICATION

COMPONENT

SPECIFICATION

FRAME

RMNS 16 — Alloy 6061

FORK

RMNS 16 — 16", alloy 6061

HEADSET

NECO H-148 — Semi-integrated

HANDLEBAR

RIDE ALPHA Kids — 25.4 mm, 500 mm width, 20 mm rise, tapered (for 19 mm grips), Alloy 6061

GRIPS

COMMENCAL Kids — 19 mm grips (ID), kids hands specific

BRAKES

TEKTRO Aries. Mechanical disc brakes, with kids specific Tektro levers and Jagwire cables — Rotors: TEKTRO 140 mm, 6-bolt

BOTTOM BRACKET

NECO B-910 — BSA 68 mm, ball retainer

CRANKSET

COMMENCAL Kids, 102 mm crank arms — Chainring: 28t. External chainguard

CHAIN

C-410 1/2'' x 1/8'' — Singlespeed, black

CASSETTE

16t freewheel

RIMS

COMMENCAL 16'' — 16h, Alloy 6061-T6

HUBS

COMMENCAL — 16h, loose balls, disc ready

SPOKES/NIPPLES

2.0 mm — ED black

TYRES

VEE TIRE CO. CrownGem — 16'' x 2.25'', MPC Compound, Custom "Send It" patch

SEAT POST

COMMENCAL — 27.2 mm, Alloy

SADDLE

COMMENCAL Kids — Soft padding

WEIGHT

7,24 kg / 15.96 lb — Weight may differ slightly due to manufacturing tolerances.

PEDALS INCLUDED

Yes

COLOUR

Black — Matte Finition

ACCESSORIES

Bell, lights
