Overview

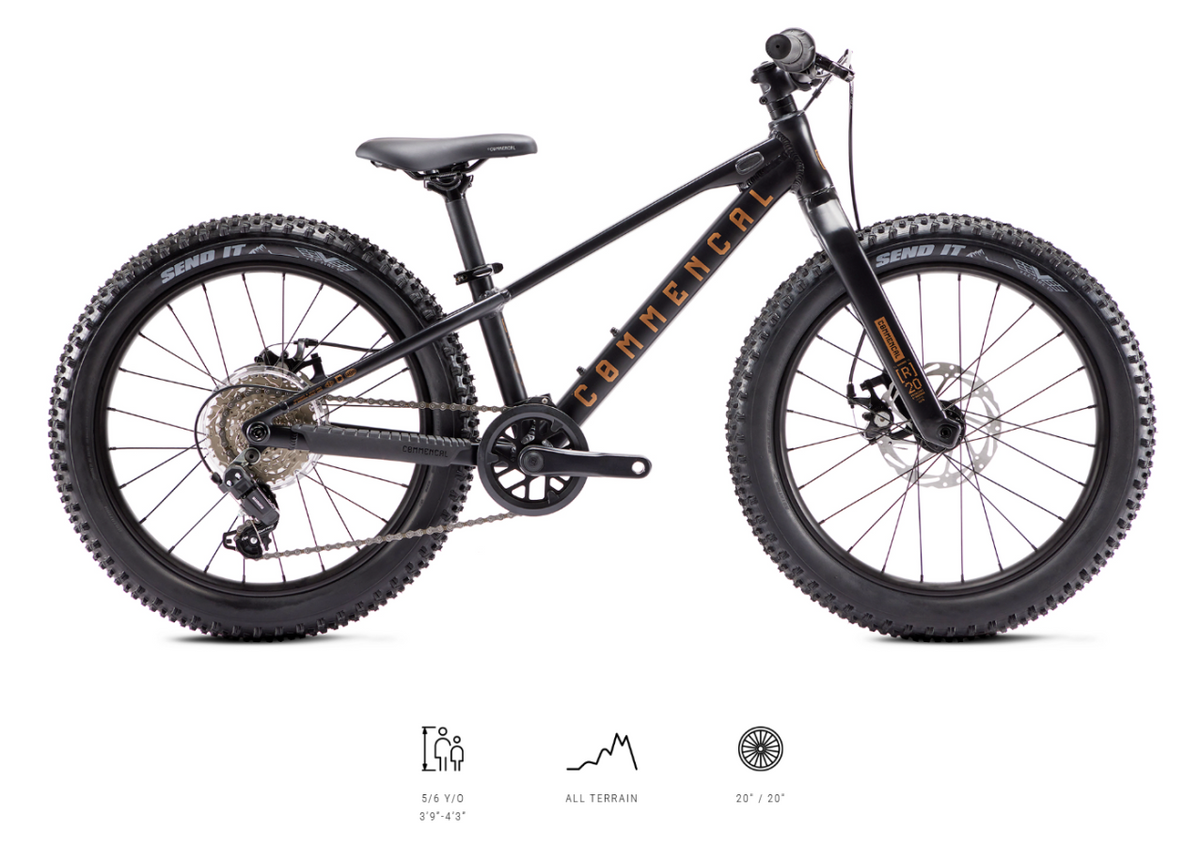

The RAMONES 20 is designed with the same attention to detail as our adult bikes: easy to use, low in weight, perform exactly how they should and a unique look! Integrated brake cable routing, thru axles, UDH derailleur hanger; we made no compromises on this mountain bike for children where the goal is to progress.
The RAMONES 20 is designed as a true mini-rider’s bike. It combines ease of use, light weight, efficiency, and a killer style!
• The 7-speed SHIMANO Tourney drivetrain, combined with the Revoshift twist shifter, offers simple and intuitive control, and longer rides become child’s play.
• A custom chain guide prevents derailments, and the cranks are adapted to small legs for efficient and comfortable pedalling.
• The wide, knobby VEE TIRE CrownGem tyres provide grip, comfort, and safety on all types of terrain. Grass, dirt, gravel, it handles it all!
• TEKTRO Aries disc brakes have levers designed for small hands and provide powerful and controlled braking. Your child can manage their speed with confidence, even when the terrain gets tricky.
Specs
Frame
RAMONES 20
Alloy 6061
Fork
RAMONES 20
20", Alloy 6061
Headset
NECO H-125
ZS44 / ZS44, alloy cups, semi-integrated
Stem
COMMENCAL Alloy, 40 mm
40 mm extension, 31.8 mm, -5º
Handlebar
RIDE ALPHA
31.8 mm, 600 mm width, 25 mm rise, Alloy 6061
Grips
COMMENCAL
115 mm / 76 mm
Brakes
TEKTRO Aries, Mechanical disc brakes, 2 pistons, with kids specific Tektro levers and Jagwire cables
Rotors: TEKTRO 160 mm, 6-bolt
Shifters
SHIMANO Tourney
7s, Revo Shifter
REAR DERAILLEUR
SHIMANO Tourney
7s, short cage
Bottom bracket
NECO B-910
BSA 68 mm, sealed bearings, 116 mm axle
Crankset
COMMENCAL Kids, 127 mm crank arms
Chainring: 30t, External chainguard
Chain
KMC Z7
7s
Cassette
S-RIDE CS-M200
7s, 11-34t, with spoke protector
Rims
COMMENCAL 20''
20’’, 28h, 30 mm inner width, Alloy 6061
Hubs
Rear: FASTACE - Front: FASTACE DA201FS05
Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, disc ready for 6-bolt rotors
Spokes/nipples
2.0 mm
ED black
Tyres
VEE TIRE CO. CrownGem
20''x2.6'', MPC Compound, Custom "Send It" patch
Seat post
COMMENCAL
27,2 mm, 300 mm length, Alloy
Saddle
SELLE ROYAL Explora JR
135 mm with, steel rails
Weight
10,3 kg / 22.70 lb
Without pedals. Weight may differ slightly due to manufacturing tolerance
Pedals included
Yes
Colour
Pure White
Shiny Finish
Accessories
Bell, light, chain guide
Bike specifications are subject to change without notice.
-----------------------------------------------------------------
Technical informations
Bicycle type
Kids bike - All Terrain
Frame material
AL 6061 T4, T6
Frame weight
NC
Recommended/max. fork height
330mm
Headset type
ZS44 / ZS44
Wheels size
20’’ - 20’’
Max. rear tyre dimension - ETRTO
65mm - Ø406mm
rear brake mounting type
Postmount 160mm
Rear brake rotor max. size
160mm
Seatpost/seat clamp diameter
27,2mm - 31,8mm
Seatpost insertion max.
210mm
Seat height max./min.
593mm / 713mm
Bottom bracket type
BSA 68mm
Chain guide
upper guide
Recommended/max. chainring teeth
30T / 30T
Chain line
45
Rear Hub dimension
142x12mm
Rear Axle dimension
UDH standard, 174mm, M12, P1.0mm
UDH hanger
Yes
