FRAME

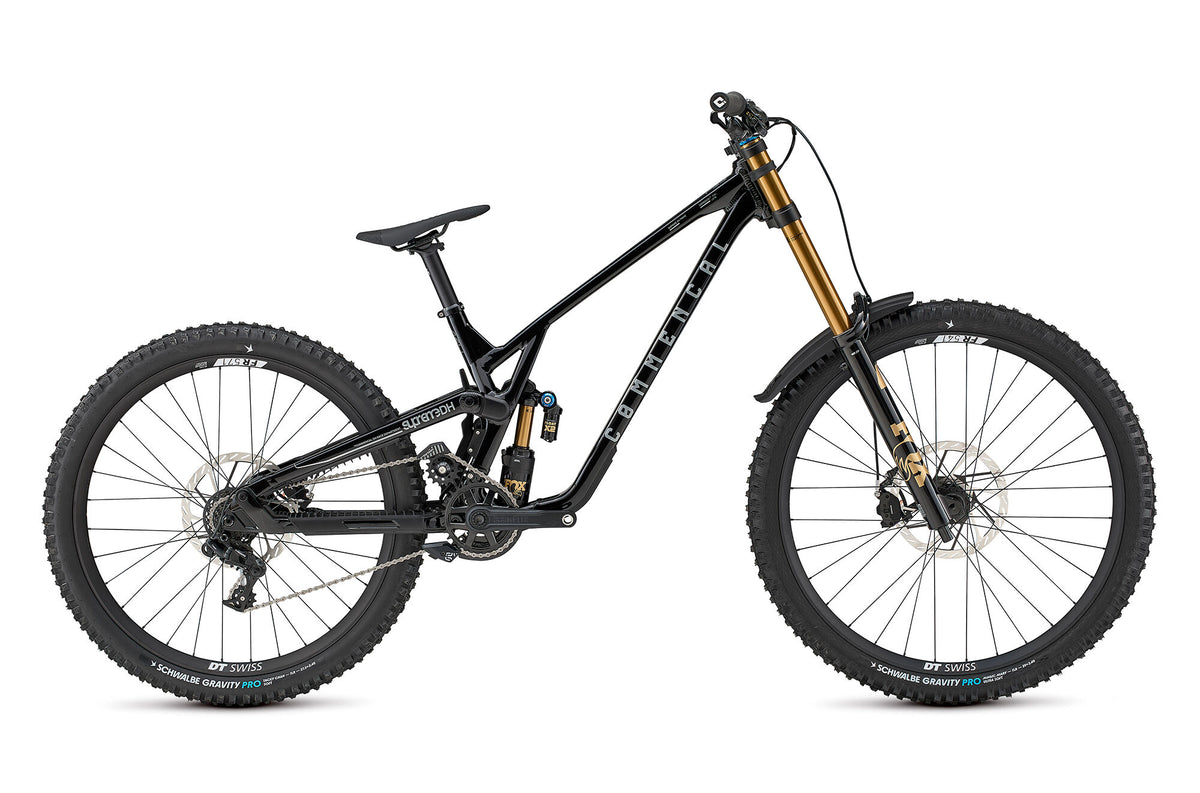

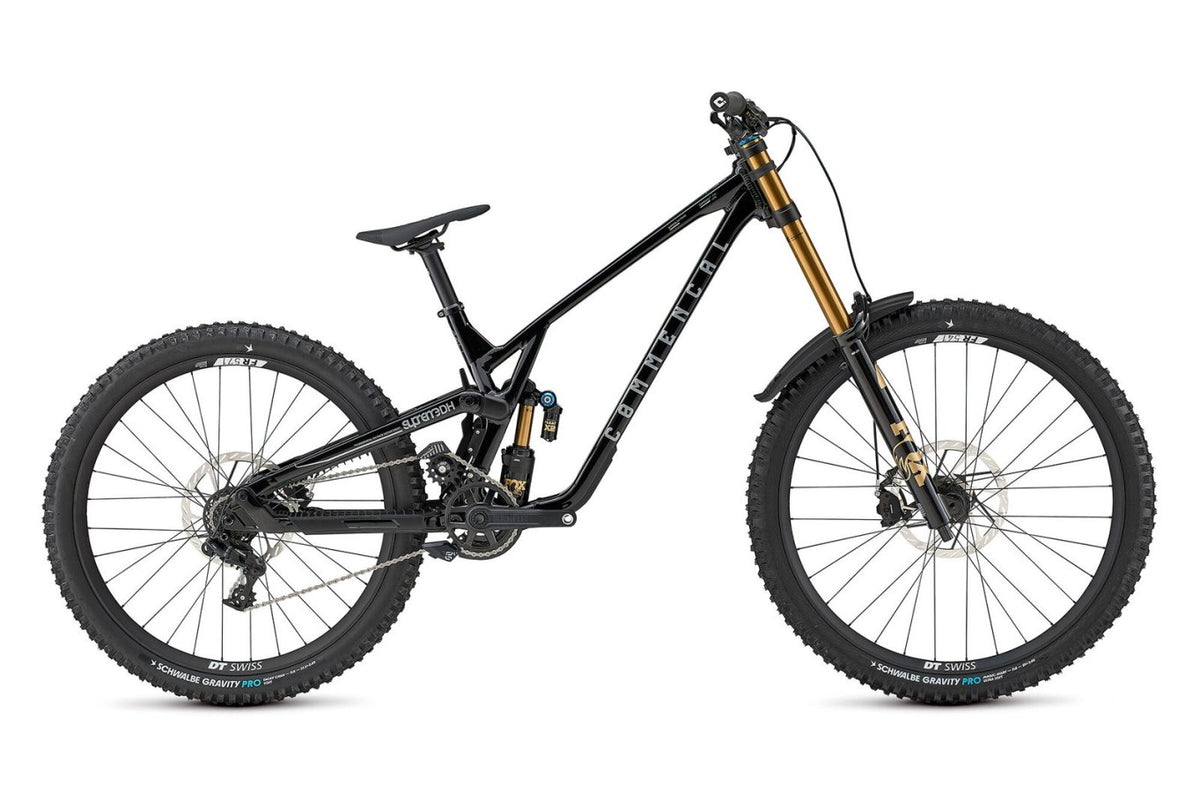

SUPREME DH V5.2, 29/27, 220 mm travel — 29/27'', Alloy 6066, triple butted tubes, T4, T6.
SHOCK
FOX FLOAT X2 Factory — 250 x 75 mm, HSC, LSC, HSR, LSR
FORK
FOX 40 Factory, 200 mm — 29", Grip X2, HSR, LSR, HSC, LSC, Boost 20 x 110 mm thru-axle, 52 mm offset, 2 tokens
HEADSET
CANECREEK Hellbender 70 — ZS56/ZS56, alloy cups, sealed bearings
STEM
BURGTEC Direct Mount — 45 mm extension, direct mount, 31.8 mm
HANDLEBAR
BURGTEC Ride Wide — 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061
GRIPS
ODI Longneck V2.1 — 132 mm, Black clamp
BRAKES
SRAM Maven Silver, 4 pistons, sintered pads — Rotors : SRAM HS2 220 mm, 6-bolts
CHAIN GUIDE
E13 LG1+ — 32-34t
REAR DERAILLEUR
SRAM GX DH — 7s
BOTTOM BRACKET
SHIMANO MT800P — BB107, pressfit
CRANKSET
E13 Helix core GR, 160 mm crank arms, DUB — Chainring : E13 Helix core GR, 34t
CHAIN
SRAM PC1110 — 11s, Black
CASSETTE
SRAM PG-720 DH — 7s, 11-25t
RIMS
Rear : DT SWISS FR541 - Front : DT SWISS FR571 — Rear : 27.5'', 32h, 30 mm inner width - Front : 29'', 32h, 30 mm inner width
HUBS
DT SWISS 350 — Rear : 32h, sealed bearings, 12 x 157 mm, Hyperglide - Front : 32h, sealed bearings, 20 x 110 mm
SPOKES/NIPPLES
DT SWISS Competition — J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black
TYRES
Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary — Rear : 27.5''x2.5'', Gravity Pro, Soft, Tubeless Ready - Front : 29''x2.5'', Gravity Pro, Ultra Soft, Tubeless Ready
SEAT POST
RIDE ALPHA — 31.6 mm, 250 mm length
SADDLE
FIZIK Gravita Alpaca X5 — 130 mm width, S-Alloy rails, Team edition
WEIGHT
19 kg / 41.88 lb — Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Pure Black — Shiny Finish
ACCESSORIES
RideWrap Lotus Pro™ protection film applied, chainstay protector, seatstay protector, downtube protector, fork fender
