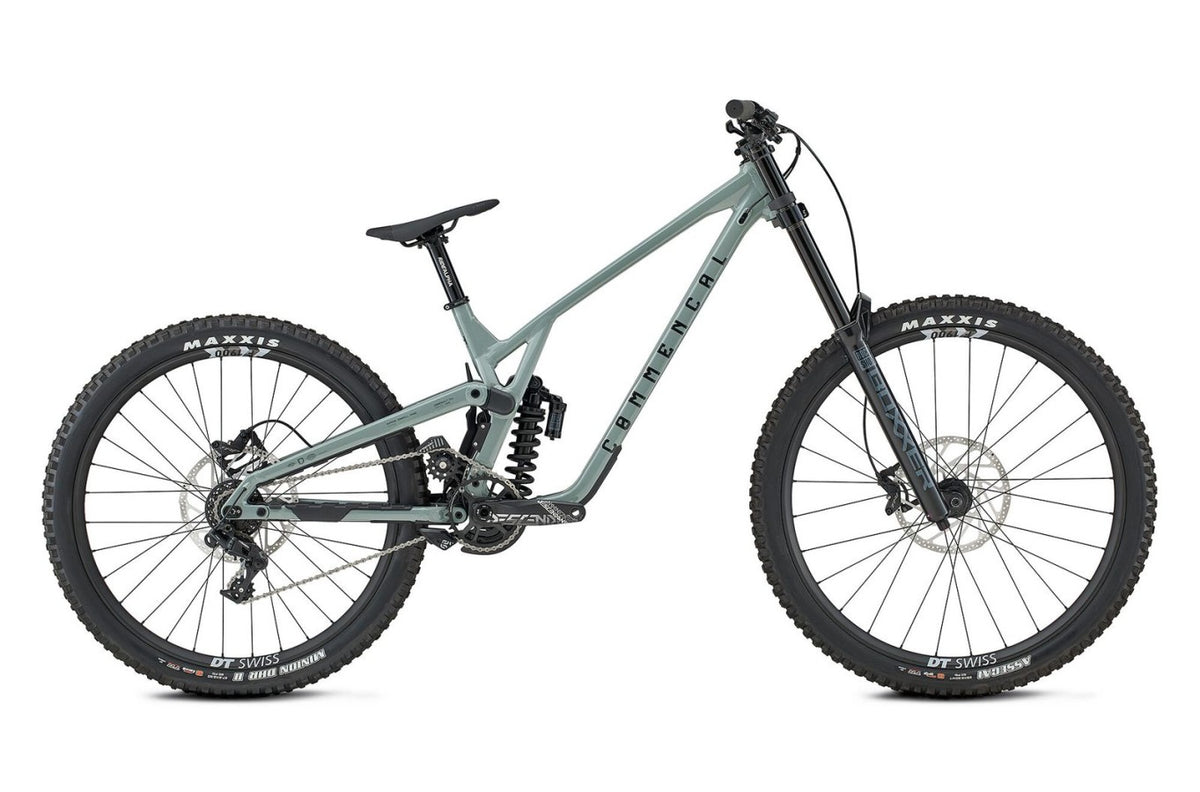

FRAME
SUPREME DH V5, 220 mm travel29/27.5'', Alloy 6066, triple butted tubes, T4, T6.
SHOCK
ROCKSHOX VIVID Coil Base250 x 75 mm, R damper, reboundSpring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XL
FORK
ROCKSHOX BOXXER Base, 200 mm29", Charger 3 RC damper, DebonAir +, rebound, LSC, Boost (20 x 110 mm), 52 mm offset, 0 Token
HEADSET
ACROS ZS56 / ZS56Alloy cups, sealed bearings
STEM
RIDE ALPHA DH 4040 mm extension, direct mount, 31.8 mm
HANDLEBAR
RIDE ALPHA R2731.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
GRIPS
RIDE ALPHA MUSHROOM132 mm, Black clamp
BRAKES
TRP DH-R EVO PRO, 4 pistons, resin padsRotors: TRP R2 223 mm, 6-bolt, 2.3 mm thickness
CHAIN GUIDE
E13 LG132-34t
REAR DERAILLEUR
SRAM GX DH7s
BOTTOM BRACKET
SRAM DUBBB107, pressfit
CRANKSET
SRAM Descendant DH, 165 mm crank arms, DUBChainring: SRAM Descendant DH, 34t
CHAIN
SRAM PC111011s, Black
CASSETTE
SRAM PG-7207s, 11-25t
RIMS
DT SWISS F1900 ClassicRear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
HUBS
DT SWISS 370 Classic LNRear: 32h, sealed bearings, 12 x 157 mm, 18t ratchet, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm
SPOKES/NIPPLES
DT SWISS CompetitionJ-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with ProLock, black
TYRES
Rear: MAXXIS Minion DHR II - Front: MAXXIS AssegaiRear: 27.5'' x 2.5'', 3C MaxxTerra, DH Casing, Tubeless Ready - Front: 27.5'' x 2.5'', 3C MaxxGrip, DH Casing, Tubeless Ready
SEAT POST
RIDE ALPHA31.6 mm, 250 mm length
SADDLE
FIZIK Gravita Alpaca X5130 mm width, S-Alloy rails, Team edition
WEIGHT
18,6 kg / 41 lbsAverage weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
COLOUR
Pyrite GreyShiny Finish
ACCESSORIES
Chainstay protector, seatstay protector, fork bumpers, downtube protector
