Frame

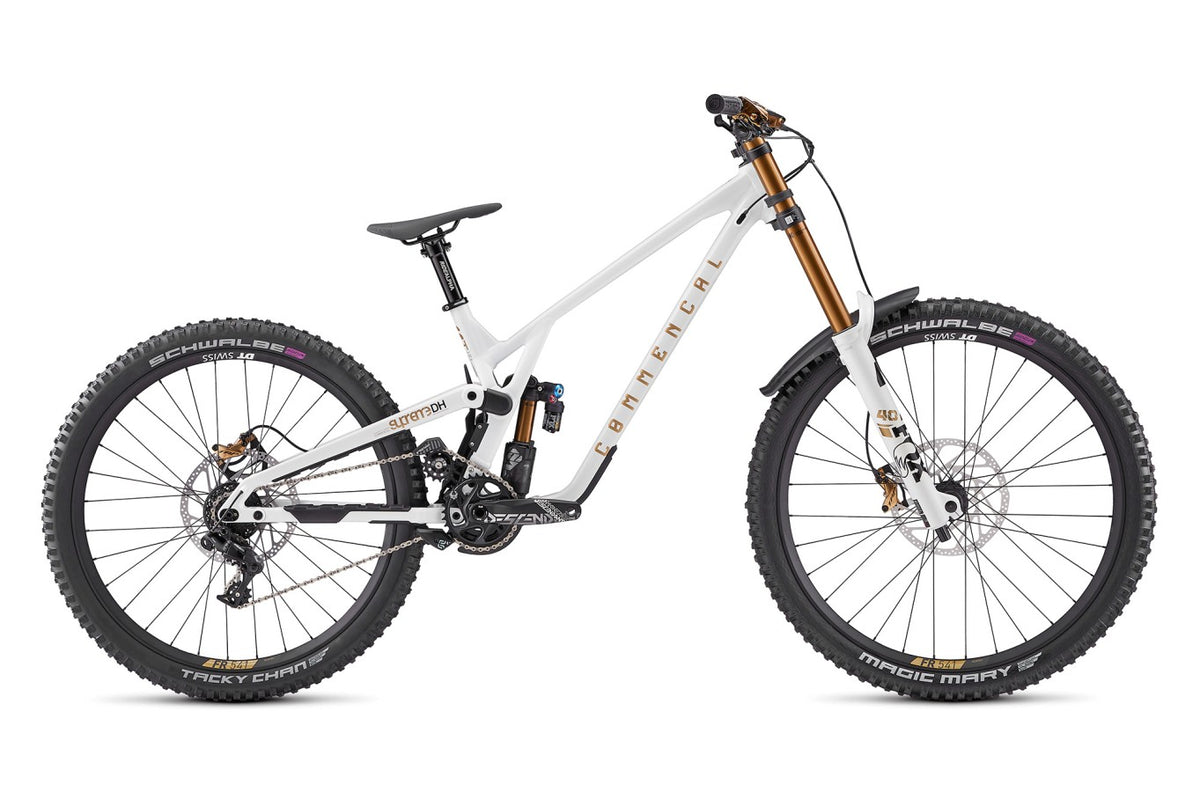

SUPREME DH V5 29/27, 220 mm travel
27/29'', Alloy 6066, triple butted tubes, T4, T6.
Rear shock
FOX Float X2 Factory
250 x 75 mm, HSC, LSC, HSR, LSR, 0.3 spacer x3
Forks
FOX 40 Factory, 200 mm travel
29", Grip2 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offset, 2 spacers.
Headset
CANECREEK ZS56/ZS56 SERIE 40
Alloy cups, sealed bearings
Stem
BURGTEC MK3
45 mm extension, direct mount, 31.8 mm
Handlebar
BURGTEC Ride Wide Alloy
31.8 mm, 800 mm width, 30 mm rise on S / M / L / XL
Grips
BURGTEC Bartender Pro Greg Minnaar Signature
Single clamp, black
Seatpost
RIDE ALPHA
31.6 mm, 250 mm
Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team edition
Front brake
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width
Rear brake
TRP DH-R EVO, 4 pistons, resin pads
Rotors: TRP R1 223 mm, 6-bolt, 2.3 mm width
Rims
DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width, 12 x 157 mm - Front: 29'', 32h, 30 mm inner width, 20 x 110 mm
Front hub
Included with wheelset
Rear hub
Included with wheelset
Tires front / rear
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless Easy
Crankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34t
Bottom bracket
SRAM DUB
Pressfit
Chainguide
E13 LG1
32-34t
Derailleur
SRAM GX Eagle
7s
Shifters
SRAM GX Eagle
7s
Cassette
SRAM PG-720 DH
7s, 11-25t
Weight (kg)
18,1 kg / 39,9 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Note
Chainstay protector, seatstay protector, fork bumpers, downtube protector, Fox 40 fender
*Please note that bike specs are subject to change without prior notice
