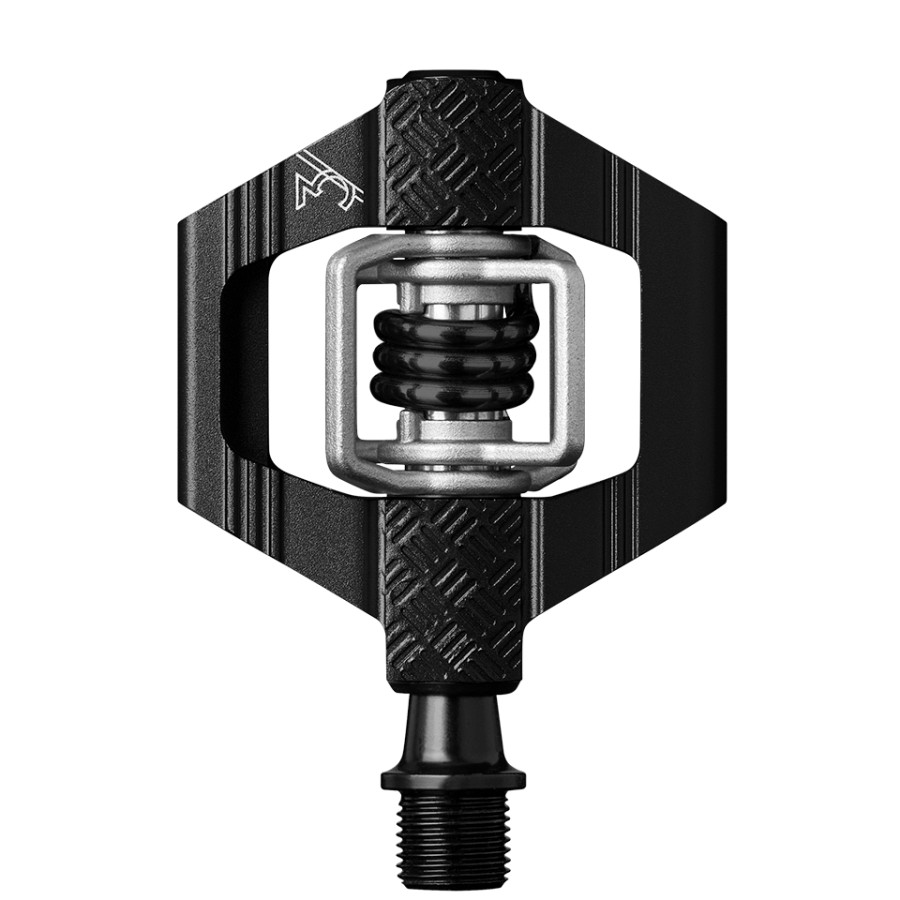

Updated with new body size and shape
Ribbed body for add traction
Traction pad compatible included
Forged scm 435 chromoly steel axle, 6061-T6 heat-treat aluminium body with a 300-series stainless steel spring and cast steel wings
4-sided entry and superior mud-shedding design
Customizable float & release angle (15°/20°)
Premium enduro cartridge bearing, igus LL-glide DU bushing and double seal system for improved longevity and service life
Includes premium brass cleats and adjustable shims
5 year warranty
52 mm q-factor
340 g per pair
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
