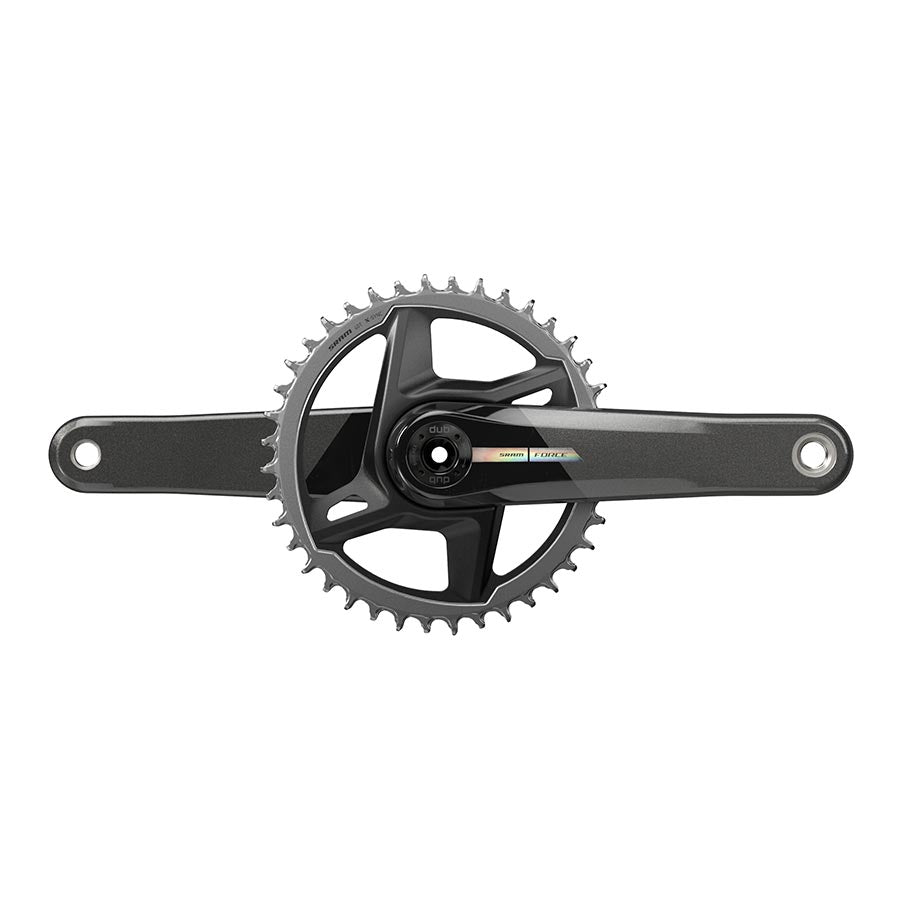

SRAM, Force D2 1x, Crankset, Speed: 12, Spindle: 28.99mm, BCD: Direct Mount, 40, DUB, 172.5mm, Black, Road Disc
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description
A single chainring with a wide-range cassette is a wonderfully clean way to tackle so many disciplines. Gravel, TT, tri or crits: just pick the right chainring size and go. Lightweight and strong direct mount chainrings feature X-SYNC tooth technology to maximize chain retention, and they bolt to carbon arms with a spectacular but subtle finish.
Single-ring drivetrain simplifies functionality and reduces weight
Direct mount chainrings are lighter and stiffer than traditional spider-based rings
SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
DUB bottom bracket adds durability and simplicity
Can be upgraded to a power meter
SRAM Model ID: FC-FRC-1-D2
Attributes
BCD
Direct Mount
BB Inclusion
No
Chainline
45mm
Teeth
40
Crank Spindle Diameter
28.99mm
Crank Arm Length
172.5mm
Interface
DUB
Crankset Material
Carbon
Pedals Thread
9/16''
Primary Color
Black
Speed
12
Drivetrain Spacing
Road Disc
