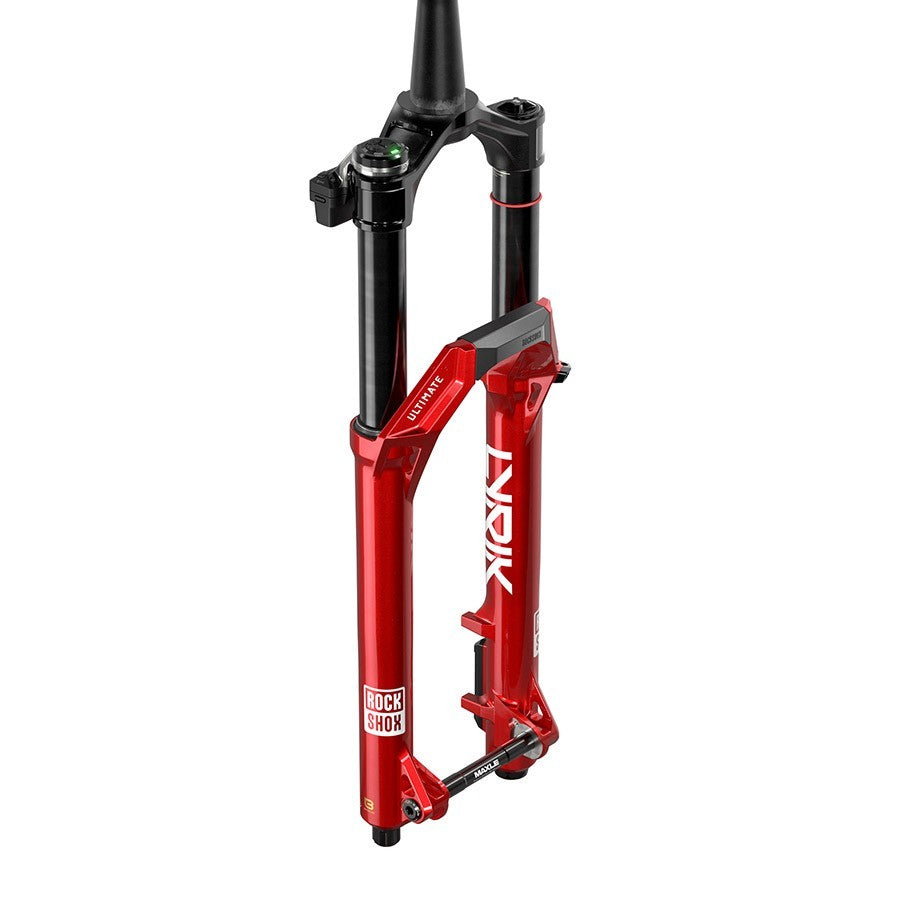

Any trail, any time. Light where it counts and ruthless on the descents. With Flight Attendant on board, Lyrik Ultimate is unrivaled—its improved algorithm personalizes every adjustment to your preferences, terrain, and effort, so you can charge without hesitation.
LinearXL air spring backed by Adjustable Bottom Out (ABO) for end-stroke control
ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval
Flight Attendant Charger 3.2 damper provides riders with race-winning efficiency and control and achieves virtually silent performance, keeping riders focused on the trail
ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue
SRAM Model ID: FS-LYRK-UFA-E1
Attributes
Brake Type
Disc
Damping
Charger 3.2 Flight Attendant W/ButterCups
Damping Adjustments
Extl rebnd, E-cont. LS comp and 3 pos comp (open/pedal/firm)
Crown Material
Aluminum
Rake
44mm
Maximum Rotor Size
220mm
Maximum Tire Width
70mm
Spring Adjustments
Air pressure, Bottomless tokens
Spring Type
Linear XL W/ButterCup
Steerer Tube
1-1/8''-1.5''
Steerer Tube Material
Aluminum
Lower Tubes Material
Magnesium
Stanchions Material
Aluminum
Travel
160mm
Wheel Diameter
29''
Stanchions Diameter
35mm
Axle/Hub spacing
15x110mm TA
e-Bike approved
Yes
