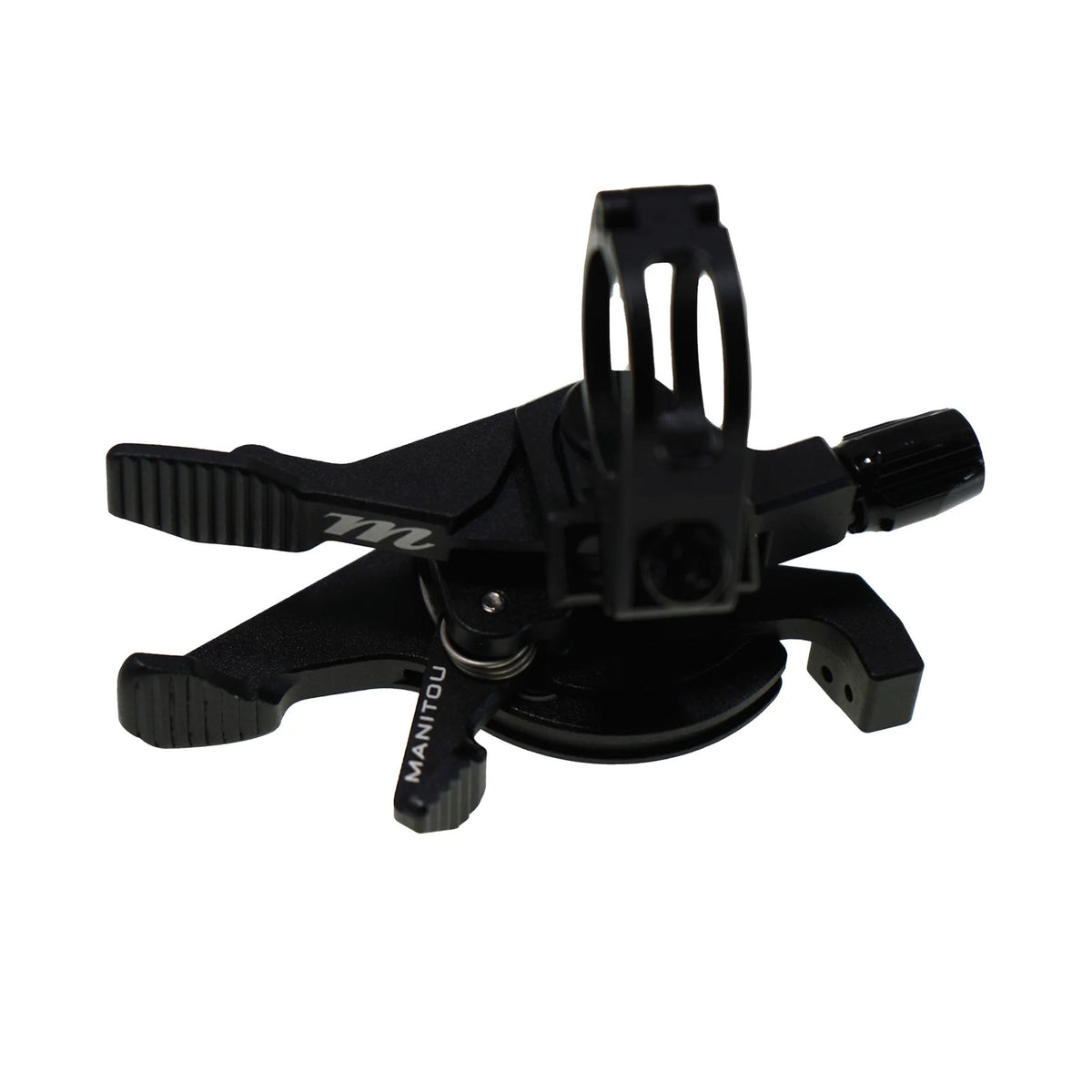

Manitou Engineers worked diligently to produce a premium level remote system to ensure the rider’s complete control of the suspension. ACE and DEUCE combo is a Manitou made underbar remote lockout that controls fork, shock and dropper posts. The Ace lever controls the dropper post while the Deuce lever controls both the fork and shock. The two levers are stackable and can be built into the configuration that makes the most sense for each individual rider. In other words, the Ace can be built above or below the Deuce and either can be built as a stand-alone lever as well. In an effort to minimize weight the lever uses 3mm housing and .9mm cable however, is compatible also with standard 4mm housing and 1.2mm cable.
ACE: •Usage: Underbar remote dropper post lever •Clamp: Left-hand, under handlebar (12mm lateral adjustment) - 22.2mm handlebar clamp (standard) - Hayes Peacemaker for Matchmaker X (with standard clamp removed) Color: Matte black anodized •Adjustments: Cable fixing screw with barrel adjuster. •Integration: Stackable with Deuce lever (conversion kit available separately) •Cable Pull: 7mm •Included AM: Manitou SL .9mm D head cable with lightweight 3mm housing •Weight: 42g •Other: Compatible with standard shift cable and 4mm housing
DEUCE:
•Usage: Suspension lockout remote lever, thumb-actuated •Clamp: Left-hand, under handlebar (12mm lateral adjustment) - 22.2mm handlebar clamp (standard) - Hayes Peacemaker for Matchmaker X (with standard clamp removed) •Color: Matte black anodized Lockout control: Fork-only, shock-only, or dual-suspension •Integration: Stackable with Ace lever (conversion kit available separately) •Configuration: 18mm pull for 3-position damper •Options: 18mm pull for 2-position damper •Included AM: Two (2) SL cable kits with lightweight cable & housing, inline barrel adjusters •Weight: 55g •Compatibility: MILO-equipped Manitou and 18mm cable pull product •Other: Compatible with standard shift cable and 4mm housing
