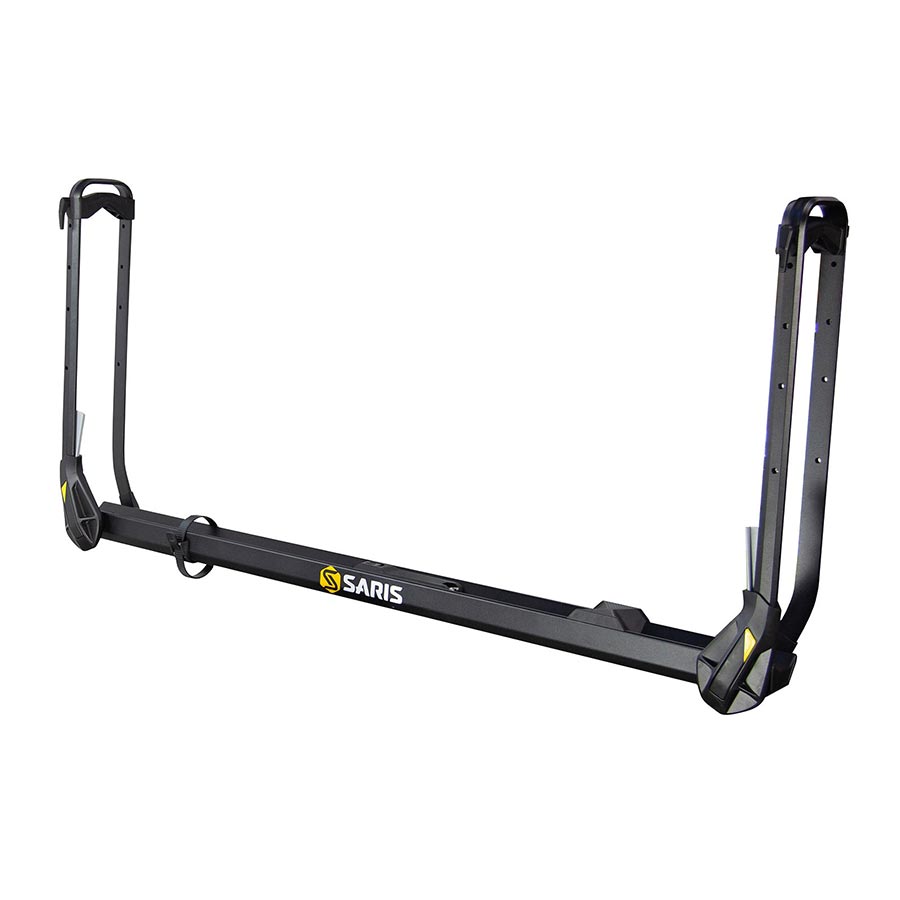

One bike tray for the MHS Base hitch rack. Compatible with MHS 1+1, MHS 2+1, and MHS 3+1 Bases only.
Max Bike Weight *100lb when paired with MHS 2+1 base 4620. 80 lb when paired with MHS 1+1 or 3+1 bases. 35 lb when in position #3 on a 3+1 base. Capacity limited to 80 lb when using in conjunction with MHS add-on
Tray weight: 30 lb.
Adjustable wheel block accommodates wheel sizes from 20 to 29 inches.
Fits tires up to 5'' wide.
Compatible with wheelbases up to 53''.
Integrated centralized locking cable secures bike to the tray.
Dual-arm bike holders secure bike with zero frame and zero fork contact.
Attributes
Bike Attachment
On wheels
Maximum Tire Width
5''
Number of Bikes
1
