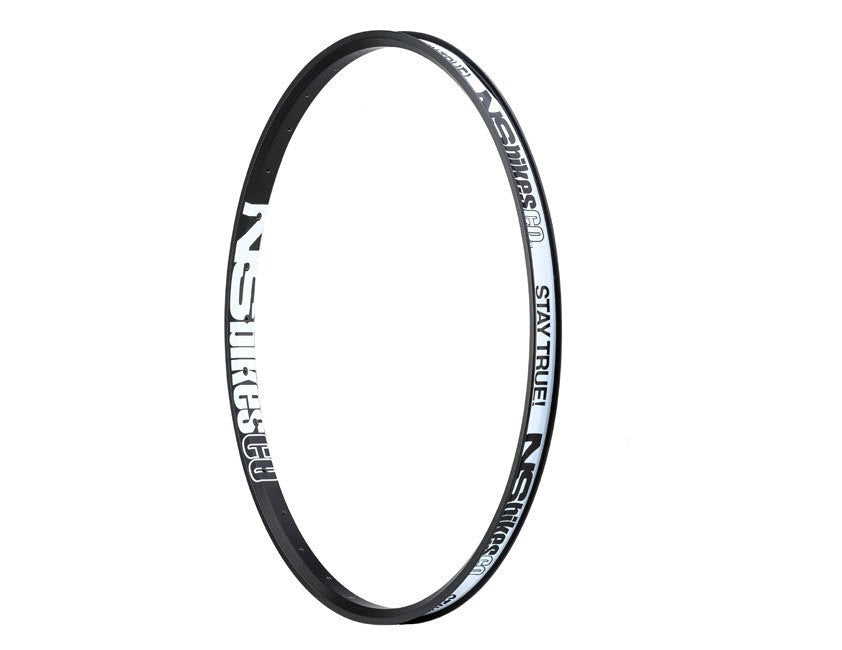

The Fundamental rim is a made from high quality AL6061-T6 and has a pinned-joint. The really wide and low profile is designed especially for freestyle mountain bikes. Perfect for dirt / street / slopestyle / Freeride / heavy duty Enduro. By carefully designing the wall thickness distribution it was possible to make a strong and light rim with no eyelets. The rims come with wide NS rim tape that is high pressure resistant. Another cool feature is the great price!
Specs
Material: AL6061-T6, pinned joint
Width: 32mm
Height: 16mm
Lacing: Designed for standard 3 cross lacing, offset spoke drilling, 2 mm, NS Bikes quality high pressure rim tape straps included
Valve hole: AV / Schrader
Disc brake only
Size: 26” (559mm)
ERD: 543mm
Drilling: 32h
Weight: 26”: ~620g +15g NS rim tape
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
