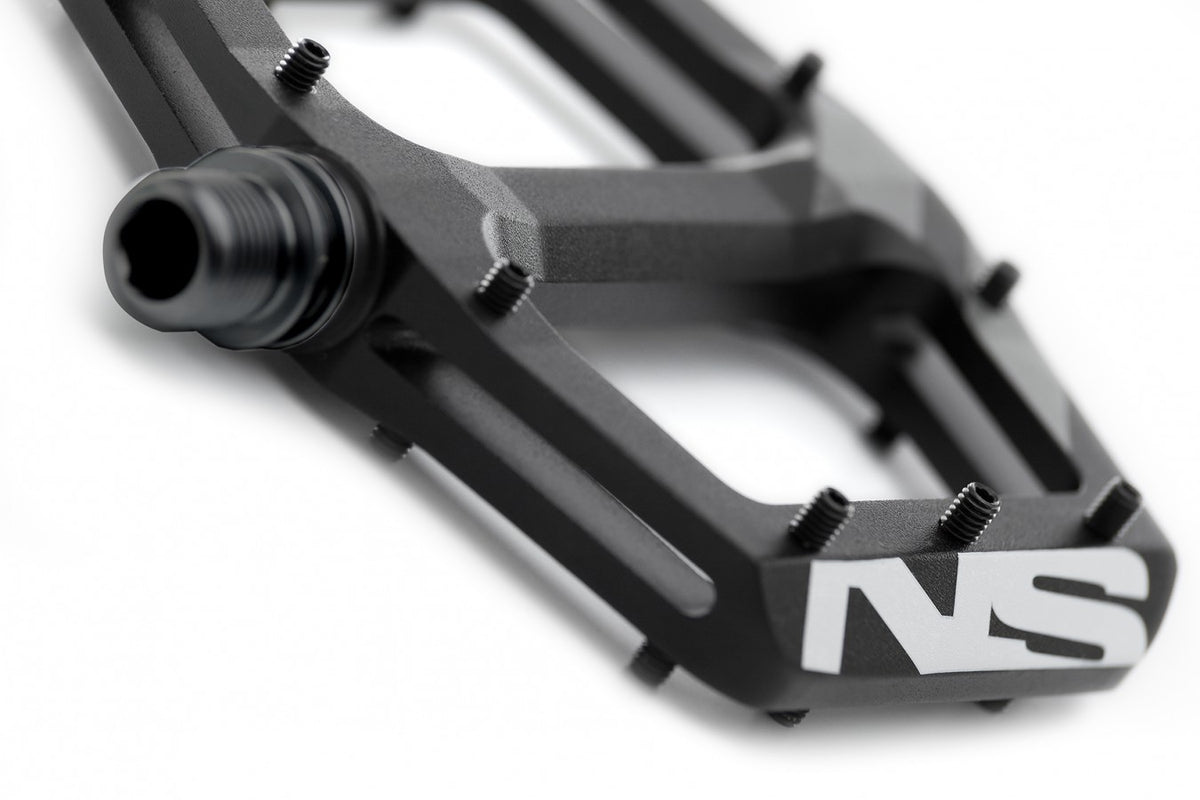

These cool pedals come with a big and low-profile platform that provides tons of grip. At the same time, the weight still remains below 400 grams. Perfect for any application and what's important - they offer legendary strength & reliability and will take years of the worst beating. A combination of varied pin height and special cage shape guarantee good grip in all conditions including wet muddy tracks, yet still allow for relatively easy foot position adjustments when needed. The pedals run on a combination of sealed bearings and bushings. The Radiance were chosen as the "Best overall pedals" out of 17 platform pedals in a group test conducted by Singletrack magazine.
AL6061-T6 fully CNC machined huge flat and very low profile platform
Platform size: 103mm x 97mm x 13mm (22mm including pins)
Thickness: 13mm platform w/o pins , 14-16mm thick around the axle area, 22mm one big flat surface formed by pins
Two sealed bearings and bushing system
Spindle interface: 8mm allen hex key slot.
Axle thread size: standard 9/16"
11 removable pins per side, 4.5mm high at the ends and around 3mm high close to the axle area.
Supplied pins: M4 x 0.7mm standard, 7mm long, off-the-shelf available worldwide in a variety of lengths.
Weight: ~395g (oilrub 405g, oilslick 410g)
