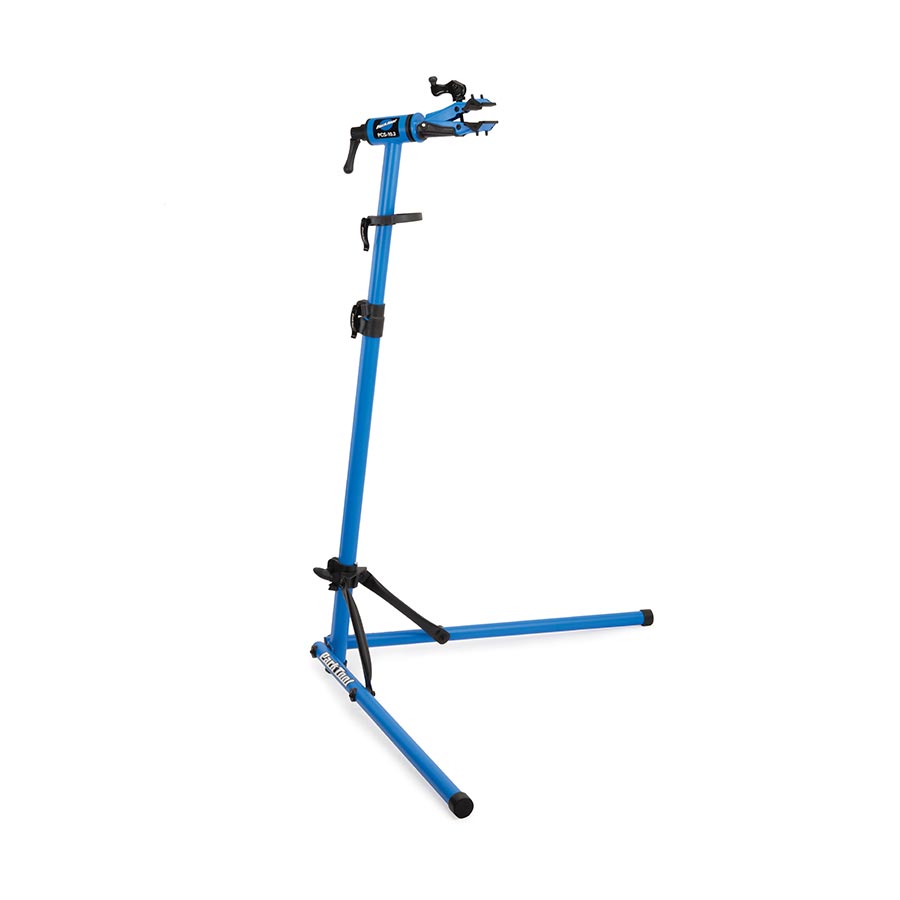

Cam-actuated micro-adjustable clamp fits 7/8'' to 3'' (22 mm–76 mm) diameter tubes and seat posts of any shape and material, including aero posts and dropper posts
Narrow clamping jaws (2.7''/70 mm) fit into tight areas or on short seat posts
Rubber saddle pad allows bikes to be hung by the saddle for quick adjustment or storage
Durable, textured powder coat finish
Integrated height-adjustable parts tray
Height adjustment collar features accessory ports for compatibility with the #106 Work Tray or PTH-1 Paper Towel Holder (both sold separately)
Maximum weight capacity*: 80 lbs. (36 kg)
Height adjustable from 39'' to 57'' (990 mm–1450 mm) using convenient quick-release lever
Base when open forms a triangle of 36'' x 36'' x 48'' (920 mm x 920 mm x 1210 mm)
Folds down to 45'' x 14.5'' (1140 mm x 370 mm)
Weight: 16 lbs. (7.2 kg)
