100mm, 1-1/8''-1.5'', 15x100mm TA, Rake: 40mm, Black
140mm, 1-1/8''-1.5'', 15x100mm TA, Rake: 40mm, Black
100mm, 1-1/8''-1.5'', 15x100mm TA, Rake: 40mm, Red
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description

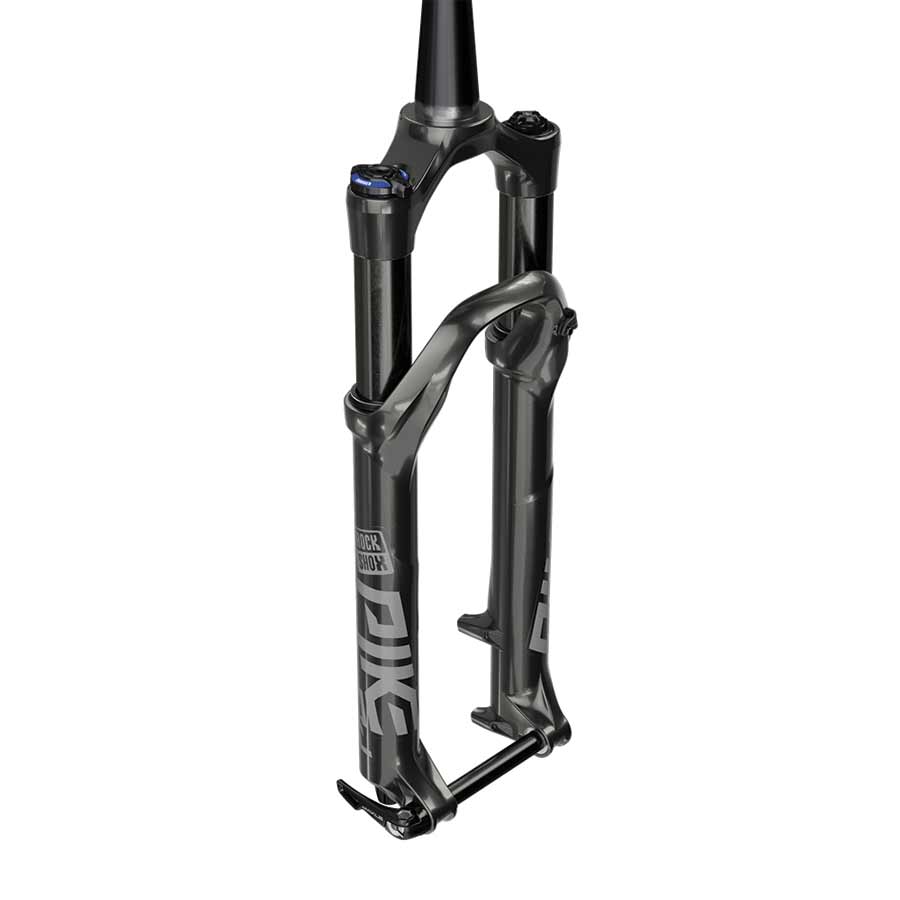

Built on a stout 35mm chassis and includes a custom-tuned Charger damper and specific Solo Air system designed for more bottom-out progression than you'll ever need, because your trails eventually require some landings.
Proven Charger damper with specific Dirt Jumping/Slopestyle tune
Specific Solo Air top cap for extra bottom-out progression
Accepts Bottomless Tokens to easily custom tune the air spring performance to best match you own riding style and suspension preference
SRAM Model ID: FS-PIKE-DJ-A4
Attributes
Brake Type
Disc
Damping
Charger DJ
Damping Adjustments
External rebound, low speed compression
Crown Material
Aluminum
Rake
40mm
Maximum Rotor Size
220mm
Maximum Tire Width
66mm
Spring Adjustments
Air pressure, Bottomless tokens
Spring Type
Air
Steerer Tube
1-1/8''-1.5''
Steerer Tube Material
Aluminum
Lower Tubes Material
Magnesium
Stanchions Material
Aluminum
Wheel Diameter
26''
Stanchions Diameter
35mm
Axle/Hub spacing
15x100mm TA
e-Bike approved
No
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
