Prime Bicycles

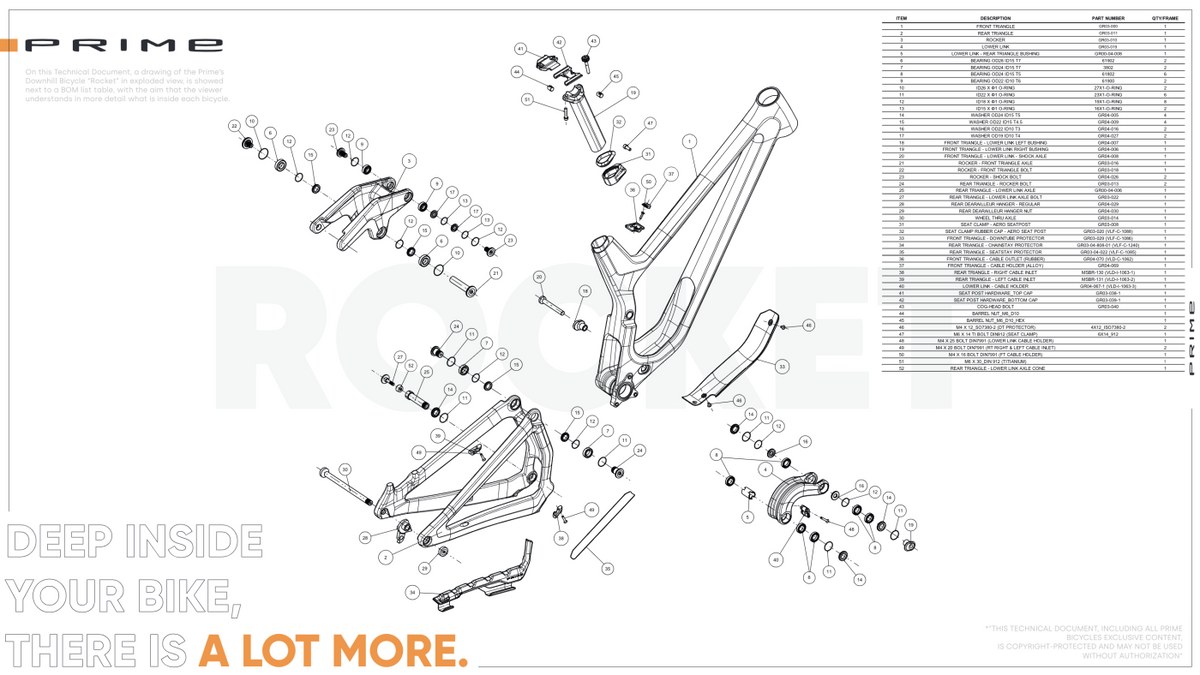

ROCKET replacement parts
SKU :
GR00-04-008
$9.99
Stock
Model
5- LOWER LINK - REAR TRIANGLE BUSHING (qty/frame:x1)
6- BEARING OD28 ID15 T7 (qty/frame:x2)
7- BEARING OD24 ID15 T7 (qty 1)
8- BEARING OD24 ID15 T5 (qty/frame:x6)
9- BEARING OD22 ID10 T6 (qty/frame x2)
10- ID26 X 1 O-RING (qty/frame x2)
11- ID22 X 1 O-RING (qty/frame x6)
12- ID18 X 1 O-RING (qty/frame x8)
13- ID15 X 1 O-RING (qty/frame x2)
14- WASHER OD24 ID15 T5 (w/ O-ring)(qty/frame x4)
15- WASHER OD24 ID15 T5 (w/ O-ring) (qty/frame x4)
16- WASHER OD22 ID10 T3 (w/ O-ring)(qty/frame x2)
17- WASHER OD19 ID10 T4.5 (w/ O-ring) (qty/frame x2)
18- FRONT TRIANGLE - LOWER LINK LEFT BUSHING (qty/frame x1)
19- FRONT TRIANGLE - LOWER LINK RIGHT BUSHING (qty/frame x1)
20- FRONT TRIANGLE - LOWER LINK - SHOCK AXLE (qty/frame x1)
21- ROCKER - FRONT TRIANGLE AXLE (qty/frame x1)
22- ROCKER - FRONT TRIANGLE BOLT (qty/frame x1)
23- ROCKER - SHOCK BOLT (qty/frame x2)
24- REAR TRIANGLE - ROCKER BOLT (qty/frame x2)
25- REAR TRIANGLE - LOWER LINK AXLE (qty/frame x1)
27- REAR TRIANGLE - LOWER LINK AXLE BOLT (qty/frame x1)
28- REAR DEARAILLEUR HANGER - REGULAR (qty/frame x1)
29- REAR DEARAILLEUR HANGER NUT (qty/frame x1)
30- WHEEL THRU AXLE (qty/frame x1)
31- SEAT CLAMP - 31.6 SEATPOST (qty/frame x1)
32- SEAT CLAMP RUBBER CAP - 31.6MM SEAT POST (qty/frame x1)
33- FRONT TRIANGLE - DOWNTUBE PROTECTOR (qty/frame x1)
34- REAR TRIANGLE - CHAINSTAY PROTECTOR (qty/frame x1)
35- REAR TRIANGLE - SEATSTAY PROTECTOR (qty/frame x1)
36- FRONT TRIANGLE - CABLE OUTLET (RUBBER) (qty/frame x1)
37- FRONT TRIANGLE - CABLE HOLDER (ALLOY) (qty/frame x1)
38- REAR TRIANGLE - RIGHT CABLE INLET (qty/frame x1)
39- REAR TRIANGLE - LEFT CABLE INLET (qty/frame x1)
40- LOWER LINK CABLE HOLDER (qty/frame x1)
41- SEATPOST HARDWARE TOP CAP (qty/frame x1)
42- SEATPOST HARDWARE BOTTOM CAP (qty/frame x1)
43- COG-HEAD BOLT (qty/frame x1)
44- BARREL NUT M6 D10 (qty/frame x1)
45- BARREL NUT M6 D10 HEX (qty/frame x1)
46- M4X12 SO7380-2 (DT PROTECTOR) (qty/frame x2)
47- M6 X 14 TI BOLT DIN912 (SEAT CLAPM) (qty/frame x1)
48- M4 X 25 BOLT DIN7991 (LOWER LINK CABLE HOLDER) (qty/frame x2)
49- M4 X 20 BOLT DIN7991 (RT RIGHT & LEFT CABLE INLET) (qty/frame x2)
50- M4 X 16 BOLT DIN7991 (FT CABLE HOLDER) (qty/frame x1)
51- M6 X 30_DIN912 (TITANIUM) (qty/frame x1)
52- REAR TRIANGLE - LOWER LINK AXLE CONE (qty/frame x1)
Select...
