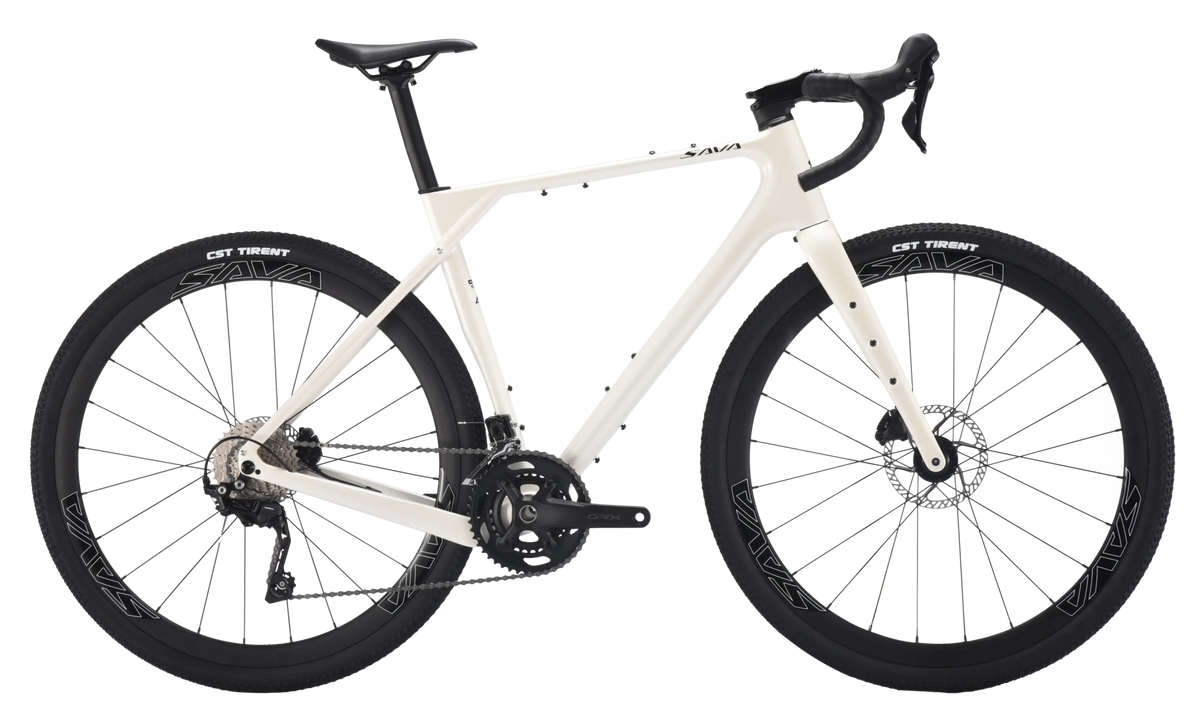

SAVA Voyager GT4

Whether you're looking to maximize the value proposition or are gravel curious and looking to satisfy that itch, the VOYAGER GT4 answers the call. The VOYAGER GT4 takes carbon adventure into true gravel territory, building on the versatility of the U6 with a drop-bar cockpit and a complete Shimano GRX drivetrain designed specifically for mixed-surface riding.

A Shimano GRX RX400 2x10-speed drivetrain brings greater control over your cadence with a versatile 46/30T crankset and 11-34T cassette. Compared with the U6’s single-chainring setup, the GT4’s 2x gearing offers a broader selection of closely spaced gears, giving you the efficiency to maintain speed on open roads while staying ready for changing gradients and loose terrain.

Purpose-built Shimano GRX hydraulic disc brakes and controls put shifting and braking naturally at your fingertips from the drop-bar riding position, delivering confident modulation and control whether you’re descending gravel, navigating technical sections or pushing the pace on pavement.

Built around the proven carbon VOYAGER frame and fork, the GT4 pairs strength and rider comfort with integrated mounting points for added adventure versatility. 40mm tires with clearance for up to 45C provide the grip and confidence to leave smooth pavement behind, while a T47 threaded bottom bracket adds practical durability and serviceability for the miles ahead.

Frame	Carbon optimized for strength and rider comfort with integrated mounting points
Fork	Carbon with tapered steerer, internal hose routing, 12mmX100mm thru axle
Rear/Front Derailleurs	Shimano GRX RX400
Front Chainwheel	Shimano GRX RX600 46-30
Bottom Bracket	T47 Threaded
Chain	KMC X10R
Cassette	Sugek 11-34 10 Speed
Shifter	Shimano GRX RX400 2X
Brakes	Shimano GRX RX400
Wheel	SAVA Alloy 36mm
Tire	CST 40mm
Handlebar	Alloy Gravel
Stem	Alloy
Seatpost	Alloy
Saddle	SAVA Performance Short
Sizes	47cm / 49cm / 51cm / 53.5cm / 55cm / 56cm / 58cm
Colours	Matte Black, Eggshell White

Geometry (mm)	47 cm	49 cm	51 cm	53.5 cm	56 cm	58 cm
Alpha Size	XS	S	M	L	XL	XXL
Stack	534	562	581	609	628	637
Reach	360	369	380	390	400	410
TopTube length	512	530	558	576	592	605
HeadTube Angle	70.3°	70.3°	70.3°	70.3°	70.3°	70.3°
Seat tube Length	470	490	510	535	560	580
Seat tube Angle	74°	74°	73°	73°	73°	73°
Bottom Bracket Drop	75	75	75	75	75	75
Stand Over Height	770	792	811	838	852	870
Front Centre	582	601	618	638	655	664
Chainstay Length	435	435	435	435	435	435
Fork Offset	50	50	50	50	50	50
Trail (40mm tire)	74.7	74.7	74.7	74.7	74.7	74.7
tire room	62	62	62	62	62	62
Recommended MAX (Measured) Tire Size	45	45	45	45	45	45
Wheelbase	1001	1020	1038	1058	1074	1088
