Overview
Product Description
Overview

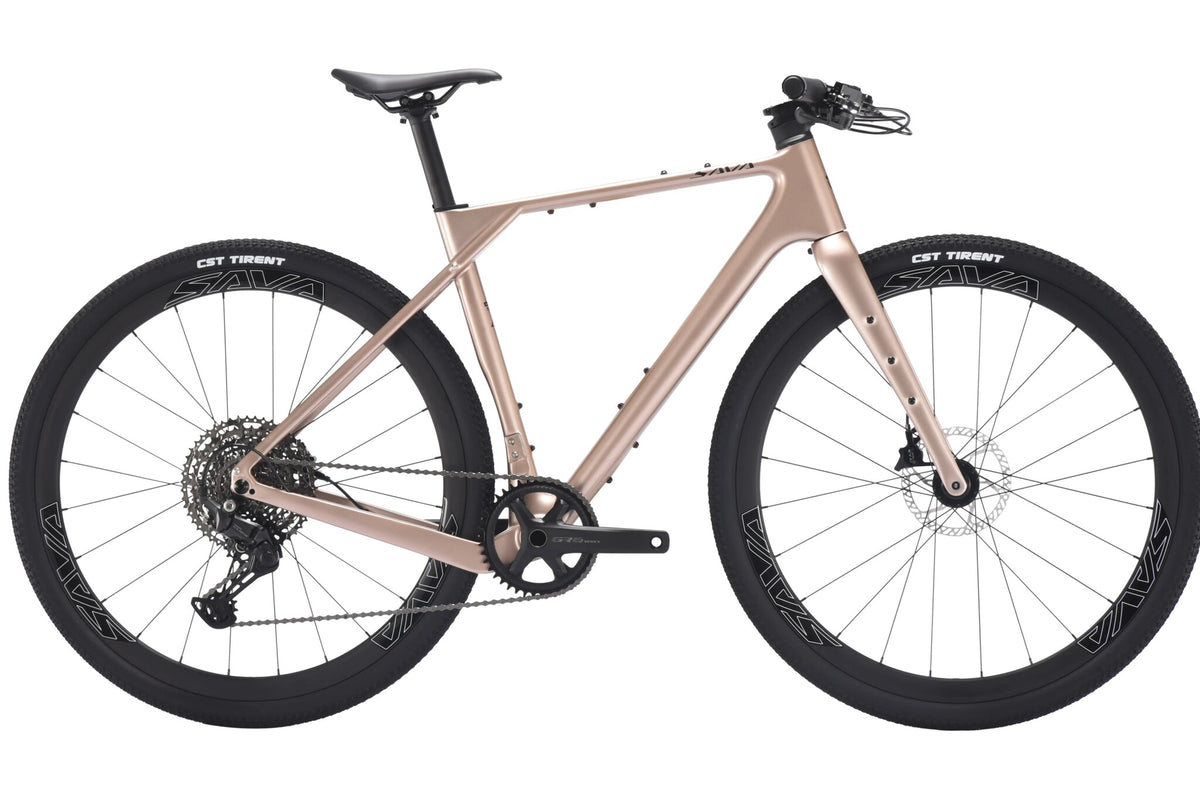

The VOYAGER U6 is what happens when a gravel bike meets the versatility of a fitness ride.
A Shimano CUES 1x11-speed drivetrain adds an extra gear and pairs with an expansive 11-50T cassette, giving you noticeably more climbing range when the road gets steeper while keeping the simplicity and reliability of a single-chainring setup.
Built around the same lightweight carbon frame and fork, the U6 combines responsive efficiency with confident flat-bar handling. Hydraulic disc brakes provide consistent control in changing conditions, while wide 40mm tires deliver grip and comfort across pavement, paths and gravel.
With clearance for tires up to 45C and integrated mounting points for added carrying versatility, the VOYAGER U6 is ready to move effortlessly from daily riding to bigger weekend adventures.
Specs
Frame
Carbon optimized for strength and rider comfort with integrated mounting points
Fork
Carbon with tapered steerer, internal hose routing, 12mmX100mm thru axle
Rear/Front Derailleurs
Shimano CUES U6020
Front Chainwheel
Senicx 42T
Bottom Bracket
T47 Threaded
Chain
Shimano LG500
Cassette
Shimano LG400 11-50T
Shifter
Shimano CUES U60000 11S
Brakes
PRO Hydraulic Disc
Wheel
SAVA Alloy 36mm
Tire
CST 40mm
Handlebar
Alloy Flat
Stem
Alloy
Seatpost
Alloy
Saddle
SAVA Performance Short
Sizes
47cm / 49cm / 51cm / 53.5cm / 55cm / 56cm / 58cm
Colours
Matte Black, Rose Gold, Slate Grey, Matte White
Geometry
Geometry (mm)
47 cm
49 cm
51 cm
53.5 cm
56 cm
58 cm
Alpha Size
XS
S
M
L
XL
XXL
Stack
534
562
581
609
628
637
Reach
360
369
380
390
400
410
TopTube length
512
530
558
576
592
605
HeadTube Angle
70.3°
70.3°
70.3°
70.3°
70.3°
70.3°
Seat tube Length
470
490
510
535
560
580
Seat tube Angle
74°
74°
73°
73°
73°
73°
Bottom Bracket Drop
75
75
75
75
75
75
Stand Over Height
770
792
811
838
852
870
Front Centre
582
601
618
638
655
664
Chainstay Length
435
435
435
435
435
435
Fork Offset
50
50
50
50
50
50
Trail (40mm tire)
74.7
74.7
74.7
74.7
74.7
74.7
tire room
62
62
62
62
62
62
Recommended MAX (Measured) Tire Size
45
45
45
45
45
45
Wheelbase
1001
1020
1038
1058
1074
1088
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
