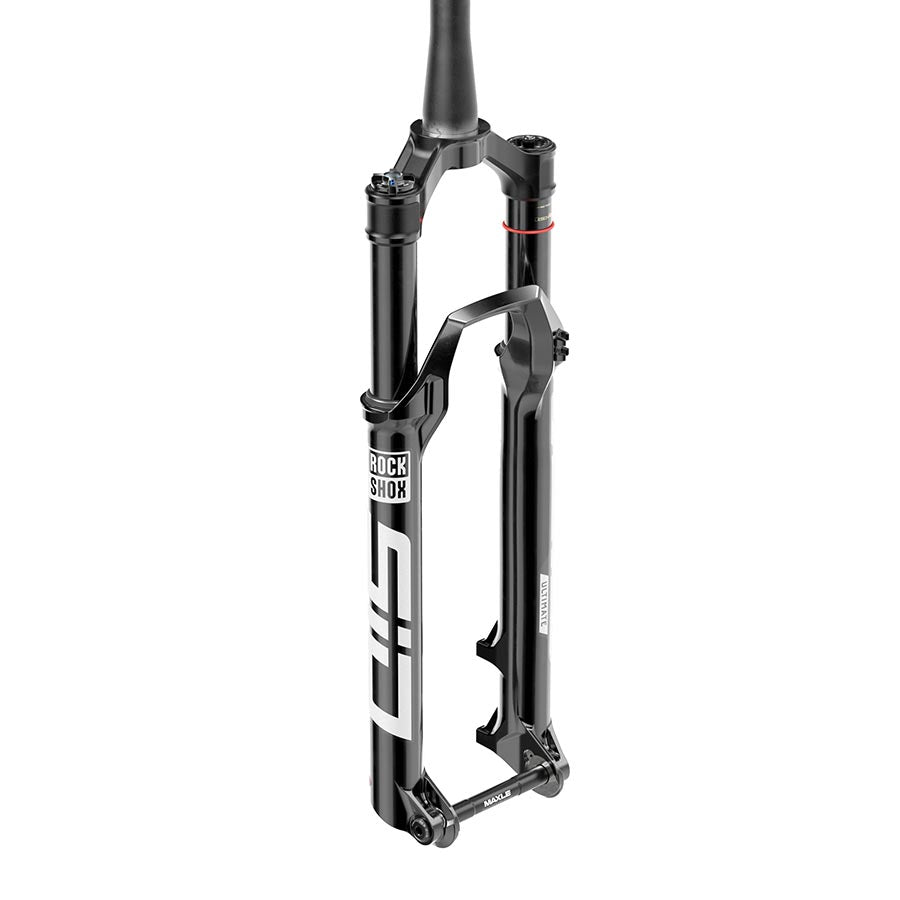

The new lighter-than-ever SID Ultimate is crafted around a rigid 35mm chassis and equipped with the lightest performance damper RockShox has ever made.
Completely redesigned Charger Race Day 2 2P damper featuring two compression positions: Open or a rock-solid Lockout.
DebonAir+ provides more small-bump sensitivity and mid-stroke support.
Updated Bushing Package maximizes the fork’s bushing overlap, reducing friction and creates the smoothest ride possible.
''Blue Crush'' signature colorway or Ultimate High Gloss Black featuring Pearl White graphics package.
Bolt-in torque cap adapters included for use with standard hub end caps.
SRAM Model ID: FS-SID-ULT2-D1
Attributes
Brake Type
Disc
Damping
Charger Race Day
Damping Adjustments
External rebound, 2 pos remote comp (open/lock)
Crown Material
Aluminum
Rake
44mm
Maximum Rotor Size
220mm
Maximum Tire Width
66mm
Spring Adjustments
Air pressure, Bottomless tokens
Spring Type
DebonAir
Steerer Tube
1-1/8''-1.5''
Steerer Tube Material
Aluminum
Lower Tubes Material
Magnesium
Stanchions Material
Aluminum
Travel
120mm
Wheel Diameter
29''
Stanchions Diameter
35mm
Axle/Hub spacing
15x110mm TA
Remote
Sold Separately
e-Bike approved
No
