Front, Post mount, Disc: Not included, 307g, Black
Free & Fast Shipping
get it now
Tested & approved
by our riders
Easy returns
for peace of mind
Share on :
Overview
Product Description

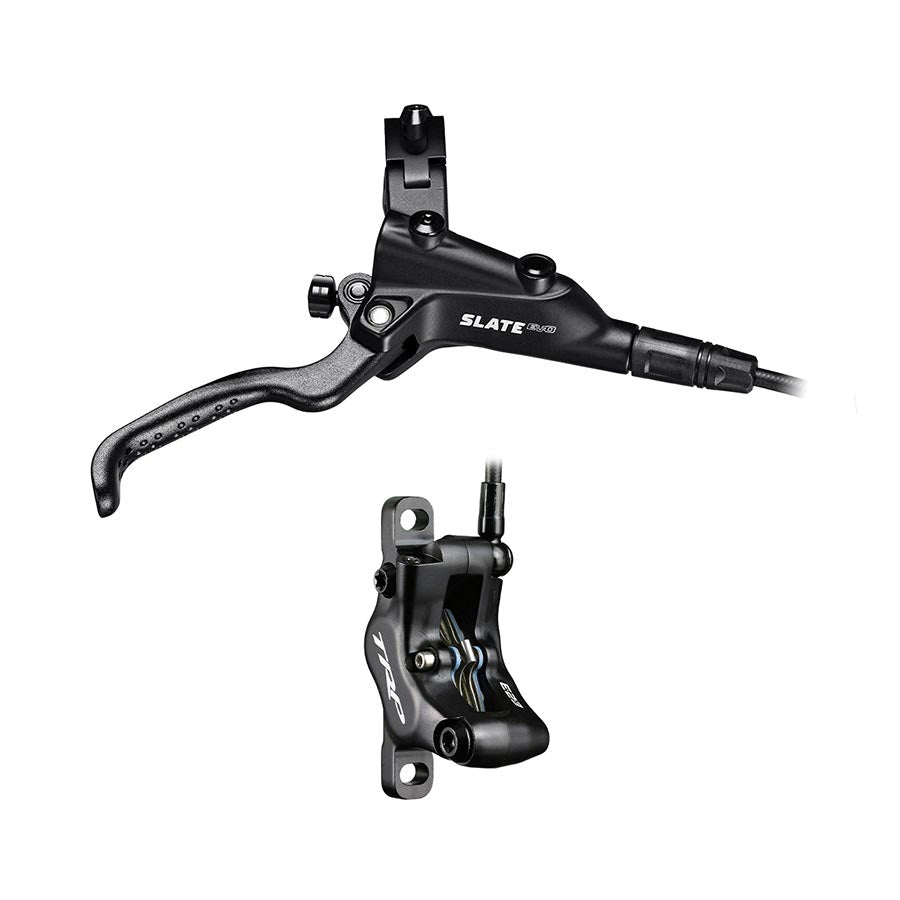

Born from technology proven in World Cup DH and tuned for the demands of Aggressive XC, Trail and E-MTB’s bikes, the Slate EVO takes modulation and braking power to an entirely new level of control.
4-Piston caliper
Replaceable ergonomic lever blade (200975-01)
10mm internal brake lever piston
Adjustable lever reach
Shifter adapters for I-Spec B, I-Spec EV, TRP and MMX
Hinged lever clamp
Stainless steel pistons
5mm brake hose
Made for 2.3mm thick rotors
Not compatible with Metallic brake pads
Top loading pad design
Banjo hose connection
Attributes
Fluid
Mineral oil
Brake Material
Aluminum
Brake Weight
307g
Caliper mount
Post mount
Disc Diameter
Not included
Hydraulic Hose Length
1900mm
Lever Blade Material
Alloy
Pistons
4
Primary Color
Black
Shift Lever Comp.
W/ Adapters (not included)
