Product Description
Overview

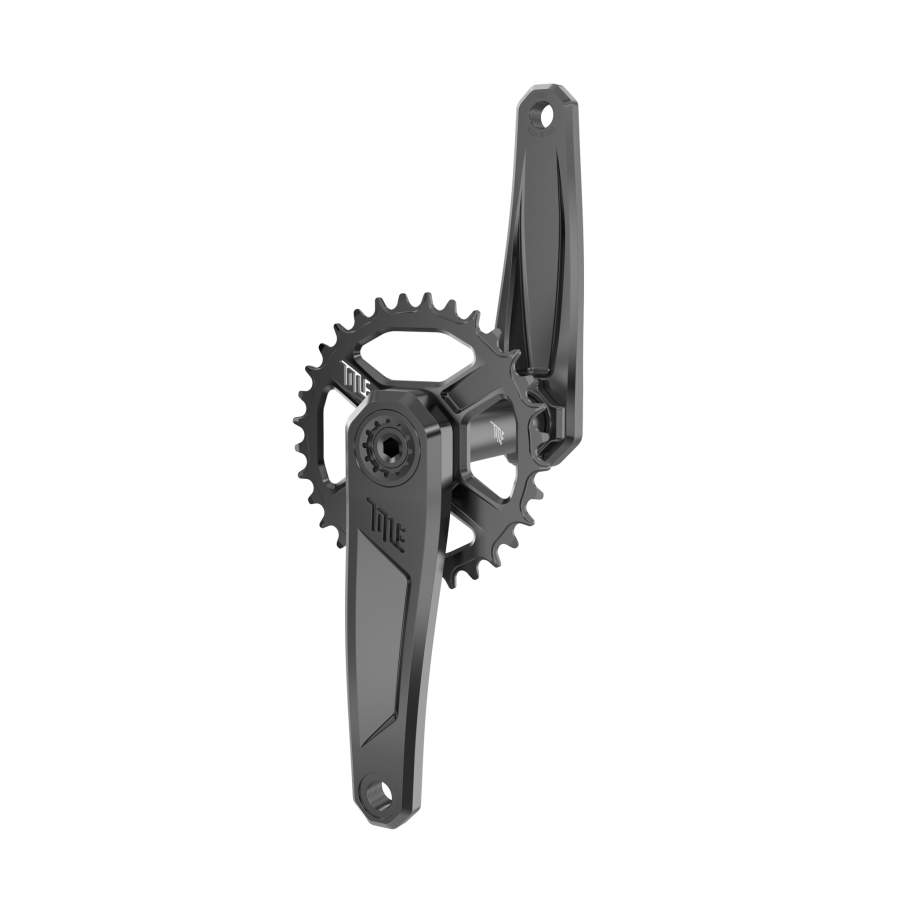

The Title CR1 is a modular aluminum crankset built so one set of arms can follow you from bike to bike. You pick the arms, then add the CR1 spindle that matches your frame and the chainring that matches your drivetrain. Swap the spindle and the same arms go from a dirt jumper to an enduro rig or a downhill bike.
The CR1 has passed EFBE TRI-TEST GR testing and is certified for enduro, freeride and downhill riding.
Features and specifications
- Three-piece design with a 29mm spindle diameter
- Arms machined from 7075-T6 aluminum
- Aluminum preload adjuster
- Lengths: 155mm, 160mm or 165mm
- Finish: matte black anodized or chrome
- Chainring mount: SRAM 8-bolt direct mount only
- Bottom bracket: SRAM DUB 29mm only (not included)
- Sold as a pair of arms; CR1 spindle and chainring sold separately
Which spindle do I need?
Spindle choice depends on your frame spacing and drivetrain. As a general guide:
-
130mm: dirt jump and non-Boost bikes
-
136mm: most modern trail and enduro bikes with Boost spacing (required for SRAM T-Type)
-
145mm: downhill bikes
When in doubt, check your bike maker's specifications for spacing and chainline, or ask us.
Chainring compatibility
-
SRAM T-Type: SRAM T-Type 12-speed drivetrains only
-
Shimano HG12: Shimano HG12 12-speed chains (XTR CN-M9100/M9200, XT CN-M8100/M8200, SLX CN-M7100/M7200)
-
Regular: most 9 to 12 speed drivetrains: all SRAM 9 to 12 speed, Shimano and KMC 9 to 11 speed, and single speed
- Half-link chains are not compatible
