Built for those that color outside the lines.
We are excited to re-introduce one of the most legendary bikes in our history, the Bottlerocket! Just like the original model, the all-new Bottlerocket was designed around the progression of trail building and the culture of freeride. The 100% purely freeride focused model is proudly dual 27.5 specific, and the same frame can be run at 180mm or 200mm rear travel, with single crown and dual crown builds. The alloy frame has multiple adjustment options allowing riders to get the exact feel they are looking for, making it ready for huge hits, surfing scree, zesty bike park lines, and anywhere else that inspires you. Built in collaboration with our freeride athletes, this bike is 100% for riders, by riders.
Single Crown
This long travel slopestyle rig's only limitation is your imagination. No trick, line or zone is inaccessible to the 180mm/180mm travel Bottlerocket. Equipped with a dropper post and wide range cassette, you can easily spin up for your favorite local lap or remote mission to backcountry scree.
Specs
FRAME SPECIFICATIONS
GENERAL SPECS
FRAME MATERIAL
Alloy
WHEEL SIZE
27.5"
SIZES
SM, MD, LG, XL
COMPONENT COMPATIBILITY
FORK OFFSET
37-51mm
FORK AXLE-TO-CROWN
577-589mm (Includes Headset)
HEADSET (TOP)
44mm Zero Stack (ZS44)
HEADSET (BOTTOM)
56mm Zero Stack (ZS56)
BB
73mm BSA Threaded
ISCG TABS
ISCG05
CHAINRING MAXIMUM
38 Tooth
CHAINLINE
55mm Standard (With Guide) 52mm Optional (Without Guide)
REAR BRAKE MOUNT
Post Mount 200mm 223mm Max Rotor Size
DERAILLEUR HANGER
SRAM UDH
REAR AXLE
Transition 148mm Axle For UDH (TRB-HAX)
SEAT CLAMP
37mm
SEATPOST DIAMETER
31.6mm
SEATPOST INSERTION DEPTH
SM: 210mm MD: 235mm LG: 270mm XL: 290mm
NOTES
Optional +5mm, +10mm Dropouts & Brake Mounts Sold Separately
SUSPENSION SPECS
FRONT TRAVEL
180mm (Single Crown) 200-203mm (Dual Crown)
REAR TRAVEL
180mm (70mm Stroke) 203mm (75mm Stroke)
SHOCK SIZE
225mm x 70-75mm
SHOCK HARDWARE
Trunnion Mount Top 30mm x 8mm Bottom
Geometry
BOTTLEROCKET GEOMETRY
MEASUREMENT
SM
MD
LG
XL
HIGH
LOW
HIGH
LOW
HIGH
LOW
HIGH
LOW
A.REACH
425
421
450
446
475
471
500
496
B.STACK
607
610
616
619
625
628
625
628
C.EFFECTIVE TOPTUBE LENGTH
538
533
573
568
606
601
638
633
D.SEATTUBE LENGTH
360
390
420
440
E.EFFECTIVE SEATTUBE ANGLE
79.4
79.0
78.7
78.4
78.2
77.8
77.7
77.3
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE
600
660
720
780
ACTUAL SEATTUBE ANGLE
72.0
71.6
72.0
71.6
72.0
71.6
72.0
71.6
SEATTUBE OFFSET AT BOTTOM BRACKET
78.2
78.2
78.2
78.2
F.HEADTUBE LENGTH
100
110
120
120
G.HEADTUBE ANGLE
64.0
63.6
64.0
63.6
64.0
63.6
64.0
63.6
H.CHAINSTAY LENGTH
435
435
435
435
I.WHEELBASE
1191
1220
1249
1279
J.BOTTOM BRACKET DROP (REAR)
15
20
15
20
15
20
15
20
K.ESTIMATED BOTTOM BRACKET HEIGHT
340
335
340
335
340
335
340
335
Build Specs

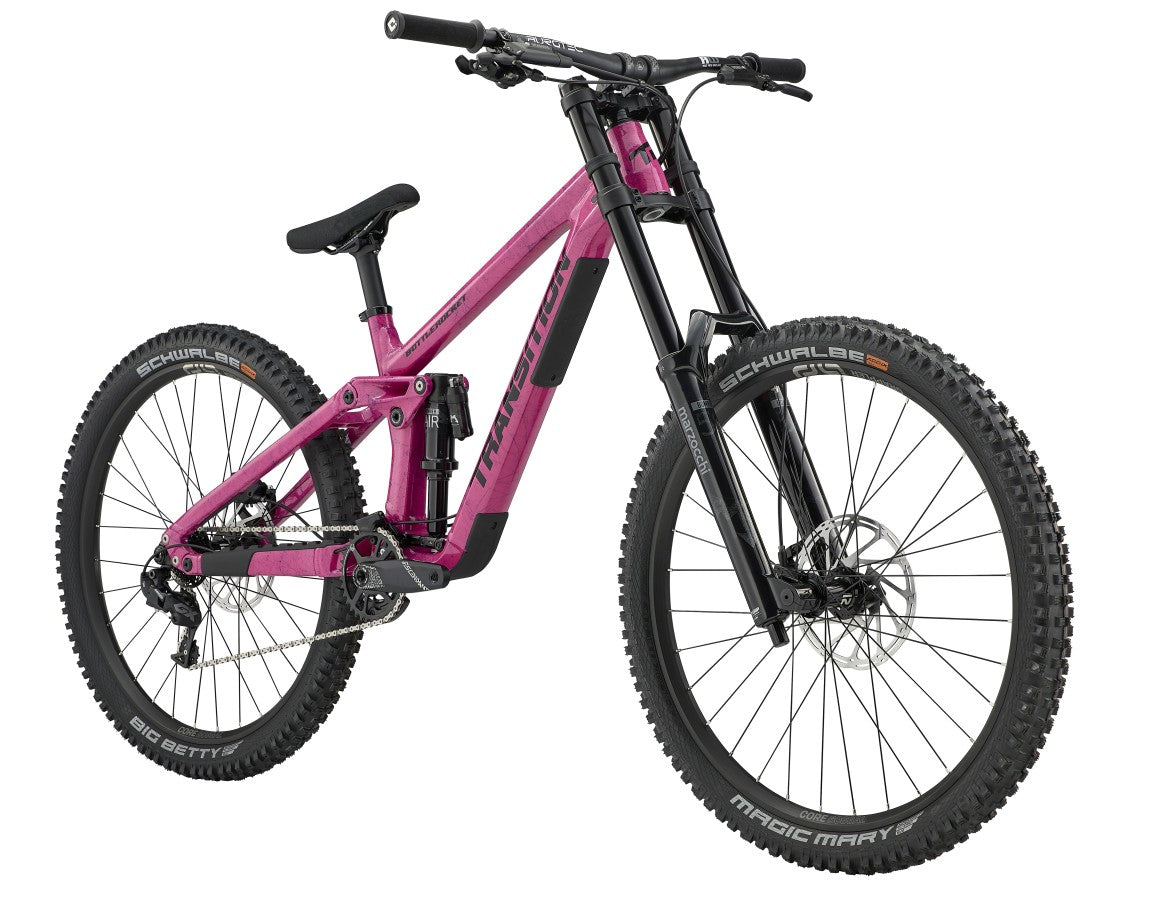

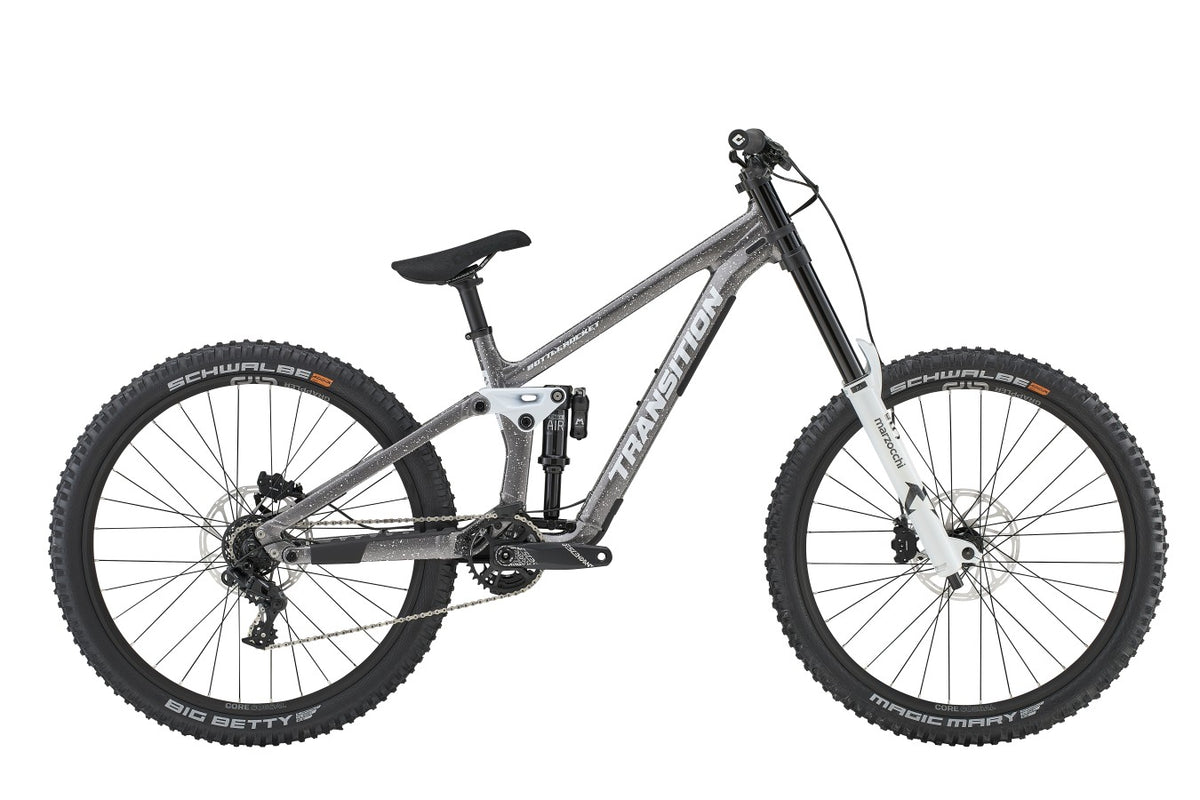

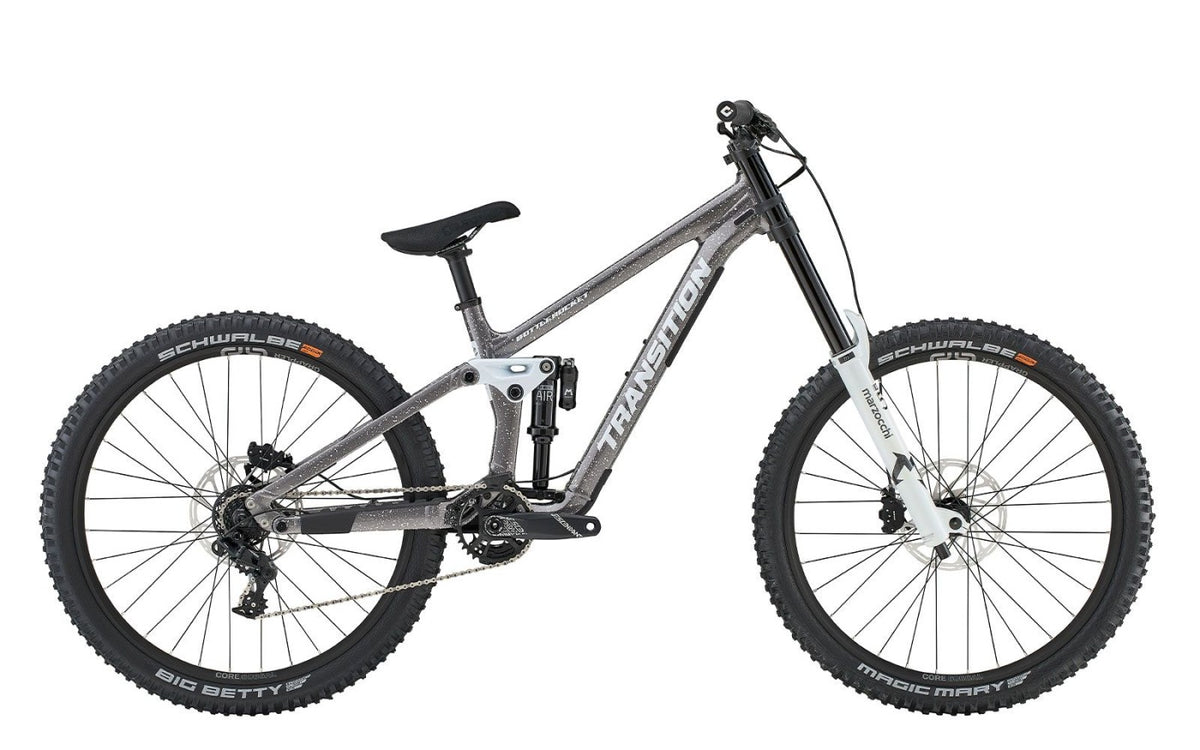

BOTTLEROCKET DUAL CROWN — SPECIFICATIONS
COMPONENT
SPECIFICATION
FRAME
Bottlerocket Alloy 200mm
WHEEL SIZE
27.5"
REAR SHOCK
Marzocchi Bomber Air (225x75mm)
FORK
Marzocchi Bomber 58 (203mm)
HEADSET
FSA No.57E
STEM
RaceFace Chester 35 Direct Mount (50mm)
HANDLEBAR
Burgtec Ride High Alloy — SM/MD (780x20mm) / LG/XL (800x30mm)
GRIPS
ODI Longneck V2.1 Lock On
SADDLE
Burgtec Cloud Boost
SEATPOST
Trans-X SP66
BRAKES
SRAM Maven Base
ROTORS
SRAM Centerline (203 / 200mm)
SHIFTER
SRAM GX DH 7sp
DERAILLEUR
SRAM GX DH Medium Cage
CASSETTE
SRAM PG 720 (11-25t)
CHAIN
SRAM PC 1130
CRANK
SRAM Descendent DUB (34t / 165mm)
CHAINGUIDE
e13 Vario Chainguide – Enduro
RIMS
E*Thirteen Grappler Core
SPOKES
Pillar Straight Gauge
HUBS
Novatech D951SB / D902SB
TIRE / FRONT
Schwalbe Magic Mary Super Gravity, Ultra Soft (2.4)
TIRE / REAR
Schwalbe Big Betty Super Gravity, Soft (2.4)
INCLUDED
Tubeless Valves & Sealant
COLOR OPTIONS
Snowstorm Disco Flamingo
WEIGHT
39.1 lbs / 17.75 kg (Size MD)
Need help choosing the right product?
Our team of riders and experts will be pleased to help you.
Specs
Size
Metric
Imperial
This is a size chart.
Geo
Metric
Imperial
Geometry of this bike.
Reach
Horizontal measurement taken from the middle of the bottom backet to the middle of the headtube.
Stack
Vertical measurement taken from the middle of the bottom bracket to the middle of the headtube.
Effective Top Tube
Horizontal measurement taken from the middle of the seatube to the middle of the headtube.
Actual Top Tube
True length of the top tube taken from the seatube along the toptup to the headtube.
Standover Height
Vertical measurement taken from the ground to the the middle of toptube.
Seat Tube Angle
Angle of the seatube.
Seat Tube Length
Lenght of the seat tube taken from the bottom bracket to the top of the seat tube (the measure is taken alongside the seat tube)
Headtube Angle
Angle of the headtube.
Headtube
Vertical lenght of the headtube.
Chainstay
Horizontal measurement taken from rear axle to the bottom bracket.
Wheelbase
Horizontal measurement between the two wheel axles.
BB Height
Vertical measurement taken from the ground to the bottom bracket (Never taken at sag).
BB Drop
Vertical measurement between the height of the axles and the height of the bottom bracket.
