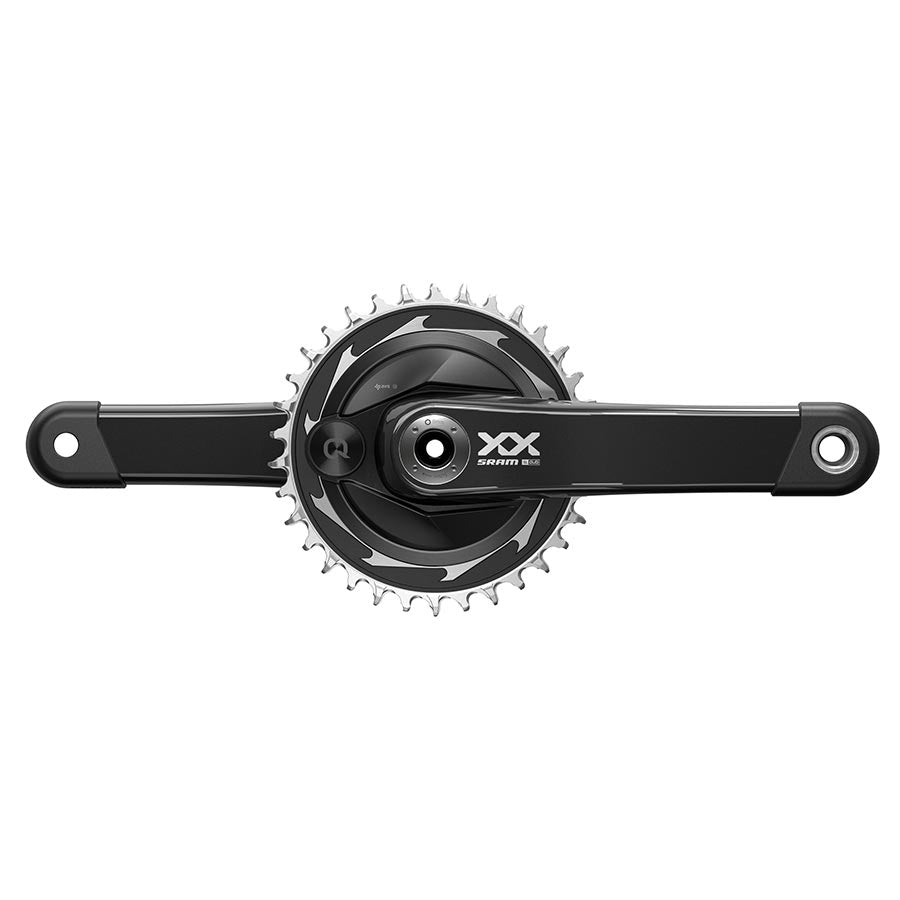

The XX SL Eagle AXS Transmission Power Meter Crankset combines the XX SL crank arm with an integrated power meter. All-new spider design uses a proprietary chainring mount system which reduces weight without compromising reliability. Dual sided power measurement calculates total watts. It is also compatible with the Flight Attendant system, allowing for total connectivity between all AXS enabled components.
Compatible with Flight Attendant.
+/- 1.5% accuracy.
User replaceable CR2032 battery 200-hour battery life.
Bluetooth low energy technology and ANT+ wireless data transfer.
AxCad -- no cadence magnet required.
Waterproof (IPX7 waterproof to 1 meter for 30 minutes).
SRAM Model ID: FC-XX-SLP-D1
Attributes
BCD
Thread Mount
BB Inclusion
No
Chainline
55mm
Teeth
34
Connectivity
ANT+, BT LE
Crank Spindle Diameter
28.99mm
Interface
DUB
Crankset Material
Carbon
Pedals Thread
9/16''
Primary Color
Black
Speed
12
Drivetrain Spacing
Boost
